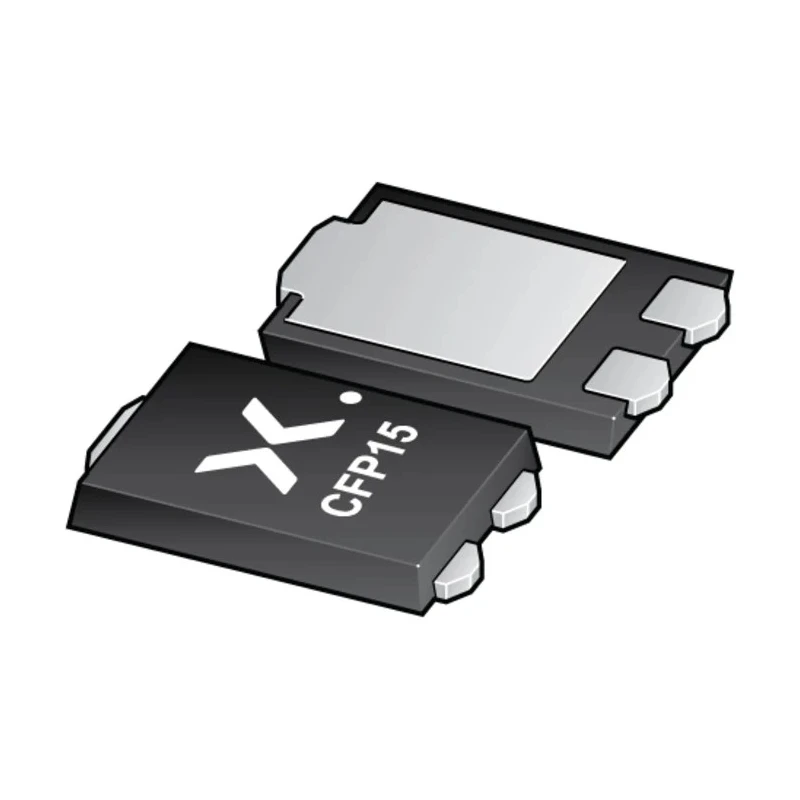

Nexperia 45 V 4.2 A Schottky Diode Surface Mount 3-Pin CFP15 PMEG060V030EPDZ

Nexperia PMEG060V030EPDZ is a high-efficiency 45 V, 4.2 A Schottky diode designed for surface mount applications in a 3-pin CFP15 package. It provides excellent performance in voltage-sensitive and power-conversion circuits due to its low forward voltage and high current capability.

The diode’s common cathode Schottky barrier design provides extremely low forward voltage (530 mV typical), which minimizes power dissipation and heat generation during operation. This makes it highly suitable for use in DC-to-DC converters, power supplies, and freewheeling applications.

With an operating temperature range from -55°C up to 175°C and compliance with the AEC-Q101 automotive standard, this diode can be confidently deployed in automotive electronics, industrial, and commercial electronic systems requiring robust performance under temperature stress and electrical surges.

The device features a peak reverse repetitive voltage of 45 V and a peak non-repetitive surge forward current of 120 A, allowing it to handle transient and overload conditions effectively. The fast reverse recovery time of 12 ns enables efficient switching operations, particularly in switch mode power supplies and low power consumption applications.

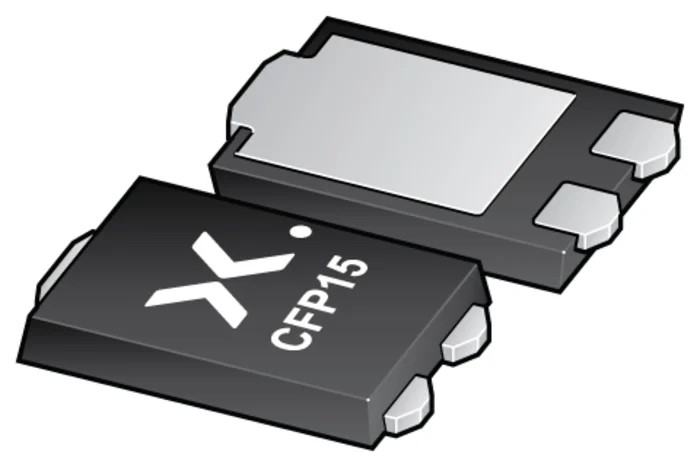

The diode's compact CFP15 surface-mount package with dimensions 5.8 mm length, 4.3 mm width, and 0.78 mm height helps save PCB space and supports modern assembly techniques. Its integrated guard ring provides enhanced stress protection, improving long-term reliability.

Applications include automotive electronics, industrial power systems, high efficiency DC/DC converters, and protective circuits for polarity reversal. Explore more semiconductor components and Schottky diodes at EnvMart for reliable sourcing and technical support.
