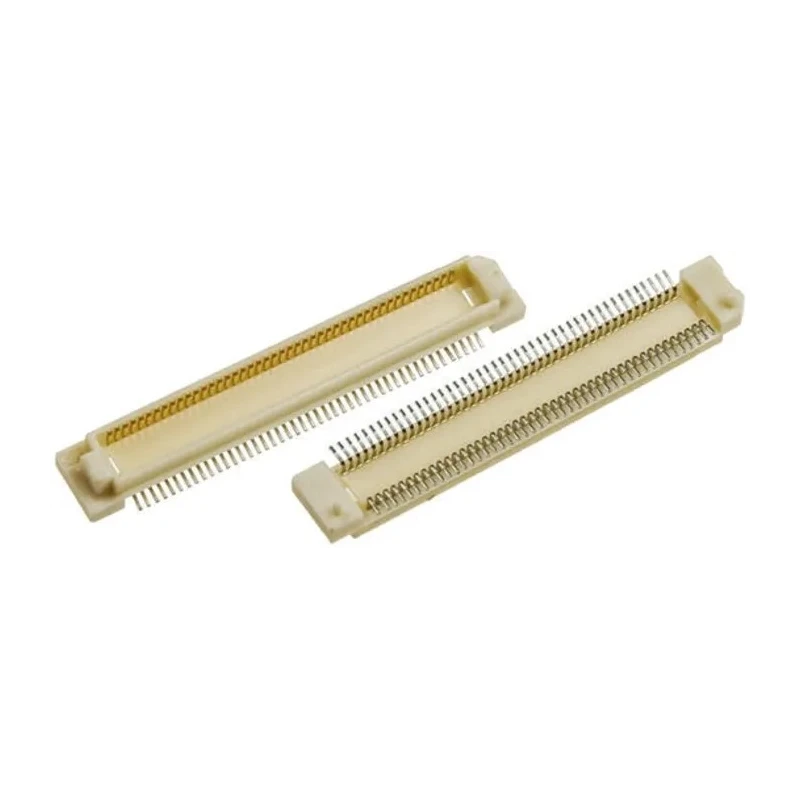

Hirose FunctionMAX FX8 Series Straight Surface PCB Header, 100 Contact(s), 0.6 mm Pitch, 2 Row, Shrouded FX8-100P-SV1(91)
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 100V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 400mA |
| Model | FX8-100P-SV1(91) |
| Mount Type | Surface |
| Housing Material | Polyphenylene Sulphide |
| Contact Material | Phosphor Bronze |
| Series | FunctionMAX FX8 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.6mm |
| Contact Plating | Gold |
| Number of Contacts | 100 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- High-speed transmission capability up to 3.125 Gbit/s.
- 100 male contacts arranged in 2 rows with 0.6 mm pitch.
- Shrouded design enhances mating durability and protection.
- Constructed from polyphenylene sulphide housing and phosphor bronze contacts plated with gold.
- Surface mount type suitable for PCB board-to-board connections.
- Operating temperature range from -55°C to 85°C.
- Supports a voltage rating of 100 V and current rating of 400 mA.
- Built-in guide ribs allow +/- 0.6 mm misalignment for easy mating.
Product Description
The Hirose FunctionMAX FX8 Series Straight Surface PCB Header model FX8-100P-SV1(91) is a high-performance board-to-board connector designed for demanding electronic applications. Featuring 100 male contacts arranged in two rows with a fine 0.6 mm pitch, this connector offers a compact footprint ideal for dense PCB layouts. Its shrouded housing constructed from durable polyphenylene sulphide provides mechanical protection and ensures reliable connection integrity.
Designed for surface mount assembly, the FX8-100P-SV1(91) supports high-speed differential signal transmission up to 3.125 Gbit/s with excellent signal integrity. The gold-plated phosphor bronze contacts feature an optimized spring deflection design to maintain consistent electrical contact over repeated mating cycles.
The connector accommodates a voltage rating of 100 V and a current rating of 400 mA, with an operating temperature range extending from -55°C to 85°C, making it suitable for various industrial and commercial environments. Built-in guiding ribs and alignment posts on the PCB ensure precise mating while offering a self-alignment tolerance of ±0.6 mm to prevent damage during assembly.
Common applications for this connector include servers, broadcast equipment, industrial machinery, medical devices, and point-of-sale terminals. The FunctionMAX series is engineered to meet the evolving needs of high-performance electronics with robust mechanical and electrical properties.
High-speed transmission capability of 3.125 Gbit/s. 100 contacts in a 2-row, 0.6 mm pitch shrouded package. Polyphenylene sulphide housing with gold-plated phosphor bronze contacts. Surface mount technology suitable for automated PCB assembly.
Operating temperature range from -55°C to 85°C. Electrical rating of 100 V and 400 mA current. Self-alignment features ±0.6 mm tolerance and PCB alignment posts. Reliable spring deflection contact design for durability. Ideal for industrial, medical, and commercial electronics.
Manufactured in Japan ensuring high-quality standards. Explore the comprehensive range of Hirose connectors and components at EnvMart for your industrial and electronic design needs.
