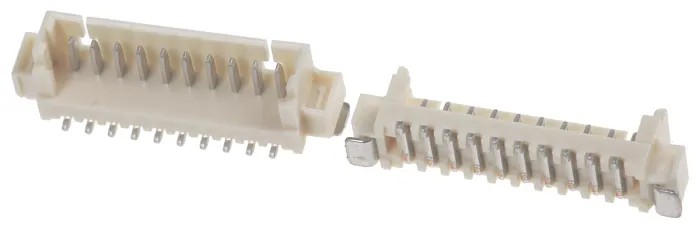

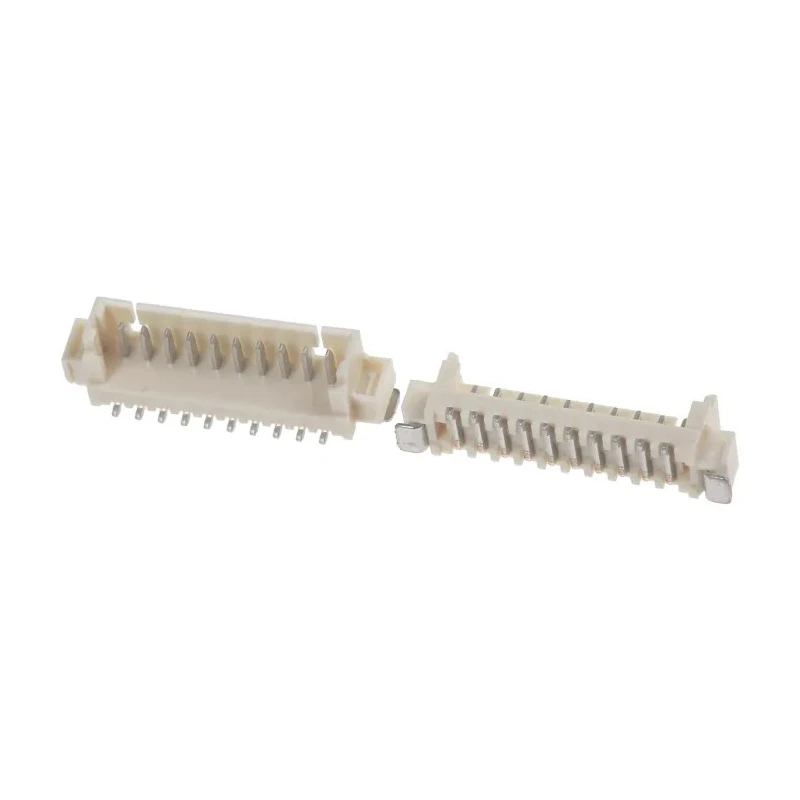

Molex PCB Header 10 Contact(s) 1.25 mm Pitch 1 Row Shrouded Surface Mount 53398-1071

Molex 53398-1071 PCB Header is a robust and compact connector designed for reliable wire-to-board connections in demanding industrial and electronic environments. Featuring 10 male contacts arranged in a single row with a 1.25 mm pitch, this shrouded surface mount header ensures space-saving design alongside secure connections.

The header is constructed with a nylon housing and phosphor bronze contacts plated with tin, combining excellent mechanical strength with corrosion resistance suitable for extended operating temperatures from -40°C to 105°C. It supports up to 1 amp current per contact and handles up to 125 V voltage, making it a dependable component for telecommunications, industrial automation, and medical technology applications.

The 0.6 mm tail pin length and solder termination type provide strong PCB retention and reliable electrical contact. The shrouded design protects against accidental unmating and enhances mechanical stability during regular maintenance. The connector system includes a friction locking mechanism for secure mating and strain relief solder tabs on SMT versions, preventing joint cracking and mishandling damage.

Compact 1.25 mm pitch for space-efficient PCB layouts. Supports 1 A current per contact to handle power requirements. Durable nylon housing with tin-plated phosphor bronze contacts. Operating temperature range of -40°C to 105°C for diverse environments.

Shrouded male contacts for protection and secure connection. Surface mount type ensures easy integration on circuit boards. 30 mating cycle durability rating for long-term use. Low weight reduces mechanical strain on PCBs.

Suitable for telecommunications, industrial automation, and medical devices.

Packaged for convenience and engineered for precision, the Molex 53398 Series header provides reliable interconnection solutions for various industrial, manufacturing, and electronics assembly operations. Explore more connectors and electronic components in the Molex range on EnvMart.
