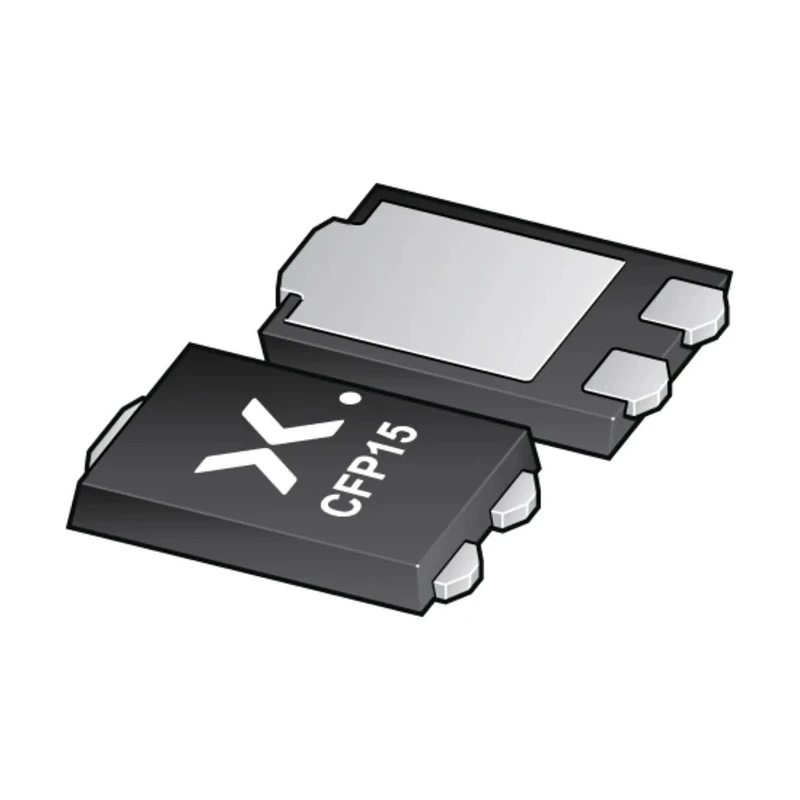

Nexperia 60 V 14 A Schottky Diode Surface-Mount CFP15 Package PMEG060V100EPDAZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.78mm |
| Length | 5.8mm |
| Model | PMEG060V100EPDAZ |
| Width | 4.3mm |
| Mount Type | Surface |
| Series | PMEG060V100EPD |
| Maximum Operating Temperature | 175°C |
| Package Type | CFP15 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 14A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 700μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 210A |
| Maximum Forward Voltage Vf | 560mV |
| Peak Reverse Recovery Time trr | 33ns |
| Average forward current | IF(AV) ≤ 10 A |
| Reverse voltage | VR ≤ 60 V |
Key Features
- The diode supports a maximum continuous forward current of 14 amperes.
- It has a peak reverse repetitive voltage rating of 60 volts.
- The package dimensions are compact with length 5.8 mm, width 4.3 mm, and height 0.78 mm.
- Features a peak non-repetitive forward surge current capacity of 210 amperes.
- Operates at temperatures ranging from -55°C to 175°C for robust performance.
- Incorporates a common cathode diode configuration suitable for power applications.
- Low forward voltage of 560 millivolts minimizes power losses.
- Equipped with a peak reverse recovery time of 33 nanoseconds.
Product Description
The Nexperia PMEG060V100EPDAZ is a medium power Schottky barrier rectifier offered in a CFP15 (SOT1289) surface-mount plastic package. It is engineered for applications requiring low forward voltage drop and high efficiency to extend battery life and improve energy savings.
This diode supports a maximum continuous forward current of 14A and a peak reverse repetitive voltage of 60V. Its robust design includes an integrated guard ring for stress protection and enhanced durability under demanding conditions. The small and thin package measures only 5.8 mm in length, 4.3 mm in width, and 0.78 mm in height, enabling space-saving PCB layouts.
With a typical forward voltage of 560 mV and a peak non-repetitive forward surge current of 210A, it is suitable for applications that require coping with transient high currents. The device operates over an extended temperature range from -55°C up to 175°C, making it appropriate for harsh industrial and automotive environments.
Compliance with the automotive AEC-Q101 standard ensures this Schottky diode meets stringent automotive quality and reliability criteria. Its clip-bonding technology combined with effective heat sinking enhances its power handling capabilities.
This diode is ideal for use in industrial power supplies, automotive electronics, telecom equipment, and other applications demanding efficient rectification with minimal power loss.
The diode supports a maximum continuous forward current of 14 amperes. Package type CFP15 offers a compact 3-pin surface-mount configuration. Operating temperature range from -55°C to 175°C ensures reliability. Peak reverse recovery time of 33 nanoseconds offers fast switching performance.
Low forward voltage of 560 mV reduces conduction losses. Certified to automotive standard AEC-Q101 for quality assurance. Explore more semiconductor and diode options at EnvMart for reliable electronics components and solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 14 amperes.
This model has a peak reverse repetitive voltage rating of 60 volts.
The package dimensions are 5.8 mm in length, 4.3 mm in width, and 0.78 mm in height.
It operates over a temperature range from -55°C to 175°C.
The diode has a peak non-repetitive forward surge current capacity of 210 amperes.
The typical forward voltage drop is 560 millivolts.
The peak reverse recovery time is 33 nanoseconds.
This diode features a common cathode configuration.
Yes, it is compliant with the automotive AEC-Q101 standard.
This model uses a surface mount type.
The average forward current rating is IF(AV) ≤ 10 A.
The reverse voltage rating is VR ≤ 60 V.
