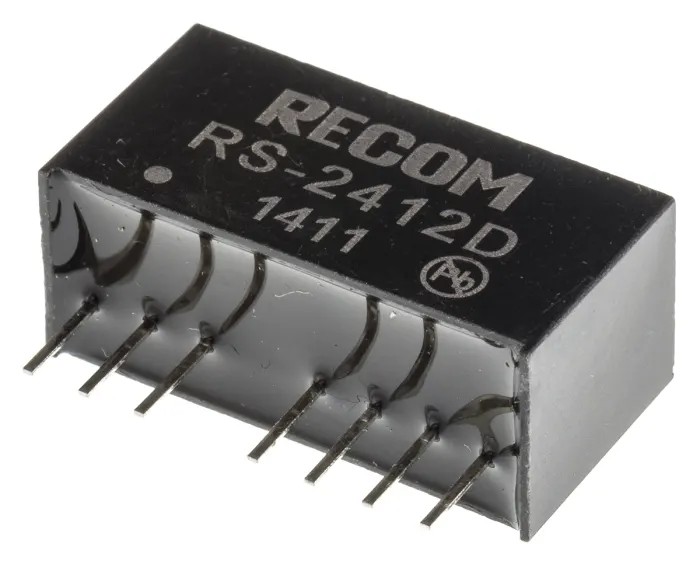

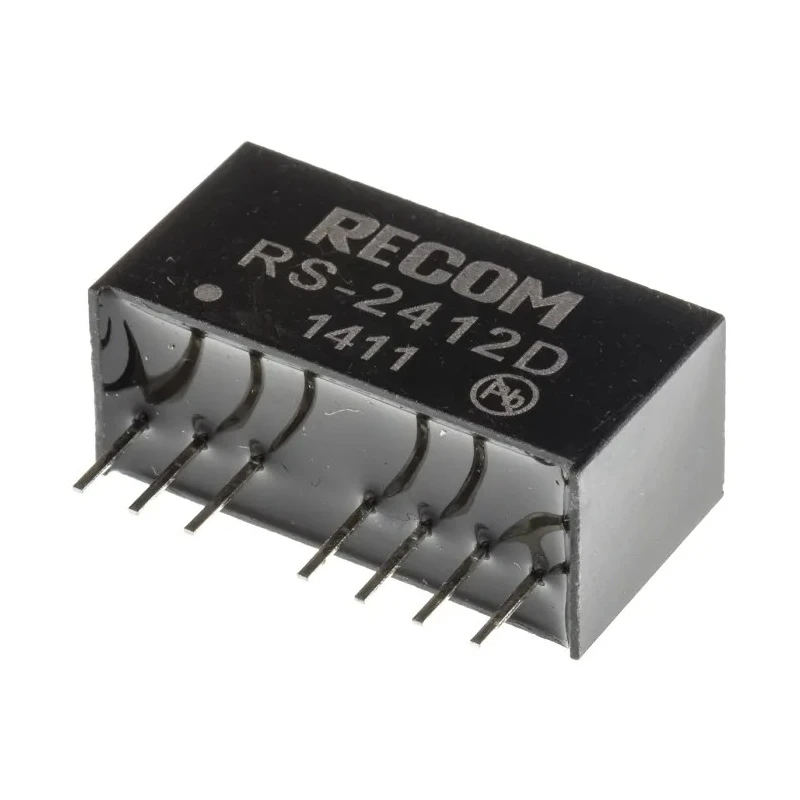

Recom DC/DC Converter 12V DC 83mA 36V DC Input 18V Input 2W Through Hole Mount RS-2412D

Recom RS-2412D DC/DC Converter offers a robust solution for converting unregulated DC input voltages between 18V and 36V into a stable and regulated 12V DC output at 83mA with a maximum power output of 2W. Designed as a SIP package with through-hole mounting, this converter ensures straightforward installation into printed circuit boards.

The unit provides electrical isolation rated at 500V AC, enhancing safety by protecting circuits against surges and ground loops. It maintains a typical output voltage accuracy of ±2%, supporting precise power delivery critical in sensitive electronic applications. The converter is capable of operating continuously in demanding temperature environments ranging from -40°C up to +85°C, making it suitable for industrial, telecommunications, and medical use cases where environmental conditions vary widely.

Additional features include continuous short-circuit protection that safeguards the device and connected components from damage due to input faults. The converter achieves an efficiency of approximately 83%, optimizing energy consumption and minimizing heat dissipation. A Mean Time Between Failures (MTBF) of 1,398,000 hours reflects the product's reliability for long-term deployments.

This DC/DC converter is widely used in telecommunications centers, factory automation systems, and medical devices, providing stable power supply solutions where consistent voltage regulation and electrical isolation are paramount.

Provides a regulated 12V DC output at 83mA with ±2% typical accuracy. Supports a wide input voltage range of 18V to 36V DC for versatile usage. Features 500V AC electrical isolation for enhanced safety and protection. Compact SIP package with through-hole mount ensures easy PCB integration.

Operates reliably in harsh environments from -40°C to +85°C. Delivers efficient power conversion with 83% efficiency to reduce energy loss. Includes continuous short-circuit protection for fault resilience. MTBF rating of 1,398,000 hours indicating long-term reliability.

Ideal for telecommunications, factory automation, and medical device applications.

For industrial, telecommunications, laboratory, and medical applications requiring reliable and efficient DC power conversion, the Recom RS-2412D stands as a dependable component. Discover more DC/DC Converters in our catalog to suit diverse power supply needs.
