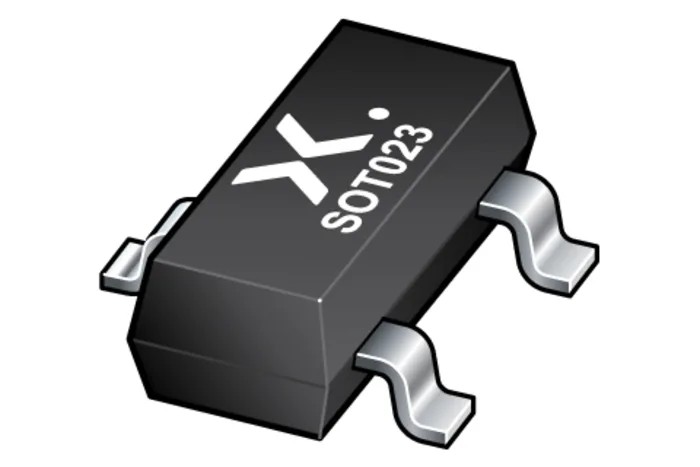

Nexperia Bipolar Transistor BCW60D,215 100 mA NPN 32 V 3-Pin SOT-23 BCW60D,215

Name: Nexperia Bipolar Transistor BCW60D,215 100 mA NPN 32 V 3-Pin SOT-23 BCW60D,215
Brand: Nexperia
SKU: 214882
Price: 0.04 USD
Availability: InStock



Category Bipolar Transistors Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	1mm
Length	2.9mm
Model	BCW60D,215
Width	1.3mm
Mount Type	Surface
Series	BCW60
Maximum Operating Temperature	150°C
Package Type	SOT-23
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	3
Maximum Collector Emitter Voltage Vceo	32V
Minimum DC Current Gain hFE	100
Transistor Polarity	NPN
Maximum Emitter Base Voltage VEBO	5V
Maximum Collector Base Voltage VCBO	32V
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	250mW
Maximum DC Collector Current Idc	100mA
Transistor Configuration	Single
Maximum Transition Frequency ft	250MHz

Key Features

This transistor supports a maximum DC collector current of 100 mA.
It can handle a maximum collector-emitter voltage of 32 V.
Package type is surface mount SOT-23, ideal for compact PCB designs.
It offers a minimum DC current gain (hFE) of 100 for effective amplification.
Maximum power dissipation is 250 mW, enabling usage in low power circuits.
Operating temperature ranges from -65°C to 150°C, suitable for harsh environments.
Transition frequency of 250 MHz ensures high-speed switching performance.
The transistor has an NPN polarity with single transistor configuration.

Product Description

Nexperia BCW60D,215 bipolar transistor is a compact and highly reliable NPN transistor designed for switching and amplification in electronic circuits. With a maximum collector current of 100 mA and collector-emitter voltage rating of 32 V, it suits various low power applications in industrial, automotive, and consumer electronics.

This transistor is housed in a small SOT-23 surface mount package, enabling excellent space saving on printed circuit boards. Its specification includes a minimum DC current gain of 100 and maximum power dissipation of 250 mW, making it efficient for signal processing roles.

Operating over a wide temperature range of -65°C to +150°C, the BCW60D,215 meets rigorous automotive AEC-Q101 standards and RoHS compliance, ensuring durability and environmentally responsible manufacturing. The high transition frequency of 250 MHz supports high-speed switching tasks.

Typical usage scenarios include small-signal amplification and switching in industrial controls, automotive electronics, communication devices, and instrumentation systems. This transistor supports a maximum DC collector current of 100 mA.

It can handle a maximum collector-emitter voltage of 32 V. Package type is surface mount SOT-23, ideal for compact PCB designs. It offers a minimum DC current gain (hFE) of 100 for effective amplification. Maximum power dissipation is 250 mW, enabling usage in low power circuits.

Operating temperature ranges from -65°C to 150°C, suitable for harsh environments. Transition frequency of 250 MHz ensures high-speed switching performance. The transistor has an NPN polarity with single transistor configuration.

It complies with RoHS and is AEC-Q101 automotive standard qualified. The compact dimensions are 2.9 mm length, 1.3 mm width, and 1 mm height.
