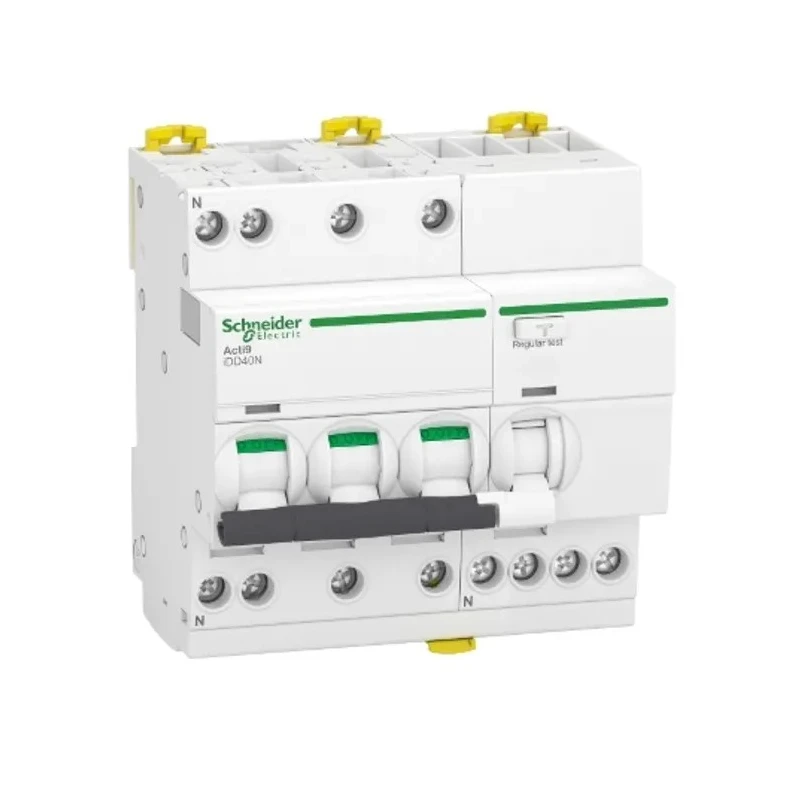

Schneider Electric Residual Current Circuit Breaker with Overload Protection Acti9 iDD40N Series, 40A Current A9DA7740
Specifications
| Country of Origin | Spain |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Height | 93mm |
| Model | A9DA7740 |
| Depth | 73mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Current Rating | 40A |
| Series | Acti9 iDD40N |
| Terminal type | Tunnel |
| Breaking Capacity | 10kA |
| Number of Poles | 3 |
| Standards/Approvals | RoHS, EN/IEC 60947-2 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Trip Sensitivity | 300mA |
| Earth Leakage Protection Type | AC |
Key Features
- Equipped with a 3-pole configuration for enhanced overload and short circuit protection.
- Features a trip sensitivity of 300mA ensuring reliable earth leakage detection.
- Complies with RoHS and EN/IEC 60947-2 standards for electrical safety and performance.
- Mounts easily on DIN rail with toggle switch actuator providing ON/OFF and trip indication.
- Designed for residential and distribution applications with a breaking capacity of 10kA.
- Compact dimensions of 90mm width, 93mm height, and 73mm depth optimize panel space.
- Thermal magnetic trip unit offers instantaneous earth leakage protection with time delay.
- Capable of operating within ambient temperatures ranging from -5 to 60 °C and 95% relative humidity.
Product Description
Schneider Electric A9DA7740 Residual Current Circuit Breaker with Overload Protection from the Acti9 iDD40N series is engineered for effective protection against overcurrent, short circuits, and earth leakage in electrical circuits. Rated for 40A current and 400V AC voltage, this 3-pole RCBO features a thermal magnetic trip mechanism with a trip sensitivity of 300mA, ensuring rapid response to fault conditions.
The device is designed for easy DIN rail mounting and facilitates system control via its toggle switch, providing clear ON/OFF and trip indication. Its compact form factor (90mm wide, 93mm high, 73mm deep) fits seamlessly within electrical distribution panels.
Certified to meet strict international standards including RoHS and EN/IEC 60947-2, the breaker ensures dependable performance in residential and commercial installations. Its breaking capacity of 10kA accommodates transient fault currents, providing reliable circuit interruption.
The thermal magnetic trip unit incorporates a time delay for instantaneous earth-leakage protection, safeguarding personnel and equipment against electric shocks and fire risks. This breaker operates under harsh ambient conditions, tolerating up to 95% relative humidity at 55 °C and an ambient temperature range from -5 to 60 °C.
Additional features include a 4 kV impulse withstand voltage, enhancing the device’s endurance against voltage spikes, and a padlockable design to prevent unintended operation and improve safety.
3-pole RCBO for combined residual current and overload protection. 40A rated current and 300mA trip sensitivity for precise fault detection. Thermal magnetic tripping mechanism offers reliable short circuit and overload response.
Compact DIN rail mount design for easy installation in electrical panels. Certified to EN/IEC standards ensuring compliance and safety. Breaking capacity of 10kA supports high fault current interruption. Suitable for residential distribution and overcurrent protection applications.
Padlockable toggle switch enhances operational safety. Operates reliably in temperature range -5 to 60 °C and 95% humidity. Impulse withstand voltage of 4 kV for durability under electrical surges.
This Schneider Electric RCBO is ideal for industrial, residential, and commercial electrical systems requiring robust protection solutions. Explore more Schneider Electric products and related circuit breakers at EnvMart to find optimal electrical protection devices for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 40A.
It features a trip sensitivity of 300mA for effective earth leakage detection.
The breaking capacity of this unit is 10kA, allowing it to handle high fault currents.
The dimensions are 90mm in width, 93mm in height, and 73mm in depth.
It is designed for easy mounting on a DIN rail.
This model complies with RoHS and EN/IEC 60947-2 standards for electrical safety and performance.
It uses a thermal magnetic tripping mechanism for reliable short circuit and overload protection.
It operates reliably within an ambient temperature range of -5 to 60 °C.
The impulse withstand voltage is rated at 4 kV, enhancing its durability against voltage spikes.
It is designed for residential and distribution applications requiring overcurrent and earth leakage protection.
It features a toggle switch as the reset actuator, providing clear ON/OFF and trip indication.
This unit has a 3-pole configuration for combined residual current and overload protection.
