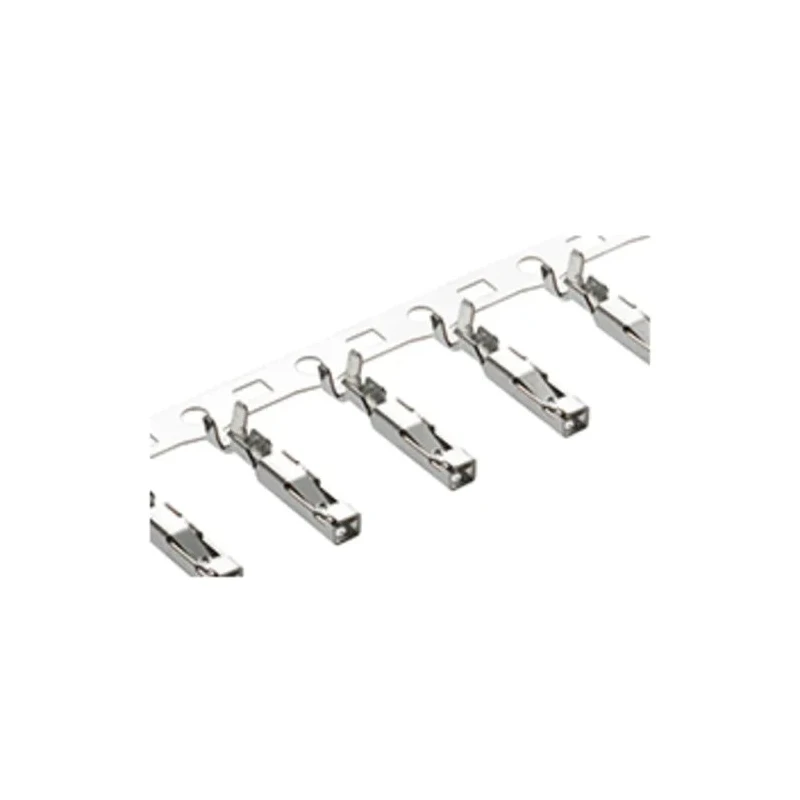

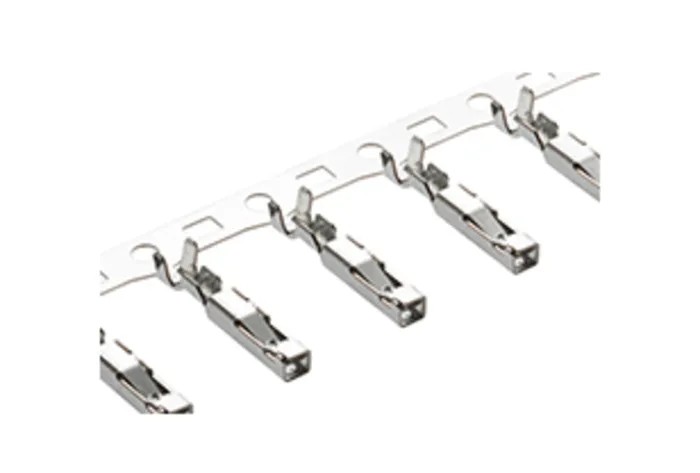

Molex Female Crimp Terminal 6A Current, 22 AWG to 18 AWG Wire Range, CP-3.3 Connector Housing Compatible 505607-0000

Molex 505607-0000 Female Crimp Terminal is a high-quality crimp contact designed for use with CP-3.3 connector housings in a variety of electronic and electrical applications. The terminal supports wire gauges ranging from 22 AWG to 18 AWG, accommodating wire cross-sectional areas between 0.3mm² and 0.9mm². It is rated to carry a current of up to 6 amperes, making it suitable for reliable signal and power connections in consumer electronics, white goods, industrial equipment, and medical devices.

The contact is crafted from copper alloy and plated with tin to ensure excellent conductivity and corrosion resistance. With a maximum contact resistance of only 20 milliohms, this terminal provides efficient electrical performance. The temperature rating spans from -40°C to 105°C, enabling usage in demanding environments without compromising performance or safety.

The termination method is crimp type, which facilitates secure mechanical and electrical connections through proper tooling with the CP-3.3 connector housing system. This design includes full keying and colour-pairing features to prevent misconnections and enhance user safety during installation.

Manufactured in Japan, the 505607-0000 series ensures a high standard of quality and reliability for industrial, laboratory, electronic component assembly, and manufacturing applications. The crimp terminal's precision and robustness make it a dependable solution for wire-to-wire connections in complex electronic systems requiring compact, efficient, and safe components.

Female crimp terminal designed for CP-3.3 connector housing compatibility. Supports wire sizes from 22 AWG (0.3mm²) minimum to 18 AWG (0.9mm²) maximum. Rated for a maximum current of 6 amperes. Contact made of copper alloy with tin plating for reliable electrical connections.

Operating temperature range from -40°C to 105°C. Low maximum contact resistance of 20 milliohms ensures minimal signal loss. Termination type is crimp style for secure and efficient wire attachment. Manufactured in Japan ensuring high quality standards.

This Molex Crimp Terminal is suited for use in electronics and electrical assemblies requiring dependable wire-to-wire connections, especially in industrial automation, instrumentation, HVAC systems, consumer electronics, and medical device manufacturing. Explore more electronics components and connectors in EnvMart's comprehensive catalog for professional-grade solutions.
