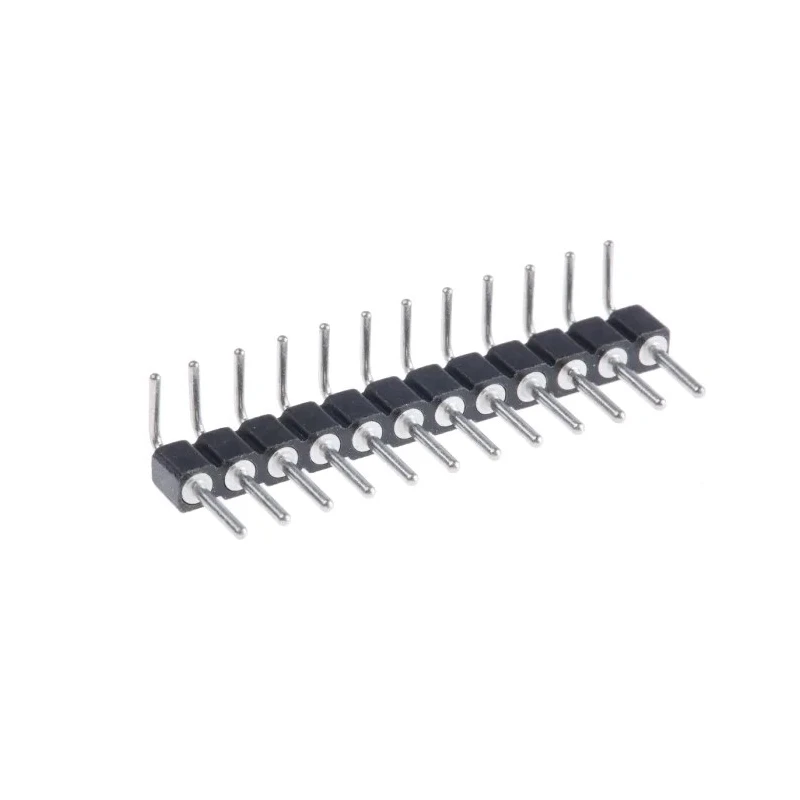

Preci-Dip 800 Series Right Angle Through Hole Pin Header, 12 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 800-80-012-20-001101

Preci-Dip 800-80-012-20-001101 is a high-quality PCB Pin Header featuring a right angle, through hole male contact configuration with a single row of 12 contacts spaced at 2.54 mm pitch. This component is designed for use in electronic assembly and PCB applications requiring secure and reliable connector solutions.

The housing is made from fibreglass reinforced polyethylene terephthalate, offering excellent strength and heat resistance. Contacts are precision-machined brass plated with tin, ensuring low resistance and robust signal integrity during operation. The connector supports a continuous current rating of 3 amperes and withstands voltages up to 150 volts, suitable for a variety of electronic devices.

Engineered for harsh conditions, it operates effectively in temperatures ranging from -55°C to 125°C, complying with UL 94V-0 safety standards to prevent fire hazards. The mounting method employs standard through hole technology with a right-angle orientation, enabling reliable PCB soldering with a tail length of 3.2 mm.

This 800 Series IC pin connector is part of Preci-Dip's range designed for industrial and commercial electronic manufacturing sectors including telecommunications, computing, and automation systems. Its unshrouded design allows easy access for soldering and enhances versatility in PCB design layouts.

Housing material is fibreglass reinforced polyethylene terephthalate for dimensional stability. Contact pins are male, made from brass, and plated with tin for corrosion resistance. Single row, right angle configuration optimizes space on circuit boards.

Rated for a maximum operating temperature of 125°C and minimum of -55°C. Supports a voltage of 150V and a current carrying capacity of 3A. Compliant with UL 94V-0 flammability standard ensuring high safety. Tail length of 3.2 mm designed for through hole soldering.

Manufactured in Switzerland, guaranteeing quality and precision engineering.

This product is ideal for industrial, manufacturing, electronics, and communications applications requiring reliable PCB connectors. It enables efficient signal and power connection in complex electronic assemblies and supports both prototype and volume production environments.
