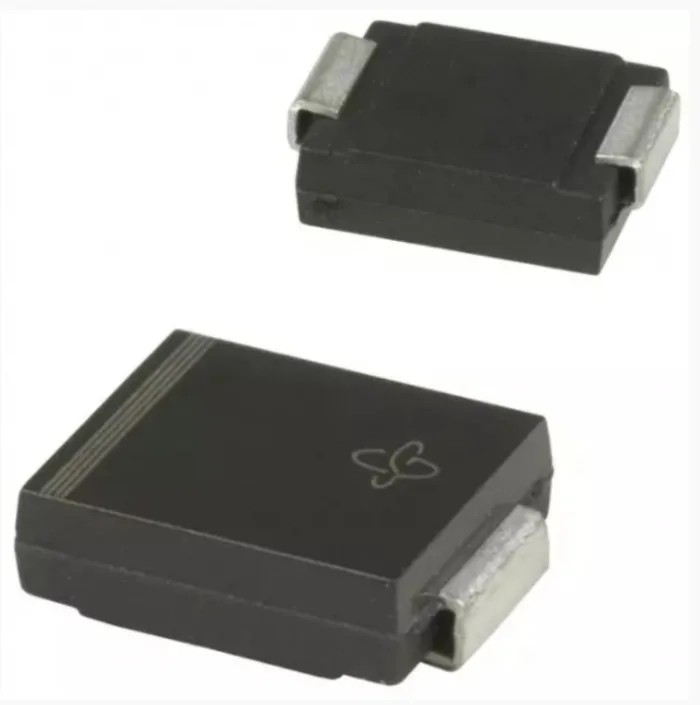

Vishay Switching Diode Single 3 A 2-Pin 400 V SMC S3G-E3/57T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.42mm |
| Length | 7.11mm |
| Model | S3G-E3/57T |
| Width | 6.22mm |
| Mount Type | Stud Mount |
| Series | S3G |
| Maximum Operating Temperature | 150°C |
| Package Type | SMC |
| Sub Type | Silicon Junction |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Diode Configuration | Single |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 1.15V |
| Peak Reverse Recovery Time trr | 2.5ns |
| Maximum Forward Current If | 3A |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 400V |
Key Features
- This diode features a maximum forward current of 3 A suitable for power applications.
- Peak reverse repetitive voltage rating is 400 V ensuring robust performance in switching circuits.
- Compact SMC package with stud mount provided for ease of installation.
- Maximum forward voltage drop is 1.15 V minimizing power losses.
- Peak non-repetitive forward surge current is 100 A for short surge protection.
- Operates reliably from -55°C to 150°C making it suitable for harsh environments.
- Extremely fast recovery time of 2.5 ns ideal for high-speed switching applications.
- Physical dimensions are length 7.11 mm, width 6.22 mm, and height 2.42 mm.
Product Description
Vishay S3G-E3/57T is a high-efficiency single switching diode designed for robust industrial and electronic applications. It supports a maximum forward current of 3 amperes and can withstand peak reverse voltages up to 400 volts, making it suitable for power conversion and switching circuits.
The diode employs a silicon junction technology with a stud mount and is housed in a compact SMC package, facilitating reliable installation in diverse setups. The device operates within a broad temperature range from -55°C to 150°C, enabling use in demanding environmental conditions.
Featuring a very fast peak reverse recovery time of 2.5 nanoseconds, the S3G-E3/57T is ideal for applications requiring rapid switching and minimal switching losses. It also boasts peak non-repetitive forward surge current capability of 100 amperes, providing protection against transient surges.
Physical dimensions - length 7.11 mm, width 6.22 mm, height 2.42 mm - allow integration into compact electronic assemblies without sacrificing performance. Although it does not conform to automotive standards, it is a versatile component widely used in industrial, power electronics, and semiconductor circuits.
This diode is designed as a standard recovery rectifier suited for switching applications requiring efficiency and durability. Its form factor and mounting type support ease of assembly in automated manufacturing lines. Well suited for industrial, power management, and semiconductor design projects.
Choose Vishay S3G-E3/57T for reliable switching diode performance in electrical and electronic engineering applications. Browse our Switching Diode category for more Vishay semiconductor components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current rating of this diode is 3 A, making it suitable for power applications.
The maximum forward voltage drop is 1.15 V, which helps to minimize power losses during operation.
This model can handle a peak non-repetitive forward surge current of 100 A, providing protection against transient surges.
The physical dimensions are 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height.
It uses a stud mount, which facilitates ease of installation in various setups.
It is housed in a compact SMC package, which supports reliable installation in electronic assemblies.
The S3G-E3/57T is configured as a single diode, suitable for various electronic applications.
The country of origin for this model is India.
