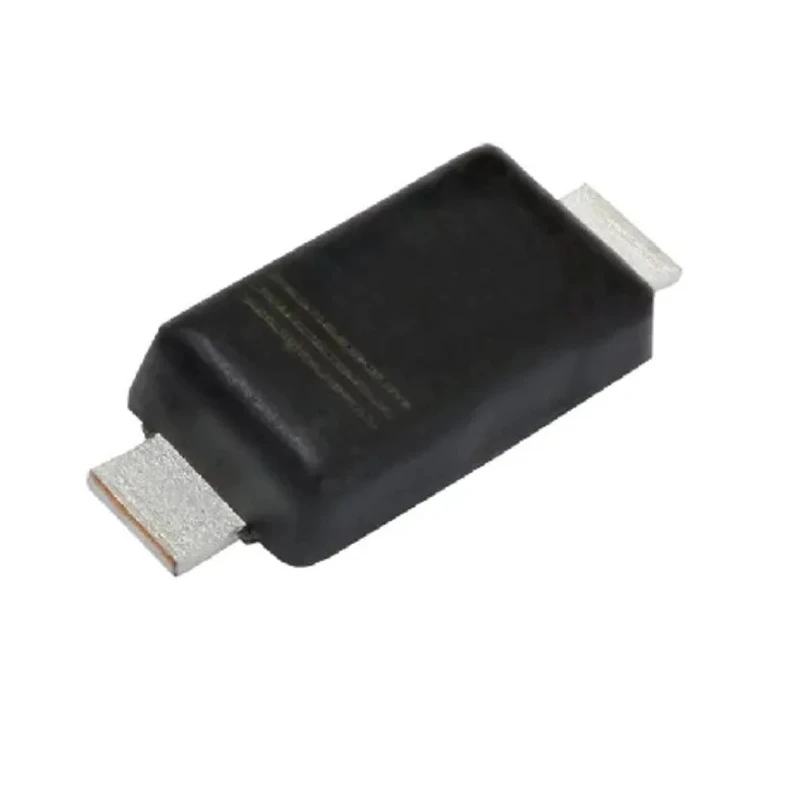

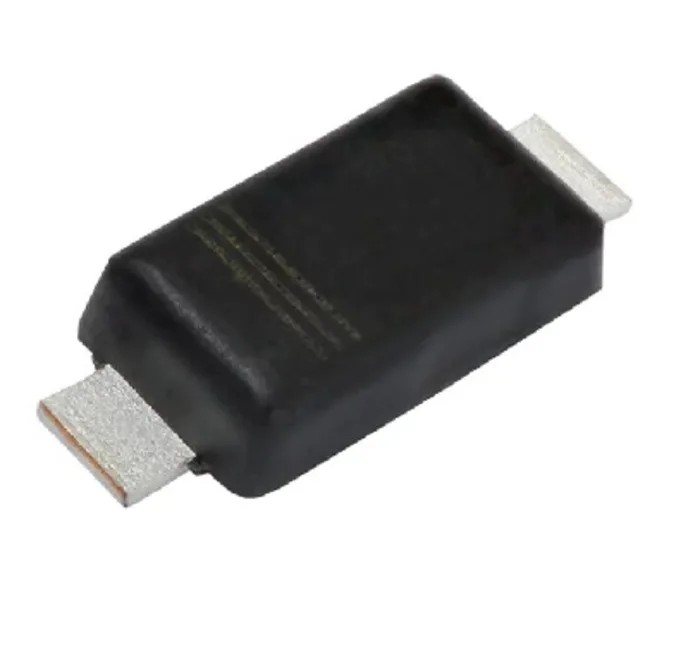

Vishay 200 V 1.2 A Switching Diode 2-Pin DO-219AB ES07D-GS08
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 0.83mm |
| Length | 2.9mm |
| Model | ES07D-GS08 |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | ES07D |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-219AB |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1.2A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 980mV |
| Peak Reverse Recovery Time trr | 25ns |
Key Features
- The diode supports a maximum continuous forward current of 1.2 A.
- Its peak reverse repetitive voltage rating is 200 V.
- Peak non-repetitive forward surge current is 30 A for transient tolerance.
- Maximum forward voltage drop is 980 mV to optimize performance.
- Reverse recovery time is fast at 25 ns for high-speed switching.
- Compact DO-219AB surface mount package with 2 pins.
- Operation temperature range from -55°C to +150°C ensures robustness.
- Complies with automotive standard AEC-Q101.
Product Description
Vishay ES07D-GS08 is a high-performance switching diode rated for a maximum continuous forward current of 1.2 A and a peak reverse voltage of 200 V. Housed in a compact 2-pin DO-219AB surface mount package, this diode provides highly efficient switching characteristics with a fast reverse recovery time of 25 ns.
The diode features a peak non-repetitive forward surge current capability of 30 A, making it suitable for transient conditions often encountered in power supply and inverter circuits. Its maximum forward voltage of 980 mV ensures minimal power loss and improved efficiency in high-frequency applications.
Engineered for operation in a broad temperature range from -55°C up to 150°C, the ES07D-GS08 ensures reliable performance in harsh industrial and automotive environments. It is certified to the automotive grade AEC-Q101 standard, signifying suitability for automotive electronics and other demanding conditions.
The small form factor with dimensions 2.9 mm (length) x 1.9 mm (width) x 0.83 mm (height) facilitates compact PCB layouts in semiconductor assemblies. Its single diode configuration and switching rectifier type allow flexible use in various power electronics, switched-mode power supplies (SMPS), inverters, and freewheeling applications.
Designed specifically for surface mounting, this diode offers ease of assembly and high production efficiency in electronics manufacturing. Additionally, its ultrafast recovery and robust electrical ratings make it indispensable for high-frequency circuit designs in industrial automation, telecommunications, and automotive sectors.
The diode supports a maximum continuous forward current of 1.2 A. Its peak reverse repetitive voltage rating is 200 V. Peak non-repetitive forward surge current is 30 A for transient tolerance. Maximum forward voltage drop is 980 mV to optimize performance.
Reverse recovery time is fast at 25 ns for high-speed switching. Compact DO-219AB surface mount package with 2 pins. Operation temperature range from -55°C to +150°C ensures robustness. Complies with automotive standard AEC-Q101.
Suitable for switched mode power supplies and automotive electronics. Single diode configuration switching rectifier type.
This Vishay switching diode ES07D-GS08 is ideal for industrial, electronic manufacturing, automotive, power conversion, and telecom applications. Browse the Diode section at EnvMart for more high-quality semiconductor components from Vishay and other leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 1.2 A.
The peak reverse repetitive voltage rating for this model is 200 V.
It has a peak non-repetitive forward surge current capability of 30 A.
The maximum forward voltage drop is 980 mV.
The reverse recovery time is fast at 25 ns, suitable for high-speed switching applications.
The operating temperature range is from -55°C to +150°C.
This diode is housed in a compact 2-pin DO-219AB surface mount package.
It features a single diode configuration.
This model complies with the automotive standard AEC-Q101.
The dimensions are 2.9 mm in length, 1.9 mm in width, and 0.83 mm in height.
This diode is suitable for applications in switched-mode power supplies, automotive electronics, and power conversion.
It is classified as a switching rectifier type.
