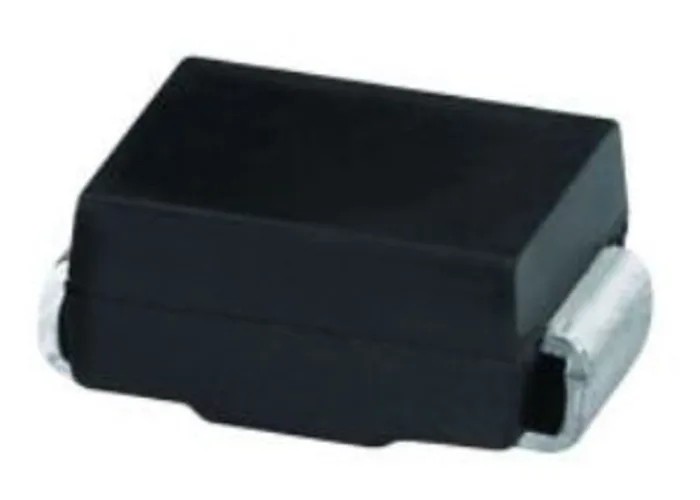

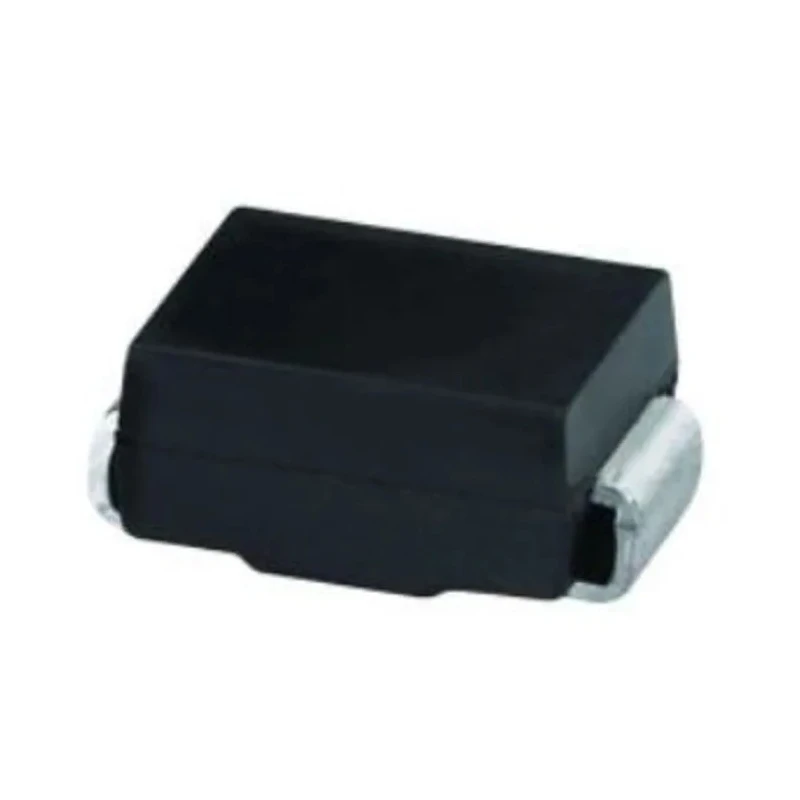

Vishay 100 V 2 A Schottky Diode 2-Pin Surface Mount DO-214AA SS2H10-E3/52T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.24mm |
| Length | 4.57mm |
| Model | SS2H10-E3/52T |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | SS2H10 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A |
| Maximum Forward Voltage Vf | 0.65V |
Key Features
- This diode features a surface mount design suitable for compact PCB assembly.
- Offers a maximum forward voltage of 0.65 V ensuring low power loss during operation.
- Supports peak non-repetitive forward surge current up to 75 A for transient tolerance.
- Operates reliably within a temperature range from -65°C to 175°C.
- Its package dimensions measure approximately 4.57 mm length, 3.94 mm width, and 2.24 mm height.
- Configured as a single diode with 2 pins for power rectification applications.
- Features a low peak reverse current of 10 μA to reduce leakage.
- Designed specifically for fast switching requiring low forward voltage drop to enhance efficiency.
Product Description
Vishay SS2H10-E3/52T is a 100 V, 2 A Schottky diode designed for surface mount use in electronic assemblies where low forward voltage drop and fast switching are critical.
This diode features the DO-214AA package, optimized for compact PCB layout with dimensions of 4.57 mm in length, 3.94 mm in width, and 2.24 mm in height, promoting easy integration into varied electronic designs.
The diode supports a peak non-repetitive forward surge current of 75 A, with a maximum forward voltage of only 0.65 V, providing efficient rectification with minimal power dissipation. Its robust operating temperature range from -65°C to 175°C ensures reliable field performance under harsh environmental conditions.
The single diode configuration with 2 pins facilitates straightforward circuit placement for power and signal rectification applications. The very low peak reverse current of 10 μA minimizes leakage current, contributing to device efficiency.
Vishay Schottky diodes are widely used in industrial, manufacturing, and electronic component applications including power supplies, voltage clamping circuits, and fast switching circuits requiring high efficiency and thermal stability.
This device does not comply with automotive standards and carries no special certifications. Designed to improve production efficiency by enabling easy mounting and reliable operation in semiconductor circuitry. Suitable for applications demanding rapid switching and low power loss.
The device is supplied on reels suitable for automated assembly processes. It serves as a critical component in electronic power management and protection circuits.
Select Vishay products like the SS2H10-E3/52T for dependable, high-quality semiconductor solutions in your next electronic design projects. Explore EnvMart categories for related Schottky Diodes & Rectifiers to source compatible components efficiently.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the Vishay SS2H10-E3/52T Schottky diode is 2 A.
This model has a peak reverse repetitive voltage rating of 100 V.
The package dimensions are approximately 4.57 mm in length, 3.94 mm in width, and 2.24 mm in height.
It operates reliably within a temperature range from -65°C to 175°C.
The maximum forward voltage drop for this diode is 0.65 V, ensuring low power loss during operation.
This model supports a peak non-repetitive forward surge current of up to 75 A.
The peak reverse current is 10 μA, which helps to reduce leakage.
It features a surface mount design suitable for compact PCB assembly.
The Vishay SS2H10-E3/52T is configured as a single diode with 2 pins.
This diode is commonly used in power supplies, voltage clamping circuits, and fast switching circuits that require high efficiency.
The series designation for this diode is SS2H10.
The country of origin for this diode is India.
