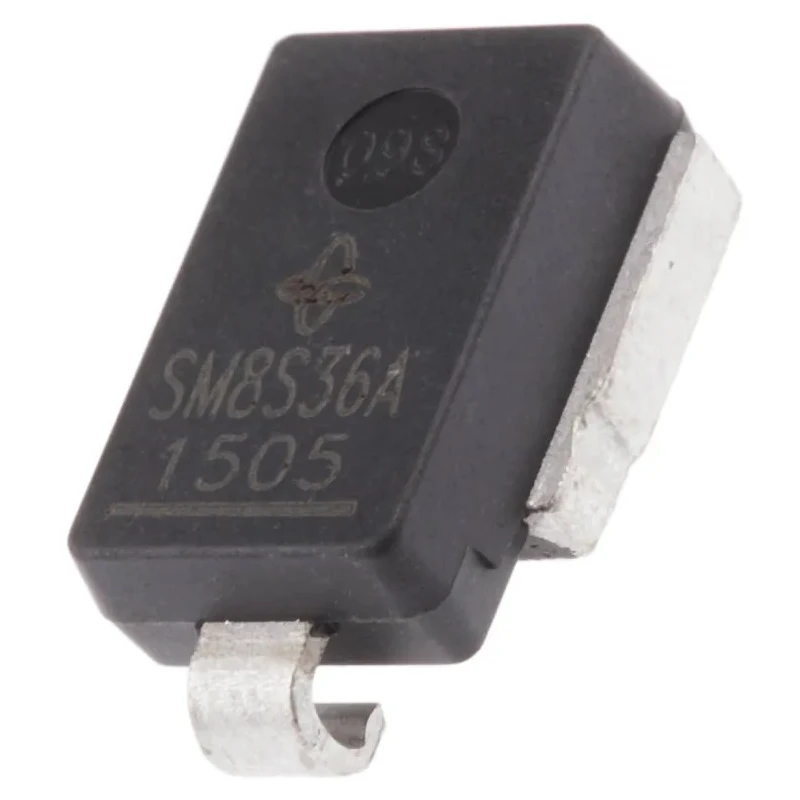

Vishay 1-Element Uni-Directional TVS Diode 6.6 kW, 2-Pin DO-218AB SM8S36AHE3_A/I

Name: Vishay 1-Element Uni-Directional TVS Diode 6.6 kW, 2-Pin DO-218AB SM8S36AHE3_A/I
Brand: Vishay
SKU: 214180



Category TVS Diode Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	5mm
Length	13.7mm
Model	SM8S36AHE3_A/I
Width	8.7mm
Mount Type	Surface
Series	PAR TVS
Maximum Operating Temperature	175°C
Package Type	DO-218AB
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	58.1V
Automotive Standard	AEC-Q101
Diode Configuration	Single
Direction Type	Uni-Directional
Minimum Breakdown Voltage Vbr	40V
Maximum Reverse Stand-off Voltage Vwm	36V
Peak Pulse Power Dissipation Pppm	6.6kW
Test Current It	5mA
Maximum Peak Pulse Current Ippm	114A
Maximum Reverse Leakage Current	10μA

Key Features

This diode offers a unidirectional design for efficient suppression of voltage transient spikes.
The device features a minimum breakdown voltage of 40 V and a maximum reverse stand-off voltage of 36 V.
It supports a peak pulse current of up to 114 A, ensuring high reliability in surge conditions.
Operating temperature ranges from -55°C to 175°C for durable performance in harsh environments.
The diode has a compact footprint with dimensions of 13.7 mm length, 8.7 mm width, and 5 mm height.
Maximum reverse leakage current is low at 10 μA, minimizing power loss during normal operation.
Automotive grade compliance with AEC-Q101 standard guarantees suitability for automotive applications.
ESD protection is integrated to safeguard sensitive circuits from electrostatic discharge damage.

Product Description

Vishay SM8S36AHE3_A/I 1-Element Uni-Directional TVS Diode delivers superior transient voltage suppression with a peak pulse power dissipation of 6.6 kW. Packaged in a surface-mount DO-218AB format with 2 pins, the diode is engineered for fast response voltage spike mitigation in electronic circuits.

This device features a minimum breakdown voltage of 40 V and a maximum reverse stand-off voltage of 36 V, making it suitable for protecting sensitive components against over-voltage conditions. The clamping voltage of 58.1 V ensures effective voltage limitation during transient events.

With a maximum peak pulse current rating of 114 A and low leakage current of 10 μA, this diode provides high reliability while minimizing interference with normal circuit operation. The operating temperature range from -55°C to 175°C allows use in demanding industrial, automotive, and harsh environmental conditions.

The diode adheres to the automotive AEC-Q101 standard, confirming its suitability for automotive electronic systems requiring stringent quality and performance. Its compact size with dimensions 13.7 mm by 8.7 mm by 5 mm enables space-saving PCB designs.

Integration of ESD protection further enhances circuit robustness. This single-element, unidirectional transient voltage suppressor (TVS) diode is ideal for applications including power supply protection, signal line safeguarding, and industrial electronics requiring effective surge suppression.

This uni-directional TVS diode efficiently suppresses transient voltage spikes with high peak pulse power. Compact 2-pin DO-218AB surface-mount package optimizes PCB space. Wide operating temperature span from -55°C to 175°C suits automotive and industrial applications.

Automotive grade AEC-Q101 certification ensures high quality and reliability. Low leakage current and high peak pulse current rating enhance circuit protection performance. Robust design with a clamping voltage of 58.1 V limits voltage surges effectively.

Single-element chip simplifies circuit integration and improves reliability. Suitable for power supplies, signal lines, and electronic system transient suppression. Explore the Vishay TVS Diodes range at EnvMart for reliable overvoltage protection components tailored to industrial, automotive, and electronic manufacturing needs.
