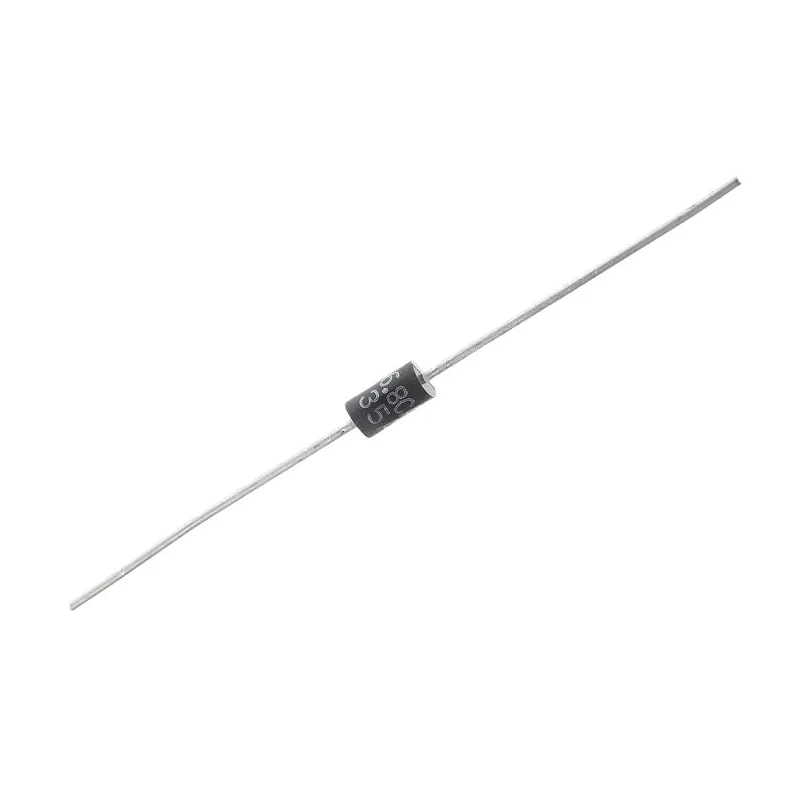

Vishay 1-Element Bi-Directional TVS Diode 600 W, 2-Pin DO-15 P6KE6.8CA-E3/54
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.6mm |
| Brand | Vishay |
| Height | 3.6mm |
| Length | 7.6mm |
| Model | P6KE6.8CA-E3/54 |
| Width | 3.6mm |
| Mount Type | Through Hole |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 10.5V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 6.45V |
| Maximum Reverse Stand-off Voltage Vwm | 5.8V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 10mA |
| Maximum Peak Pulse Current Ippm | 57.1A |
| Maximum Reverse Leakage Current | 1mA |
Key Features
- This diode features a single diode configuration with bi-directional direction type.
- Mount type is through hole within a compact DO-15 package.
- Minimum breakdown voltage of 6.45 V with maximum reverse stand-off voltage of 5.8 V ensures stable operation.
- Offers peak pulse power dissipation of 600 W supporting high transient voltages up to 10.5 V clamping voltage.
- Operates reliably between -55°C to 175°C for versatile industrial environments.
- Includes ESD protection and conforms to the automotive standard AEC-Q101.
- Maximum peak pulse current is 57.1 A with low maximum reverse leakage current of 1 mA.
- Designed for applications in electronics and electrical systems needing transient voltage suppression.
Product Description
Vishay P6KE6.8CA-E3/54 is a high-performance 1-element bi-directional transient voltage suppressor (TVS) diode capable of dissipating peak pulse power of 600 W. Housed in a DO-15 package with through-hole mount type, this device provides robust protection against voltage spikes and ESD events in electronic systems.
Specifically designed for transient voltage suppression, this diode features a bi-directional configuration, ensuring protection for signals or power lines against surges from both polarities. With a minimum breakdown voltage of 6.45 V and a maximum reverse stand-off voltage of 5.8 V, the device maintains voltage clamping at 10.5 V, safeguarding sensitive components.
The diode supports a maximum peak pulse current of 57.1 A and has a maximum operating temperature rating of 175°C, making it suitable for diverse industrial applications including automotive electronics, power supplies, and communication devices. Its compliance with the automotive standard AEC-Q101 further reinforces its suitability for demanding automotive environments.
Its compact dimensions (3.6 mm height, 7.6 mm length, 3.6 mm diameter, and 3.6 mm width) facilitate easy integration into printed circuit boards via through-hole mounting. The device includes ESD protection to prevent damage from electrostatic discharges during assembly or operation.
This diode offers high transient voltage suppression for electronic and electrical equipment. Bi-directional operation protects circuits from both polarity voltage transients. Robust 600 W peak pulse power rating supports industrial surge requirements.
Temperature range from -55°C to 175°C enables use in harsh environments. Complies with AEC-Q101 automotive standard for enhanced reliability in vehicle systems. Through-hole DO-15 package ensures straightforward mounting and replacement.
Low reverse leakage current minimizes power loss in steady-state operation. Compact dimensions optimize board space utilization.
This Vishay TVS diode is ideal for transient suppression in industrial, automotive, and consumer electronic applications. Explore more semiconductor components and discrete TVS Diodes in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of this TVS diode is 600 W, allowing it to handle high transient voltages effectively.
The maximum reverse stand-off voltage for this model is 5.8 V, ensuring stable operation under specified conditions.
The minimum breakdown voltage of this diode is 6.45 V, which helps in protecting sensitive components from voltage spikes.
The maximum operating temperature for this diode is 175°C, making it suitable for use in demanding industrial environments.
The clamping voltage of this TVS diode is 10.5 V, which is crucial for protecting circuits from overvoltage conditions.
This model can handle a maximum peak pulse current of 57.1 A, providing robust protection against transient events.
The dimensions of this diode are 3.6 mm in height, 7.6 mm in length, and 3.6 mm in width, with a diameter of 3.6 mm.
This diode uses a through-hole mounting type, facilitating easy integration into printed circuit boards.
This diode complies with the automotive standard AEC-Q101, ensuring reliability in automotive applications.
The minimum operating temperature for this diode is -55°C, allowing it to function in extreme conditions.
The maximum reverse leakage current for this model is 1 mA, which helps minimize power loss during steady-state operation.
This diode features a single element configuration, designed specifically for transient voltage suppression.
