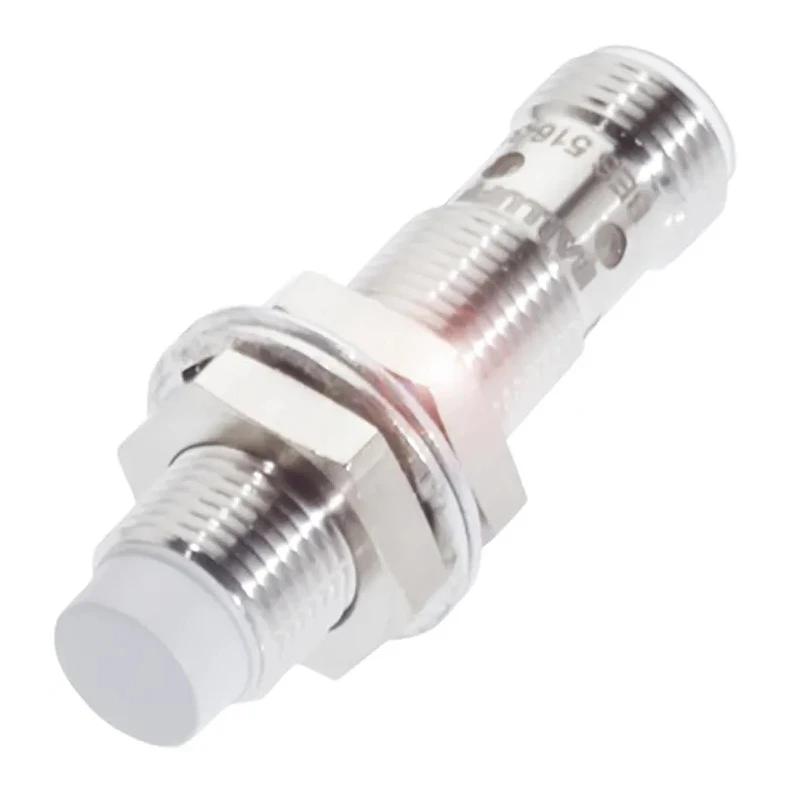

BALLUFF Threaded Barrel Inductive Proximity Sensor M12 x 1 PNP 30V 4 mm Detection Range BES 516-356-E5-C-S4
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | BALLUFF |
| Length | 49.5mm |
| Model | BES 516-356-E5-C-S4 |
| Depth | 49.5mm |
| IP Rating | IP68 |
| Width | 12mm |
| Mount Type | Non-Flush |
| Housing Material | Brass |
| Output type | PNP |
| Series | BES 516 |
| Maximum Operating Temperature | 70°C |
| Thread Size | M12 x 1 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | M12 |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 2kHz |
| Standards/Approvals | cULus, CE, IEC 60947-5-2, EAC |
| Maximum AC Voltage | 250V ac |
| Maximum Supply Voltage | 30V |
| Materials Detected | Polybutylene Terephthalate |
| Maximum Detection | 4mm |
Key Features
- The sensor features a compact M12 x 1 threaded barrel design for versatile mounting.
- It operates with a PNP output type supporting a maximum switching current of 200mA.
- Suitable for operating temperatures from -25°C to 70°C ensuring durability.
- It has an IP68 rating for superior protection against dust and water ingress.
- The sensor supports a maximum supply voltage of 30V dc and maximum AC voltage of 250V ac.
- It is constructed with a brass housing maximizing robustness in industrial environments.
- The output switches at a high frequency of up to 2kHz for fast response times.
- This unshielded non-flush sensor detects Polybutylene Terephthalate and other materials effectively.
Product Description
BALLUFF BES 516-356-E5-C-S4 is a high-quality Threaded Barrel Inductive Proximity Sensor designed for efficient and reliable metal detection in industrial automation, manufacturing, and control systems. Featuring an M12 x 1 thread size, this sensor offers flexible mounting options and robust brass housing construction to withstand harsh environments.
It operates with a PNP output type capable of handling switching currents up to 200mA and switching frequencies of 2kHz, enabling fast and accurate detection in dynamic processes. The device supports a maximum supply voltage of 30V dc and 250V ac maximum AC voltage, allowing compatibility with a range of industrial control systems.
Engineered for durability, the sensor has an IP68 rating ensuring resistance against dust and immersion in water, suitable for challenging industrial settings. It works reliably within a temperature range of -25°C to 70°C and detects materials such as Polybutylene Terephthalate effectively with an unshielded sensing range of 4 mm. The sensor’s non-flush mounting type ensures sensitivity and ease of installation.
Manufactured in Hungary, this BALLUFF BES 516-356-E5-C-S4 sensor meets multiple international safety and performance standards, including cULus, CE, IEC 60947-5-2, and EAC certifications.
The sensor’s compact size and robust design make it ideal for automation, manufacturing, and process control applications. It is particularly suitable for metallic object detection and positioning tasks in assembly lines.
The IP68 rating provides dependable operation in wet, dusty, or contaminated environments. High switching frequency supports fast signal processing and system responsiveness. PNP output configuration facilitates easy integration with standard industrial controllers.
Discover the precision and reliability of BALLUFF industrial sensors in our Electronics & Electricals Sensors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor has a maximum detection range of 4 mm.
It supports a maximum switching current of 200 mA.
The sensor operates within a temperature range of -25°C to 70°C.
It features a PNP output type.
The sensor has an IP68 rating, providing protection against dust and water ingress.
It has a thread size of M12 x 1.
It effectively detects materials such as Polybutylene Terephthalate.
The maximum supply voltage is 30V DC and 250V AC.
It supports a maximum switching frequency of 2 kHz.
The sensor is constructed with a brass housing.
It is manufactured in Hungary.
It meets several international standards including cULus, CE, IEC 60947-5-2, and EAC certifications.
