Power Integrations TOP254GN Flyback Converter Off Liner Power Switch IC 8-Pin Surface Mount TOP254GN

Free Delivery in India | Lowest Global Shipping Charges

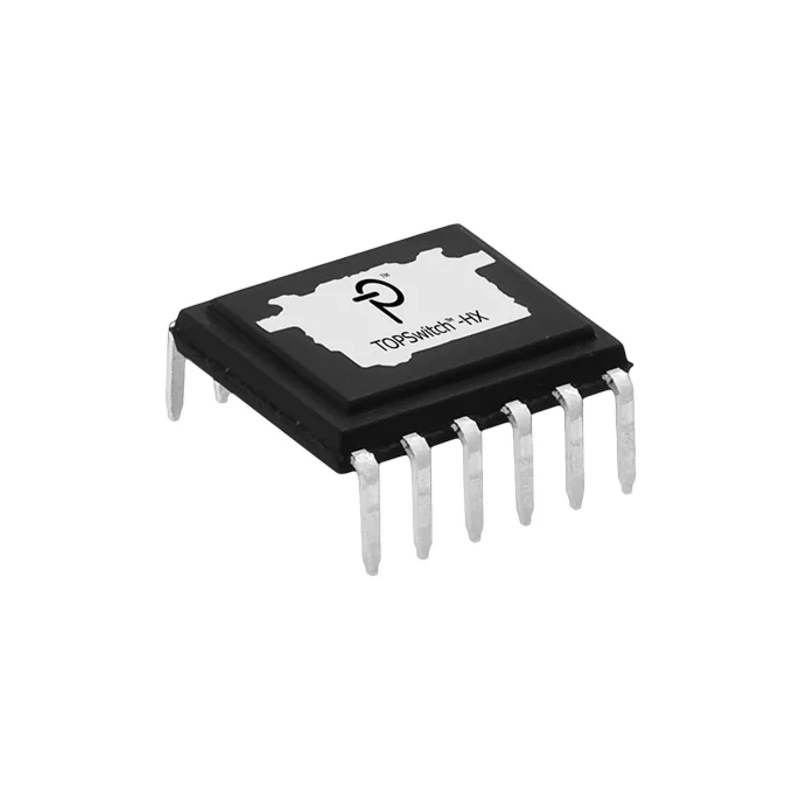

Power Integrations TOP254GN Flyback Converter Off Liner Power Switch IC 8-Pin Surface Mount TOP254GN

Name: Power Integrations TOP254GN Flyback Converter Off Liner Power Switch IC 8-Pin Surface Mount TOP254GN
Brand: Power Integrations
SKU: 213718
Price: 1.65 USD
Availability: InStock



Category Power Switch IC Brand Power Integrations Condition New

Specifications

Country of Origin	China
Brand	Power Integrations
Height	3.68mm
Length	9.83mm
Model	TOP254GN
Width	6.6mm
Mount Type	Surface
Number of inputs	1
Series	TOP254
Power Rating	30W
Maximum Operating Temperature	150°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Operating Current	2.08A
Number of outputs	1
Pin Count	8
Switch On Resistance RdsOn	9.7Ω

Key Features

This IC integrates a highly efficient off-line switcher for power supplies up to 195 W.
Multi-mode operation maximizes efficiency across all load conditions.
Requires no heatsink for loads up to 35W, enhancing compact design.
Includes output overvoltage protection and line undervoltage detection for safety.
Features optimized line feed-forward for superior line ripple rejection.
Operates across a wide temperature range from -40°C to 150°C.
Comes in an 8-pin surface mount package for easy PCB integration.
Designed for high efficiency during standby and low load conditions.

Product Description

Power Integrations TOP254GN is a highly integrated flyback converter off liner power switch IC designed for efficient power supply applications. This 8-pin surface mount device supports power ratings up to 30W and maintains stable operation within a temperature range of -40°C to 150°C. Its compact dimensions (9.83mm length, 6.6mm width, 3.68mm height) allow for versatile integration in modern electronic assemblies.

The TOP254GN series offers multi-mode operation to maximize efficiency at all load levels, with no need for additional heatsinks up to 35W, which reduces system complexity and thermal management challenges. It features built-in output overvoltage protection (OVP) and line undervoltage detection (UV) to prevent operational glitches and extend the device’s durability under line surges and faults.

With a switch on resistance of 9.7Ω and operating current of 2.08A, this power switch IC ensures reliable current control and power conversion quality. Its design optimizes line feed-forward compensation to suppress line ripple, resulting in smooth power delivery and reduced interference.

This IC is ideal for industrial, commercial, and consumer electronic power supply designs where compact size, high efficiency, and robust protection are required. Applications include switching power supplies, adapters, and converters serving various electronic equipment and systems.

Highly integrated monolithic off-line switcher for power supplies up to 195 W. Multi-mode efficiency operation across all load conditions. No heatsink required for power outputs up to 35 W. Output overvoltage protection (OVP) enhances safety.

Line undervoltage detection (UV) prevents turn-off glitches. Accurate programmable current limit and soft-start feature reduces stress. Compact 8-pin surface mount package with dimensions optimized for PCB space. The product is manufactured in China and complies with the highest standards to optimize power management in electronic circuits.
