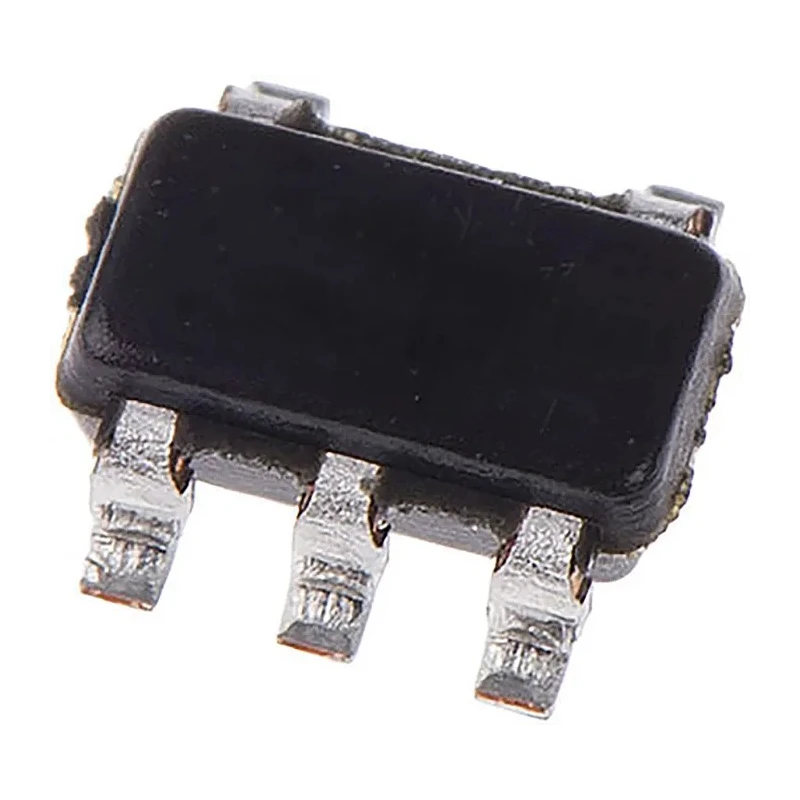

DiodesZetex High Side Power Switch IC 5-Pin SOT-25 3.2A Operating Current AP22811BW5-7

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex High Side Power Switch IC 5-Pin SOT-25 3.2A Operating Current AP22811BW5-7

Name: DiodesZetex High Side Power Switch IC 5-Pin SOT-25 3.2A Operating Current AP22811BW5-7
Brand: DiodesZetex
SKU: 213646
Price: 0.27 USD
Availability: InStock



Category Power Switch IC Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Brand	DiodesZetex
Height	1.3mm
Length	3.1mm
Model	AP22811BW5-7
Width	1.7mm
Mount Type	Surface
Number of inputs	1
Series	AP22811
Maximum Operating Temperature	85°C
Package Type	SOT-25
Minimum Operating Temperature	-40°C
Operating Current	3.2A
Number of outputs	5
Pin Count	5
Maximum Supply Voltage	2.4V
Minimum Supply Voltage	2.7V
Switch On Resistance RdsOn	90mΩ

Key Features

High side power switch topology for efficient power control.
Switch on resistance of 90 milliohms ensures low power loss.
Operates with a minimum supply voltage of 2.7 volts and maximum of 2.4 volts.
Compact SOT-25 package with 5 pins suitable for surface mounting.
Wide operating temperature range from -40 to 85 degrees Celsius.
Single output channel with 1 input for precise control.
Designed without automotive standard approvals.
Low-profile design aiding in high-density circuit board layouts.

Product Description

DiodesZetex AP22811BW5-7 High Side Power Switch IC is a reliable and efficient power switch designed for advanced electronic applications. Packaged in a compact 5-pin SOT-25 surface mount package, it supports a high side power switch topology and is optimized to deliver up to 3.2 amperes operating current with a minimal switch on resistance of 90 milliohms. The device operates within a supply voltage range between 2.4 volts maximum and a minimum of 2.7 volts, making it suitable for various low voltage systems.

This Power Switch IC is engineered for use in industrial, electronic components, and power management IC assemblies. Its wide operating temperature tolerance from -40 to 85 degrees Celsius allows it to function reliably under harsh environmental conditions common in manufacturing, automotive, and commercial electronic products, though it is not certified to automotive standards.

The compact dimensions of 3.1 mm length, 1.7 mm width, and 1.3 mm height ensure it is ideal for space-constrained PCB designs, allowing for high-density layouts without sacrificing performance. Featuring a single output channel with one input, it supports precise power switching control, making it well-suited for power management in embedded systems.

This switch IC does not carry specific standards approvals, aligning with typical industrial and laboratory-grade electronic component requirements. It is intended for engineers and system designers requiring robust and efficient power switches for DC loads.

High side power switch topology for efficient power control. Switch on resistance of 90 milliohms ensures low power loss. Operates with a minimum supply voltage of 2.7 volts and maximum of 2.4 volts. Compact SOT-25 package for surface mounting applications.

Wide operating temperature range from -40 to 85 degrees Celsius. Dimensions: 3.1 mm length x 1.7 mm width x 1.3 mm height. Single output channel with one input for precise control. Designed without automotive standard approvals.

Suitable for industrial, electronic, power management, and embedded system applications. Explore more electronic components and power management ICs at EnvMart for reliable integration and design inspiration.
