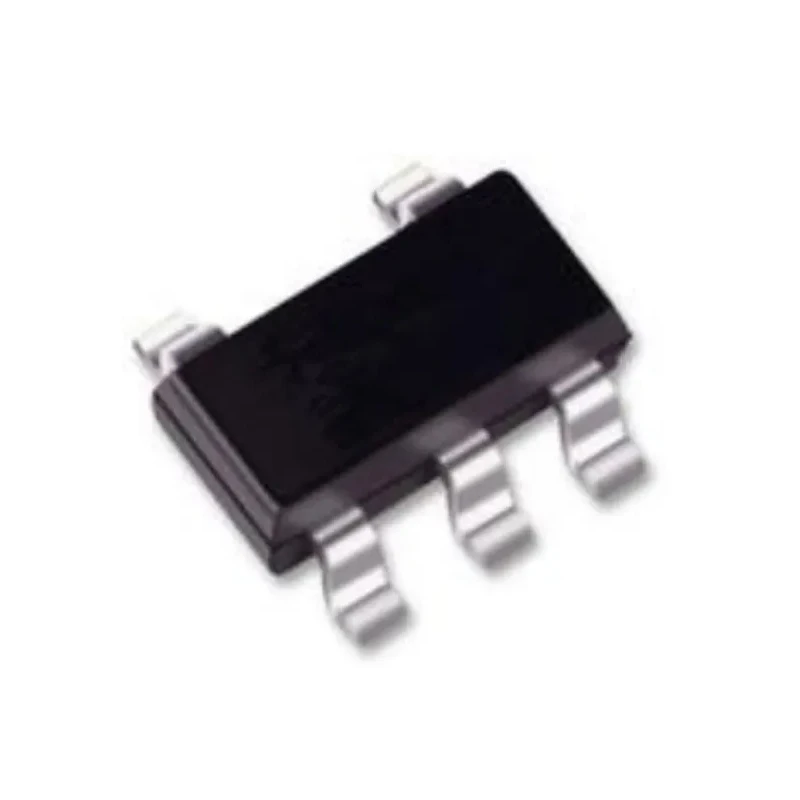

DiodesZetex High Side 1 High Side Power Switch IC 5-Pin SOT-25 AP22804BW5-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.3mm |
| Length | 3.1mm |
| Model | AP22804BW5-7 |
| Width | 1.7mm |
| Mount Type | Surface |
| Number of inputs | 1 |
| Series | AP22804 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-25 |
| Minimum Operating Temperature | -40°C |
| Operating Current | 3.3A |
| Number of outputs | 5 |
| Pin Count | 5 |
| Maximum Supply Voltage | 2.4V |
| Minimum Supply Voltage | 2.7V |
| Switch On Resistance RdsOn | 65mΩ |
Key Features
- Features a low switch on resistance of 65 milliohms for efficient power handling.
- Equipped with 5 outputs and 1 input to manage multiple power paths.
- Operates within a supply voltage range of 2.4V to 2.7V.
- Operates at currents up to 3.3 amperes ensuring robust performance.
- Designed for surface mounting in a compact 5-pin SOT-25 package.
- Compact device dimensions of 3.1mm length, 1.7mm width, and 1.3mm height.
- Wide operating temperature range from -40°C to 85°C for industrial and commercial applications.
- No automotive standard compliance; suitable for general electronic power switching tasks.
Product Description
DiodesZetex AP22804BW5-7 is a high side power switch integrated circuit featuring a 5-pin SOT-25 package, designed specifically for efficient power control in electronic and semiconductor applications. It operates at a minimum supply voltage of 2.7 volts and maximum supply voltage of 2.4 volts, supporting an operating current of 3.3 amperes. The device includes one input and five outputs to facilitate power switching with a low on switch resistance of 65 milliohms, making it suitable for power-sensitive electronic designs.
This power switch IC is surface-mountable, compact in size, measuring 3.1mm in length, 1.7mm in width, and 1.3mm in height, making it suited for space-constrained board designs in industrial and commercial devices. It operates reliably over a broad temperature range from minus 40 to plus 85 degrees Celsius, ideal for demanding environments.
The AP22804BW5-7 does not conform to automotive standards but fits well for general power management tasks within the electronics sector, such as power supply circuits, embedded controller boards, and switched power rails.
Low resistance switch on resistance for efficient energy savings. Surface mount, small footprint for flexible PCB integration. Wide temperature operating range supports harsh industrial conditions. Multiple outputs enable complex switching configurations.
Compact SOT-25 package simplifies assembly and layout.
This high side Power Switch IC is essential for electronics manufacturers, semiconductor engineers, and electrical designers who demand efficiency and reliability in power management solutions. It is typically used in power supply protection, electronic load switching, and automated power distribution systems across industrial, laboratory, and commercial applications.
Explore other power management ICs and semiconductors in the Electronics & Electricals category on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 2.4V to 2.7V.
It can handle currents up to 3.3 amperes, ensuring robust performance in power management applications.
The device measures 3.1mm in length, 1.7mm in width, and 1.3mm in height, making it compact for surface mounting.
It features five outputs, allowing for multiple power paths to be managed efficiently.
The switch on resistance is 65 milliohms, which contributes to efficient power handling.
It operates reliably over a wide temperature range from -40°C to 85°C, suitable for industrial applications.
This model is designed for surface mounting, which is ideal for space-constrained applications.
No, this power switch IC does not conform to automotive standards and is intended for general electronic power switching tasks.
The AP22804BW5-7 has a pin count of 5, corresponding to its SOT-25 package design.
It is suitable for power supply protection, electronic load switching, and automated power distribution systems in industrial and commercial settings.
The low switch on resistance of 65 milliohms allows for efficient energy savings and effective power management in electronic designs.
The country of origin for this product is India.
