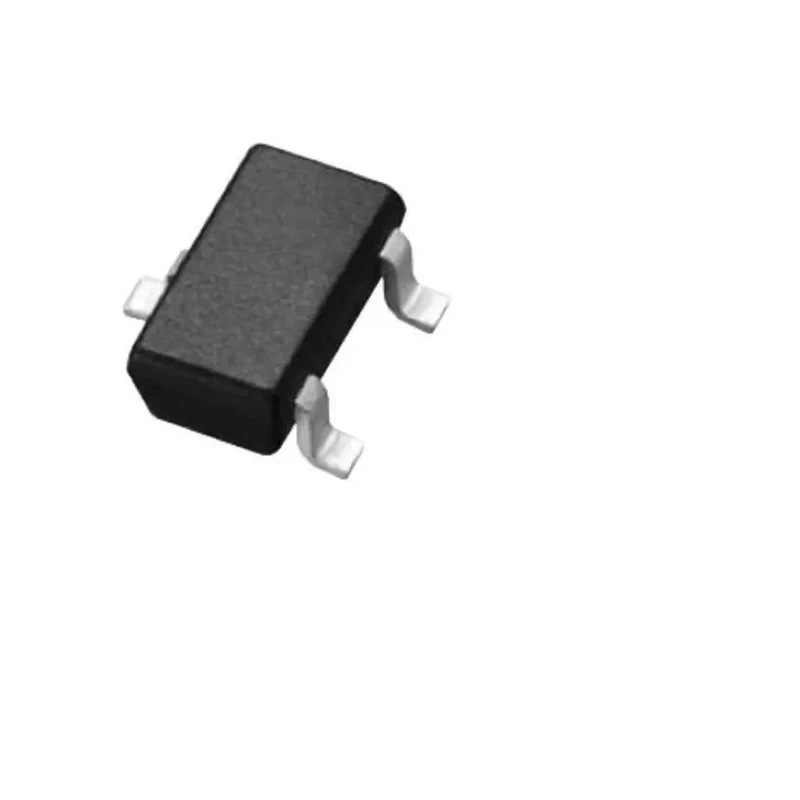

DiodesZetex Through Hole Hall Effect Sensor 3 V-28 V SOT-23W 3-Pin AH3364Q-SA-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Response time | 3.75μs |
| Height | 1mm |
| Length | 3mm |
| Model | AH3364Q-SA-7 |
| Technology | Chopper Stabilised Hall Effect |
| Sensor Type | Hall Effect Sensors |
| Width | 1.4mm |
| Mount Type | Through Hole |
| Series | AH3364Q |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23W |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | Halogen Free, Lead (Pb) Free, Antimony-Free, RoHS |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 28V |
| Minimum Supply Voltage | 3V |
| Supply Current | 4mA |
| Magnetic Type | Unipolar |
| Maximum Frequency Response | 800kHz |
Key Features
- Utilizes chopper stabilised Hall Effect technology for accurate magnetic detection.
- Designed as a unipolar Hall Effect sensor for position and proximity sensing.
- Compact SOT-23W package with 3 mm length, 1.4 mm width, and 1 mm height.
- Operates reliably within temperature range from -40°C to 150°C.
- Maximum frequency response of 800 kHz enables fast sensing capabilities.
- Low supply current of 4 mA ensures energy-efficient operation.
- Meets automotive standard AEC-Q100 for high reliability in vehicles.
- Fast response time of 3.75 μs suitable for dynamic sensing environments.
Product Description
DiodesZetex AH3364Q-SA-7 through hole Hall Effect Sensor is a high performance magnetic sensor IC designed to accurately detect magnetic fields within industrial, automotive, and electronic applications. It operates from a minimum supply voltage of 3 V up to a maximum of 28 V, housed in a compact SOT-23W package measuring 3 mm in length, 1.4 mm in width, and 1 mm in height. Featuring chopper stabilised Hall Effect technology, this sensor provides linear output for precise position and proximity sensing tasks.
This 3-pin sensor supports unipolar magnetic detection and is capable of functioning reliably across a broad temperature range from -40°C to 150°C. The device offers a maximum frequency response of 800 kHz allowing it to be used in applications demanding high-speed switching and accurate magnetic field detection. It consumes a low supply current of 4 mA which contributes to its energy efficiency in embedded systems.
Robustly designed to meet AEC-Q100 automotive standards, the sensor is suitable for incorporation into automotive electronic systems requiring stringent reliability. The Hall sensor’s fast response time of 3.75 microseconds ensures responsiveness in real-time sensing scenarios.
Compact SOT-23W package for easy integration into through hole PCB mounting. Unipolar magnetic sensing enables detection of a specific magnetic polarity. Utilizes chopper stabilised Hall Effect for enhanced signal stability and accuracy.
Wide operating temperature range supports harsh industrial environments. High-frequency operation is suitable for fast switching applications. Low current consumption aids in power-sensitive designs. Automotive grade compliance ensures suitability for vehicle electronics.
3-pin configuration for straightforward wiring and connectivity.
This sensor is commonly applied in industrial control, automotive position detection, electronic switches, proximity sensing, and various embedded systems requiring magnetic field sensing. Its reliable performance and compact size make it an ideal component for precision electronic designs in laboratory, manufacturing, and automotive HVAC systems.
Explore a comprehensive range of DiodesZetex sensors and semiconductor components at EnvMart for your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This Hall Effect sensor operates with a supply voltage ranging from 3 V to 28 V.
The maximum frequency response of the AH3364Q-SA-7 is 800 kHz, allowing for high-speed sensing capabilities.
It has a fast response time of 3.75 microseconds, suitable for dynamic sensing environments.
This model supports unipolar magnetic sensing, which enables the detection of a specific magnetic polarity.
The SOT-23W package measures 3 mm in length, 1.4 mm in width, and 1 mm in height.
The sensor operates reliably within a temperature range of -40°C to 150°C.
This sensor consumes a low supply current of 4 mA, contributing to energy-efficient operation.
Yes, it meets the AEC-Q100 automotive standard, ensuring high reliability for automotive applications.
The AH3364Q-SA-7 is designed for through hole mounting, facilitating easy integration into PCBs.
It complies with Halogen Free, Lead (Pb) Free, Antimony-Free, and RoHS standards.
This sensor is commonly applied in industrial control, automotive position detection, and electronic switches, among others.
