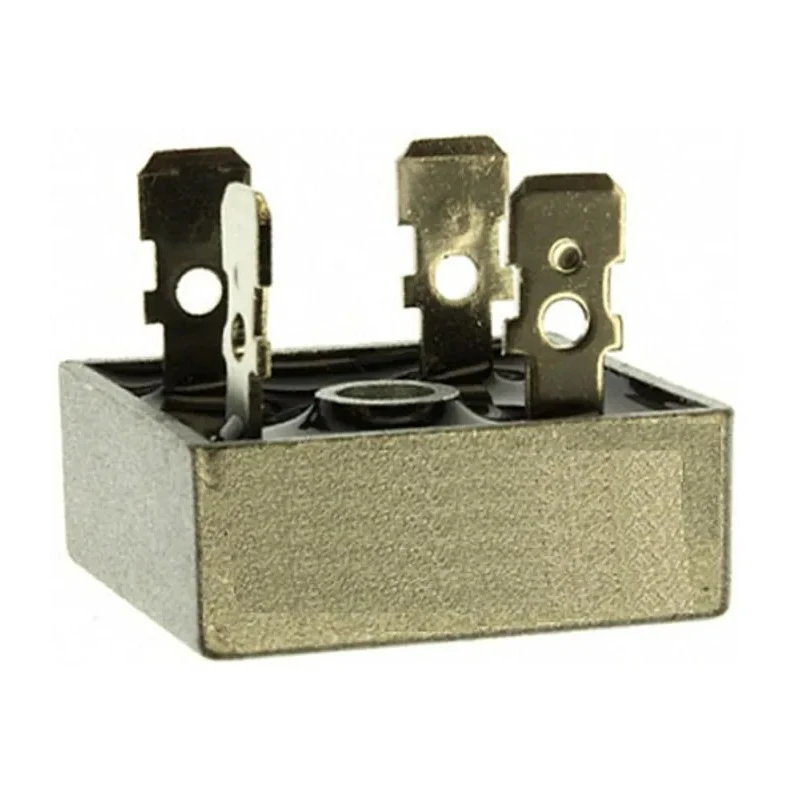

HY Electronic Corp Bridge Rectifier KBPC2510 1000 V 400 A 4-Pin Through Hole KBPC Series

HY Electronic Corp KBPC2510 Bridge Rectifier is a robust semiconductor device engineered for efficient AC to DC voltage conversion in electronic circuits and power applications. With a peak reverse repetitive voltage of 1000 V and a forward current rating of 25 A, this 4-pin single-phase bridge rectifier ensures reliable performance in demanding industrial and electronic environments.

The device supports surge overload currents ranging from 240 A to 500 A peaks, making it capable of handling transient electrical stresses without damage. The KBPC series package is designed for through hole mounting, providing stable mechanical and electrical connection within printed circuit boards.

Operating temperature range of -55°C to 150°C allows the KBPC2510 to be used under varied environmental conditions typical in aerospace, industrial, and commercial electronics. Its forward voltage drop is optimized at 1.1 V, enhancing power efficiency and reducing heat generation during operation.

This product features a solder 0.25 FAST ON terminal type allowing for quick and secure terminal connections. The electrically isolated base supports isolation voltages up to 2000 V which protects devices and enhances circuit safety.

Measuring 28.8 mm in length and width and 11.23 mm in height, the KBPC2510 is compact yet sturdy, ideal for installations where space and durability are critical. Constructed from UL recognized materials, this bridge rectifier complies with recognized safety standards.

Operates with a forward current rating of 25 A and peak surge current of 400 A. Through hole mount type with KBPC package ensuring ease of assembly. Operating temperature from -55°C to 150°C for broad application range. Low forward voltage drop of 1.1 V for efficient performance.

Peak reverse current of 10 μA ensuring minimal leakage. Electrically isolated base with 2000 V isolation rating. Compact size 28.8x28.8x11.23 mm facilitating PCB integration. Constructed with U/L recognized materials for reliability.

This Bridge Rectifier is commonly used in applications such as industrial power supplies, consumer electronics, battery charging circuits, and HVAC control systems. It is well suited for both single-phase power rectification and industrial automation processes requiring stable DC output.
