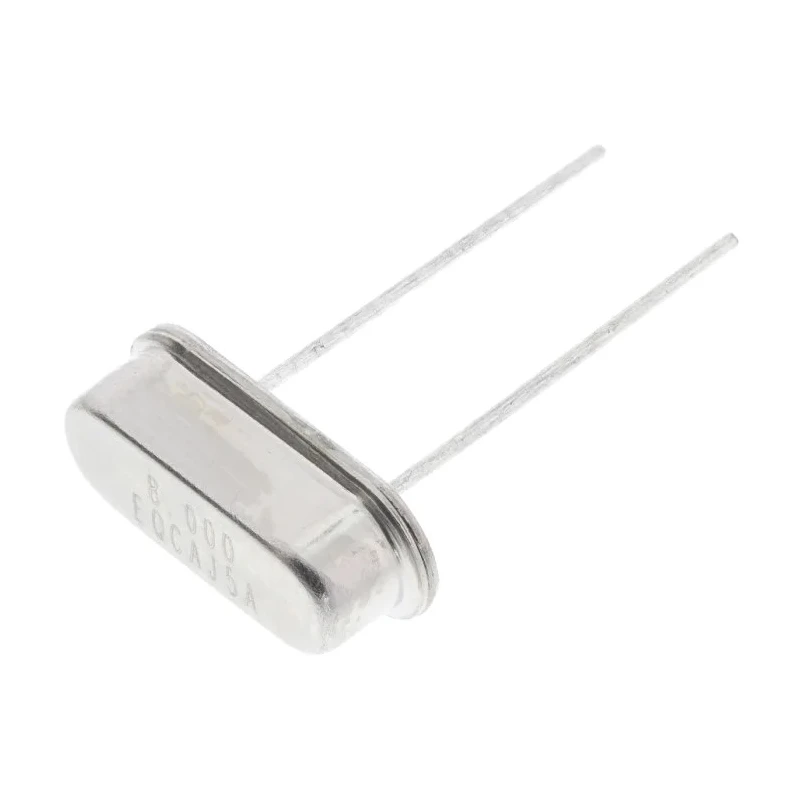

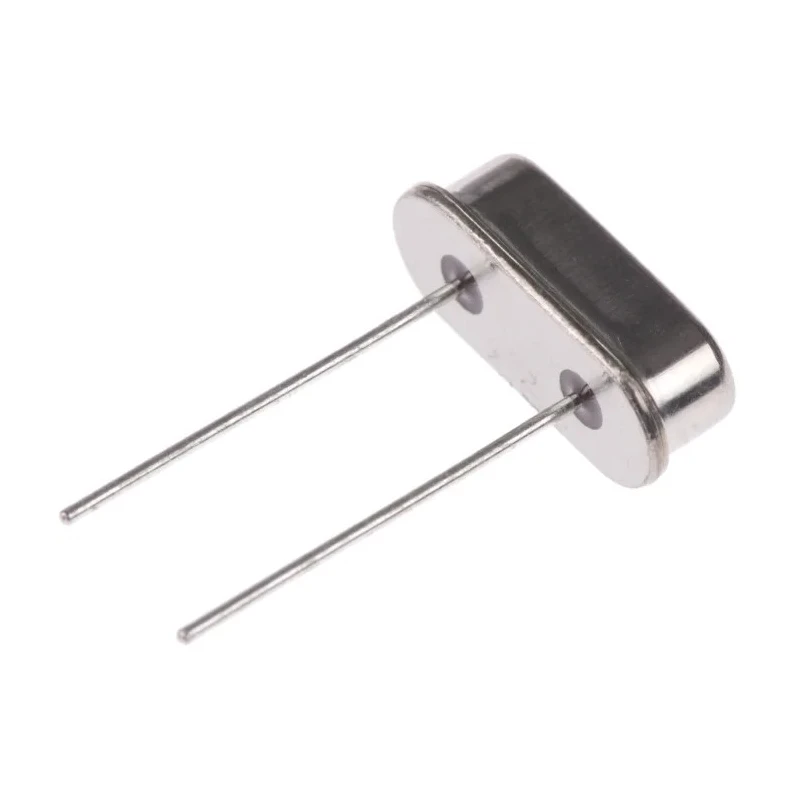

IQD 8 MHz Crystal ±30 ppm HC-49 2-Pin Through Hole 18pF Load Capacitance 8.000MHz /4H/30/50/-40+85/18pF/ATF HC49
Specifications
| Country of Origin | China |
|---|---|
| Brand | IQD |
| Height | 3.5mm |
| Length | 10.77mm |
| Model | HC49 |
| Packaging | Tape & Reel |
| Width | 4.34mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 85°C |
| Package Type | HC-49 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 8MHz |
| Load Capacitance | 18pF |
| Series Resistance | 60Ω |
Key Features
- The standard frequency is 8 MHz with a frequency tolerance of ±30 ppm.
- It features a compact HC-49 package measuring 10.77 mm in length, 4.34 mm in width, and 3.5 mm in height.
- Operating temperature ranges from -40°C to 85°C with a frequency stability of ±3 ppm.
- The crystal has a series resistance of 60Ω and supports 2-pin through-hole mounting.
- Packaging is supplied on tape and reel for efficient automated assembly processes.
- Complies with RoHS standards ensuring environmental safety.
Product Description
Euroquartz HC49 8 MHz Crystal ±30 ppm HC-49 2-Pin through-hole oscillator provides stable frequency generation for electronic circuits requiring precise timing. The crystal's 8 MHz standard frequency and ±30 ppm tolerance ensure accuracy in various applications.
The crystal's HC-49 package with 18pF load capacitance fits PCB designs requiring through-hole mounting. Dimensions are 10.77 mm length, 4.34 mm width, and 3.5 mm height, suitable for compact assemblies.
Operating temperature ranges from -40°C to 85°C, making it suitable for demanding environmental conditions in industrial and commercial electronics. Its frequency stability of ±3 ppm ensures minimal frequency drift.
The series resistance of 60Ω supports stable oscillation and reliable circuit behavior. The component has 2 pins for straightforward through-hole mounting and handling. This product complies with RoHS directives, providing an environmentally friendly option. Packaging on tape and reel supports automated production lines and efficient placement.
The standard frequency is 8 MHz with ±30 ppm tolerance. Compact HC-49 package with 18pF load capacitance. Temperature range from -40°C to 85°C ensures robustness. Low series resistance of 60Ω for stable oscillation. 2-pin through-hole mounting for easy PCB integration.
Supplied on tape and reel for automated manufacturing. RoHS compliant for environmental safety. Ideal for applications in electronics manufacturing, industrial instrumentation, communication devices, and other precision frequency control systems.
Discover more electronic components and oscillators in the Electronics Components category of EnvMart to find solutions for various industrial, commercial, and laboratory applications.
Explore more products in our Crystals, Oscillators & Resonators category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal oscillator is 8 MHz.
It operates within a temperature range of -40°C to 85°C.
The load capacitance of this crystal is 18 pF.
This model features 2 pins for through-hole mounting.
The dimensions of the HC-49 package are 10.77 mm in length, 4.34 mm in width, and 3.5 mm in height.
The series resistance of this crystal is 60Ω.
The frequency tolerance of this oscillator is ±30 ppm.
It is supplied on tape and reel for efficient automated assembly processes.
Yes, this crystal complies with RoHS standards, ensuring environmental safety.
This crystal is suitable for applications in electronics manufacturing, industrial instrumentation, and communication devices.
This model supports through-hole mounting, making it easy to integrate into PCB designs.
The frequency stability of this crystal is ±3 ppm.
