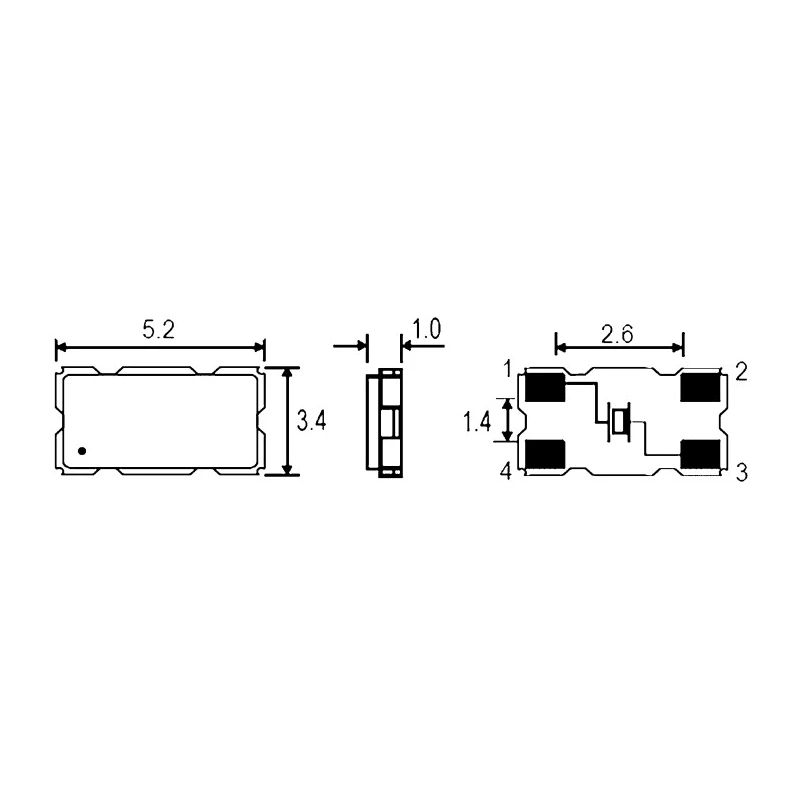

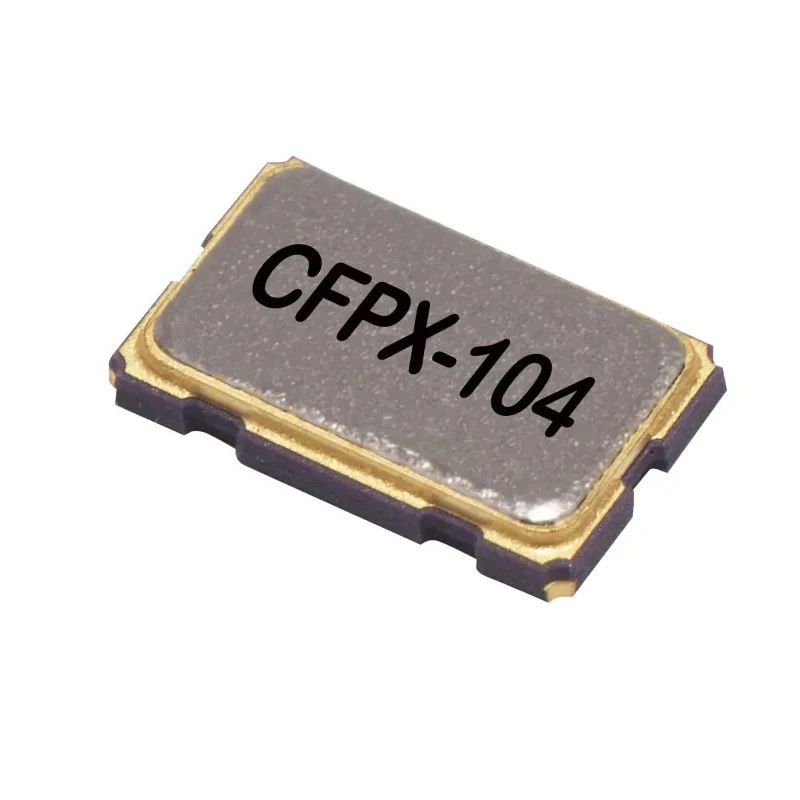

IQD 12 MHz Crystal ±50 ppm Surface Mount 4-Pin Ceramic Case 5 mm x 3.2 mm x 1 mm LFXTAL032878
Specifications
| Country of Origin | India |
|---|---|
| Brand | IQD |
| Height | 1mm |
| Length | 5mm |
| Model | LFXTAL032878 |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | CFPX-104 |
| Maximum Operating Temperature | 60°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 12MHz |
| Load Capacitance | 18pF |
| Series Resistance | 70Ω |
| Fox Electronics 12MHz Crystal ±50ppm SMD 4-Pin 12.5 x 4.6 x 3.7mmBrand | Fox Electronics |
| Abracon 12MHz Crystal ±20ppm SMD 4-Pin 5 x 3.2 x 1.1mmBrand | Abracon |
Key Features
- Standard frequency of 12 MHz ensures stable oscillation for electronic circuits.
- ±50 ppm frequency tolerance provides reliable timing accuracy.
- Surface mount package type allows compact PCB design and easy automated assembly.
- 4-pin configuration supports secure mounting and connectivity.
- Operating temperature range from -10°C to 60°C suits various industrial environments.
- Load capacitance of 18 pF optimizes the oscillator circuit performance.
- Series resistance of 70 Ω minimizes energy loss during operation.
- Complies with RoHS standards ensuring environmental safety.
Product Description

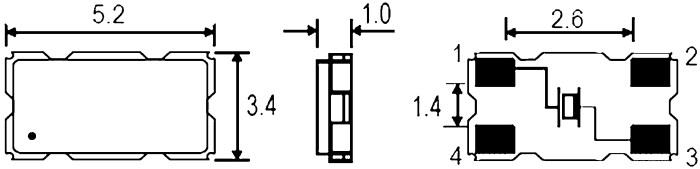

IQD LFXTAL032878 is a high precision 12 MHz crystal unit designed for surface mount applications requiring compact size and high frequency stability. The device features a ceramic case measuring 5 mm length, 3.2 mm width, and 1 mm height, housing a 4-pin configuration ideal for soldering on printed circuit boards in electronic assemblies.
This crystal operates with a ±50 ppm frequency tolerance and stability, making it suitable for various electronic timing and frequency control applications including oscillators and microcontrollers in consumer electronics, communication equipment, and industrial control systems.
The device has a load capacitance of 18 pF and a series resistance of 70 Ω to optimize circuit performance and reliability within ambient temperature conditions from -10°C to 60°C.
The LFXTAL032878 meets RoHS compliance requirements, supporting environmentally responsible manufacturing processes. Its robust ceramic casing contributes to mechanical durability and shielding against interference.
Typical use cases include industrial electronic devices, telecommunications systems, instrumentation, and embedded system designs needing precise frequency control in a miniature package.
Standard frequency of 12 MHz ensures stable oscillation for electronic circuits. ±50 ppm frequency tolerance provides reliable timing accuracy. Surface mount package type allows compact PCB design and easy automated assembly.
4-pin configuration supports secure mounting and connectivity. Operating temperature range from -10°C to 60°C suits various industrial environments. Load capacitance of 18 pF optimizes the oscillator circuit performance.
Series resistance of 70 Ω minimizes energy loss during operation. Complies with RoHS standards ensuring environmental safety.
This crystal unit is an essential component for design engineers and manufacturers requiring precise frequency sources for modern embedded systems and electronic communication devices. Explore more IQD Crystal Units at EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 12 MHz, ensuring stable oscillation for electronic circuits.
This model has a frequency tolerance of ±50 ppm, providing reliable timing accuracy for various applications.
The crystal unit measures 5 mm in length, 3.2 mm in width, and 1 mm in height, making it suitable for compact PCB designs.
The load capacitance of this model is 18 pF, which optimizes the oscillator circuit performance.
The series resistance is 70 Ω, which helps minimize energy loss during operation.
It operates within a temperature range of -10°C to 60°C, suitable for various industrial environments.
This model uses a surface mount package type, allowing for easy automated assembly on printed circuit boards.
This crystal unit features a 4-pin configuration, supporting secure mounting and connectivity.
Yes, it complies with RoHS standards, ensuring environmental safety in its manufacturing process.
The LFXTAL032878 is part of the CFPX-104 series, which includes various crystal units designed for specific applications.
It is suitable for various electronic timing and frequency control applications, including oscillators and microcontrollers in consumer electronics and industrial control systems.
The country of origin for this crystal unit is India.
