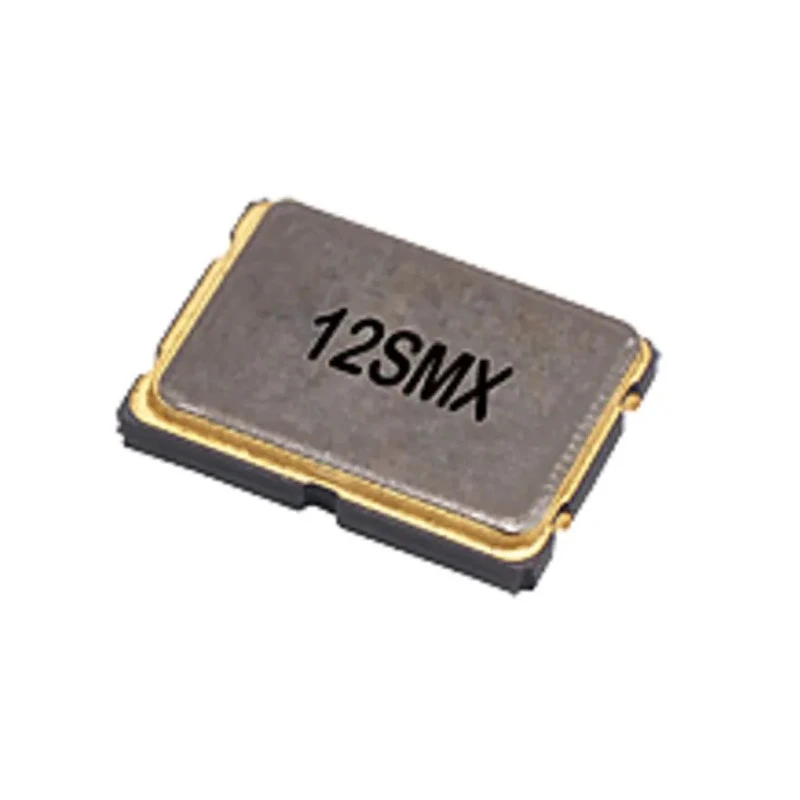

IQD 12 MHz Crystal Unit ±30 ppm Surface Mount 4-Pin 7.5 x 5.2 x 1.4 mm LFXTAL026384

Free Delivery in India | Lowest Global Shipping Charges

IQD 12 MHz Crystal Unit ±30 ppm Surface Mount 4-Pin 7.5 x 5.2 x 1.4 mm LFXTAL026384



Category Crystal Unit Brand IQD Condition New

Specifications

Country of Origin	India
Brand	IQD
Height	1.4mm
Length	7.5mm
Model	LFXTAL026384
Width	5.2mm
Mount Type	Surface
Maximum Operating Temperature	70°C
Package Type	Surface Mount
Minimum Operating Temperature	-20°C
Standards/Approvals	RoHS, REACH
Pin Count	4
Standard Frequency	12MHz
Load Capacitance	16pF
Series Resistance	60Ω

Key Features

The crystal unit operates at a standard frequency of 12 MHz.
It features a surface mount package type with four pins for PCB mounting.
Load capacitance is rated at 16 pF for optimal circuit matching.
The device has a series resistance of 60 Ω for stable electrical performance.
Operating temperature range from -20°C to 70°C suits various environmental conditions.
The ceramic package is hermetically sealed with a metal lid to prevent contamination.
Compliant with RoHS and REACH environmental standards.
Pin count of 4 and compact dimensions support high-density circuit design.

Product Description

The IQD LFXTAL026384 is a 12 MHz crystal unit designed for use in electronic timing and frequency control applications. Available in a standard 7.5 x 5.2 x 1.4 mm surface mount device (SMD) package, it features 4 pins and a hermetically sealed ceramic package with a metal lid to ensure long-term reliability and protection against environmental contaminants.

This crystal unit offers a frequency tolerance of ±30 ppm and a frequency stability of ±50 ppm, which provides excellent precision and stability necessary in telecommunications, computing, and consumer electronics. Its load capacitance of 16 pF is suitable for a wide range of oscillator circuits, enhancing signal integrity.

The device operates efficiently over a temperature range from -20°C to 70°C, meeting typical industrial and commercial requirements. A series resistance of 60 Ω ensures consistent performance with minimized power losses. The compact size and surface mount configuration make it ideal for automated assembly lines and high-density PCB layouts.

Compliant with RoHS and REACH directives, this crystal unit meets environmental safety standards. It is not qualified for automotive applications, making it more suited for commercial, industrial, and laboratory environments.

The crystal unit operates at a standard frequency of 12 MHz. Surface mount package type with four PCB mount pins. Load capacitance of 16 pF for oscillator optimization. ±30 ppm frequency tolerance and ±50 ppm stability for precise timing.

Series resistance of 60 Ω for efficient electrical performance. Operating temperature range from -20°C to 70°C. Hermetically sealed ceramic package with metal lid. RoHS and REACH compliant ensuring environmental safety. Compact dimensions support high-density PCB designs.

This product is ideal for integration in industrial electronics, communication devices, laboratory instruments, and other applications that require stable frequency sources. It supports manufacturing processes requiring surface mounting and compact form factor components.
