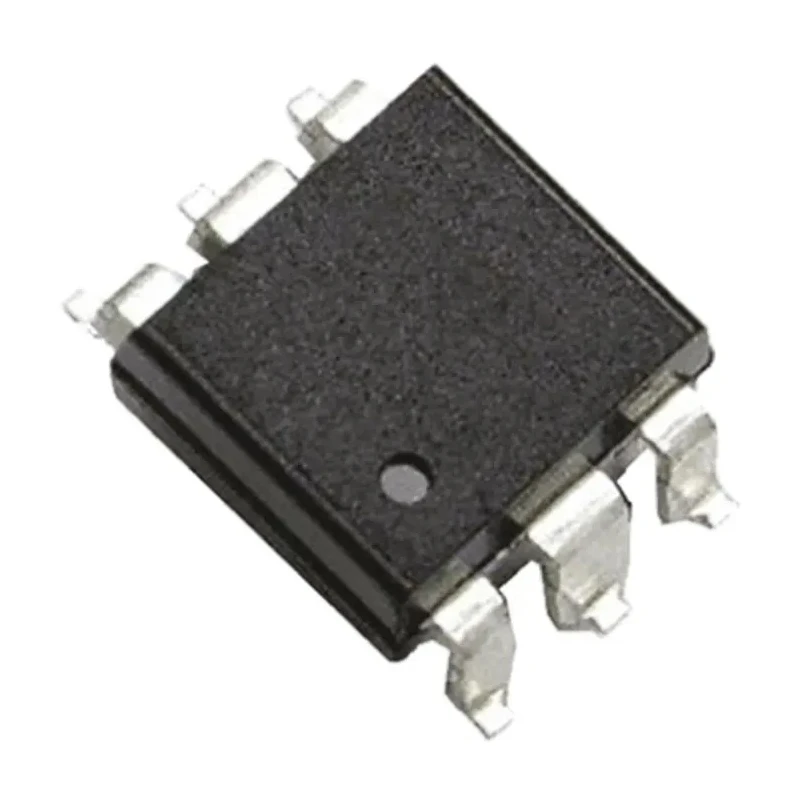

Broadcom ASSR-5211 Series Solid State Relay PCB Mount 0.2 A Load 600 V Load 1.7V Control ASSR-5211-301E

Broadcom ASSR-5211-301E solid state relay, part of the ASSR-5211 series, is designed for PCB mounting applications requiring compact and reliable switching capabilities. This relay supports a maximum load current of 0.2 A and can handle load voltages up to 600 V. It utilizes a DIP-6 package type with a 6-pin terminal configuration that facilitates easy mounting and wiring on printed circuit boards.

The relay operates within a broad temperature range from -40°C to +85°C, making it suitable for industrial, automation, and control systems where environmental conditions vary. Its SPST contact configuration and on-state resistance of 10 ohms ensure efficient and consistent electrical performance with minimal energy loss.

Equipped with a photo MOSFET output stage, the ASSR-5211-301E provides fast switching with low electrical noise, enhancing signal integrity in automation and signal conditioning circuits. The control input voltage ranges from 1.1 V to 1.7 V, offering precise control signals for reliable operation.

Compliance with IEC, CSA, UL, and RoHS standards confirms its suitability for global markets, adhering to safety and environmental requirements. The relay exhibits extremely low off-state leakage current of 1 µA, reducing standby power consumption.

Designed for PCB mount with DIP-6 package type for easy integration. Maximum load current of 0.2 A ensures reliable switching in low power circuits. Supports load voltage and minimum load voltage of 600 V, ideal for high voltage applications.

Control voltage range of 1.1 V to 1.7 V allows sensitive input triggering. Features 6-pin terminal type and SPST contact configuration for straightforward wiring. On-state resistance is 10 ohms, providing efficient current flow.

Operates reliably between -40°C to +85°C temperature range suitable for diverse environments. Complies with IEC, CSA, UL, and RoHS standards ensuring safety and environmental compliance. Low off-state leakage current of 1 µA minimizes power losses in off condition.

Photo MOSFET output type enables high-speed switching and low electrical noise.

This solid state relay is ideal for use in industrial automation, control systems, signal conditioning, and other electrical applications requiring noiseless, quick switching with high durability. Its compact DIP-6 form factor and standardized interface make it a versatile component for electronics manufacturers and system integrators.
