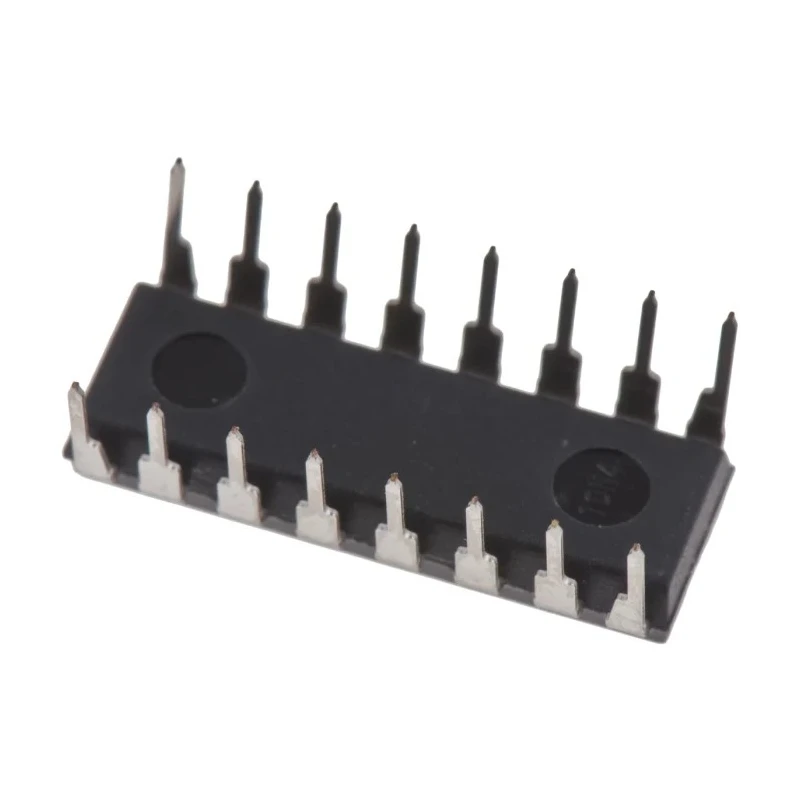

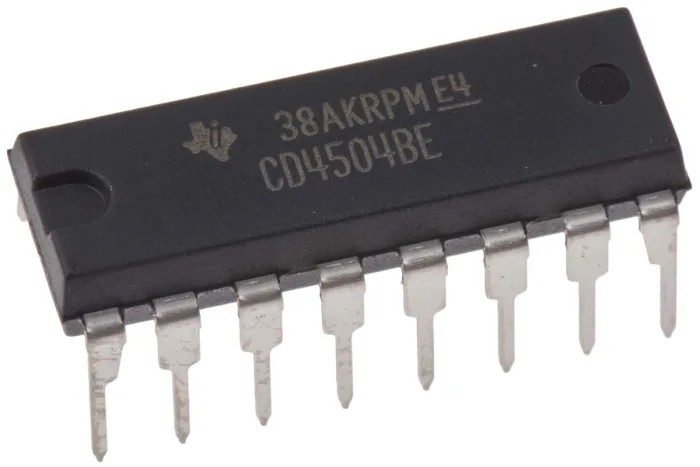

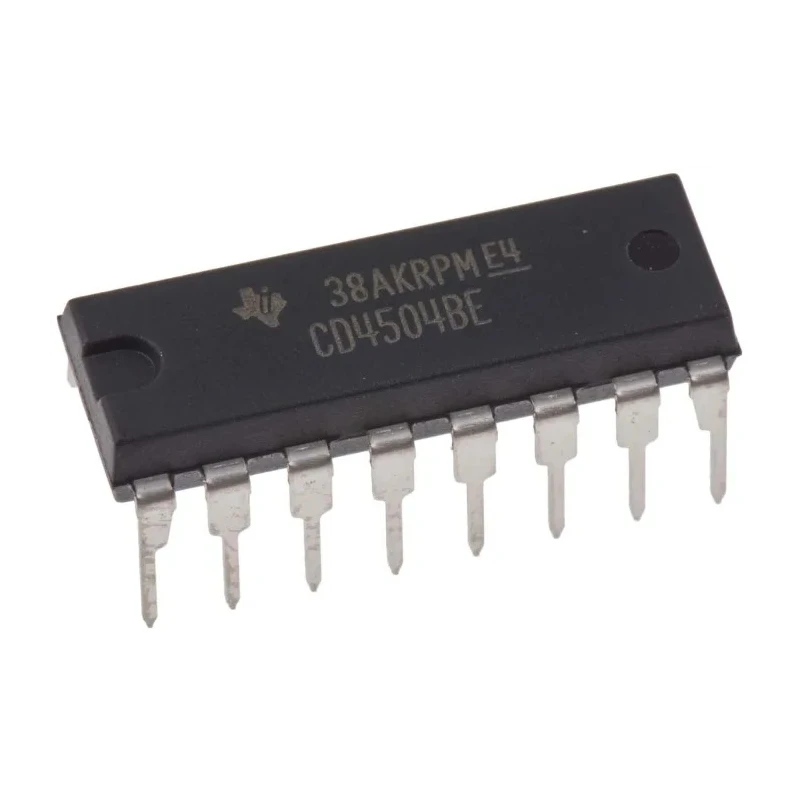

Texas Instruments Voltage Level Shifter 4 Elements TTL to CMOS Uni-Directional 16-Pin PDIP CD4504BE

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments Voltage Level Shifter 4 Elements TTL to CMOS Uni-Directional 16-Pin PDIP CD4504BE

Name: Texas Instruments Voltage Level Shifter 4 Elements TTL to CMOS Uni-Directional 16-Pin PDIP CD4504BE
Brand: Texas Instruments
SKU: 212518
Price: 0.81 USD
Availability: InStock



Category Voltage Level Shifter Brand Texas Instruments Condition New

Specifications

Country of Origin	Malaysia
Brand	Texas Instruments
Height	4.57mm
Length	19.3mm
Model	CD4504BE
Mount Type	Through Hole
Output type	TTL/CMOS
Series	CD4504B
Maximum Operating Temperature	125°C
Package Type	PDIP
Minimum Operating Temperature	-55°C
Pin Count	16
Number of Elements per Chip	4
Maximum Supply Voltage	18V
Logic Family	4000
Logic Function	Voltage Level Shifter
Minimum Supply Voltage	5V
Maximum High Level Output Current	-4.2mA
Maximum Propagation Delay Time @ CL	280ns
Direction Type	Uni-Directional
Maximum Low Level Output Current	4.2mA
Translation	TTL to CMOS, CMOS
Wide operating voltage range	3 to 18V

Key Features

Operates over a wide voltage range of 3 to 18 volts to support different power requirements.
Maximum propagation delay time of 280 nanoseconds ensures fast signal translation.
Supports a maximum low-level output current of 4.2mA and maximum high-level output current of -4.2mA.
Designed for through-hole mounting with a standard PDIP package type and 16 pins for easy PCB integration.
Operational temperature range from -55°C to 125°C provides reliability in harsh environments.
Uni-directional voltage level shifting suitable for TTL to CMOS translation applications.
Compact dimensions with 19.3mm length and 4.57mm height for space-sensitive circuits.
Manufactured in Malaysia ensuring quality standards compliance.

Product Description

Texas Instruments CD4504BE is a uni-directional Voltage Level Shifter featuring 4 independent elements designed to translate TTL signals to CMOS compatible levels. This IC belongs to the 4000 series CMOS logic family known for its wide operating voltage and robust performance.

With a maximum propagation delay of 280ns and wide supply voltage range from 3V to 18V, it is suitable for a variety of industrial, laboratory, and electronic device applications requiring reliable level shifting.

The device is housed in a 16-pin PDIP package supporting through-hole mounting, facilitating easy integration into PCB designs. It operates reliably within a temperature range of -55°C to 125°C, making it ideal for environments with varying thermal conditions.

Texas Instruments CD4504BE features maximum output currents of ±4.2mA, guaranteeing stable signal driving capability compatible with TTL and CMOS logic levels. Wide operating voltage range of 3 to 18 volts for flexibility.

Fast signal propagation with a 280ns delay time for efficient data transfer. Through-hole PDIP package with 16 pins providing simple mounting options. Temperature tolerance from -55°C to 125°C for industrial robustness. Uni-directional translation supports TTL to CMOS level shifting requirements.

Compact size suitable for dense circuit board layouts. Manufactured in Malaysia ensuring quality and reliability standards compliance. This voltage level shifter IC is widely used in electronic components manufacturing, power and connector modules, laboratory instrumentation, and semiconductor applications.
