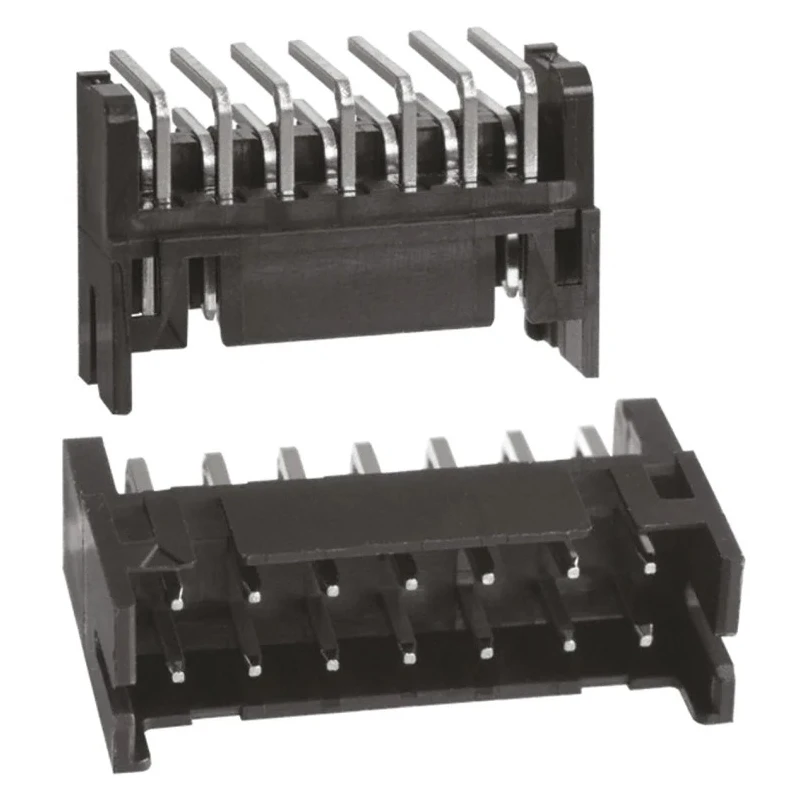

Hirose DF11 Series Right Angle Through Hole PCB Header, 14 Contacts, 2 mm Pitch, 2 Row, Shrouded

Free Delivery in India | Lowest Global Shipping Charges

Hirose DF11 Series Right Angle Through Hole PCB Header, 14 Contacts, 2 mm Pitch, 2 Row, Shrouded

Name: Hirose DF11 Series Right Angle Through Hole PCB Header, 14 Contacts, 2 mm Pitch, 2 Row, Shrouded
Brand: Hirose
SKU: 212416
Price: 0.91 USD
Availability: InStock



Category PCB Headers Brand Hirose Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Hirose
Orientation	Right Angle
Current	2A
Model	DF11
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Brass
Series	DF11
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-30°C
Number of Rows	2
Pitch	2mm
Contact Plating	Tin
Number of Contacts	14
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board, Wire-to-Board

Key Features

Compact double row connector design saving PCB space.
Housing made of durable polyamide material.
Rated for 2A current and 250V voltage applications.
Right angle orientation suitable for versatile board-to-board and wire-to-board use.
Shrouded design with guide ribs to prevent mis-mating.
Brass contacts plated with tin for reliable conductivity.
Mount type is through hole with solder termination.
Operating temperature range from -30°C to 85°C.

Product Description

Hirose DF11-14DP-2DS(24) is a right angle through hole PCB header connector from the DF11 series, designed with 14 male contacts arranged in two rows at a 2 mm pitch. The compact shrouded housing made of polyamide provides robustness and protection against incorrect insertion, featuring guide ribs and a locking mechanism for secure mating.

The brass contacts are plated with tin to assure excellent electrical performance and reliability under rated conditions of 2A current and 250V voltage. Its through hole mounting and solder termination type make it compatible with standard PCB assembly methods.

This PCB header operates efficiently within a temperature range of -30°C to +85°C, making it suitable for a wide array of industrial and commercial electronics, including digital cameras, LCD displays, and various portable and embedded devices requiring multiple signal lines in limited spaces.

Compact double row connector design saving PCB space. Durable polyamide housing material. Rated for 2A current and 250V voltage applications. Right angle orientation for flexible circuit assembly. Shrouded design with guide ribs to prevent incorrect mating.

Brass contacts with tin plating for conductivity and corrosion resistance. Through hole mount with solder termination. Operating temperature range from -30°C to 85°C. Locking mechanism for secure, stable connections. Ideal for compact electronic devices and signal multiplexing.

This connector is suitable for industrial electronics manufacturing, consumer electronics assembly, automotive electronic modules, and other electronics requiring reliable, compact PCB header connectors.
