Molex RJ11 Connector Female Surface Mount Cat3 Unshielded Vertical 1 Port 6 Way

Free Delivery in India | Lowest Global Shipping Charges

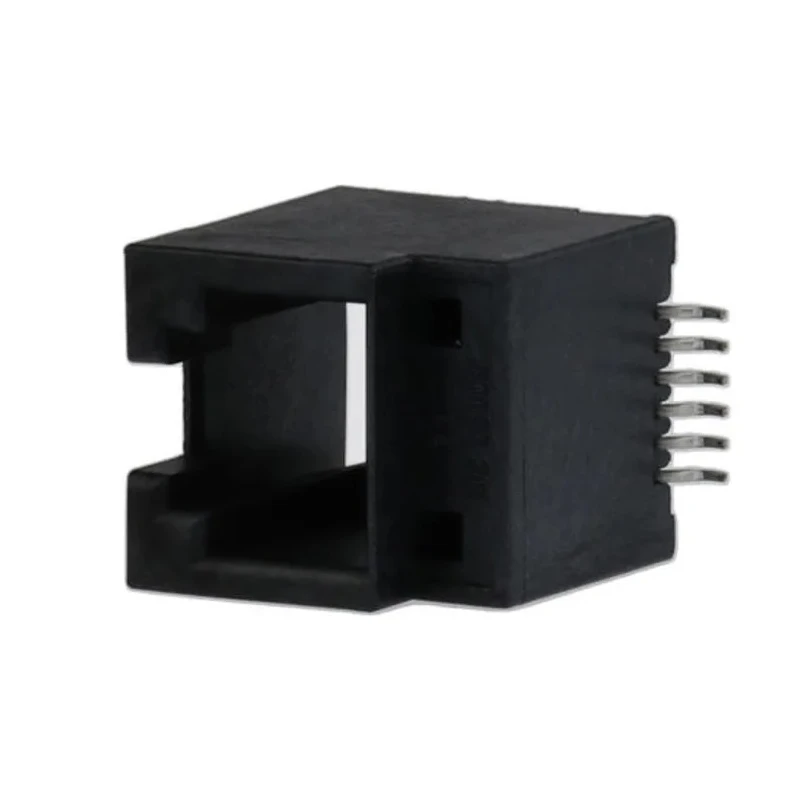

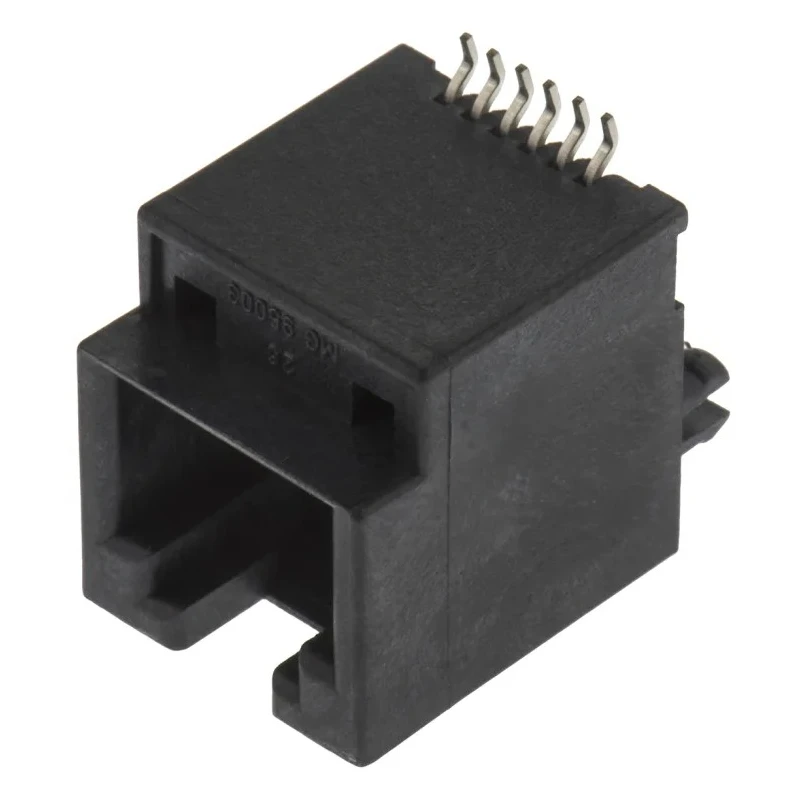

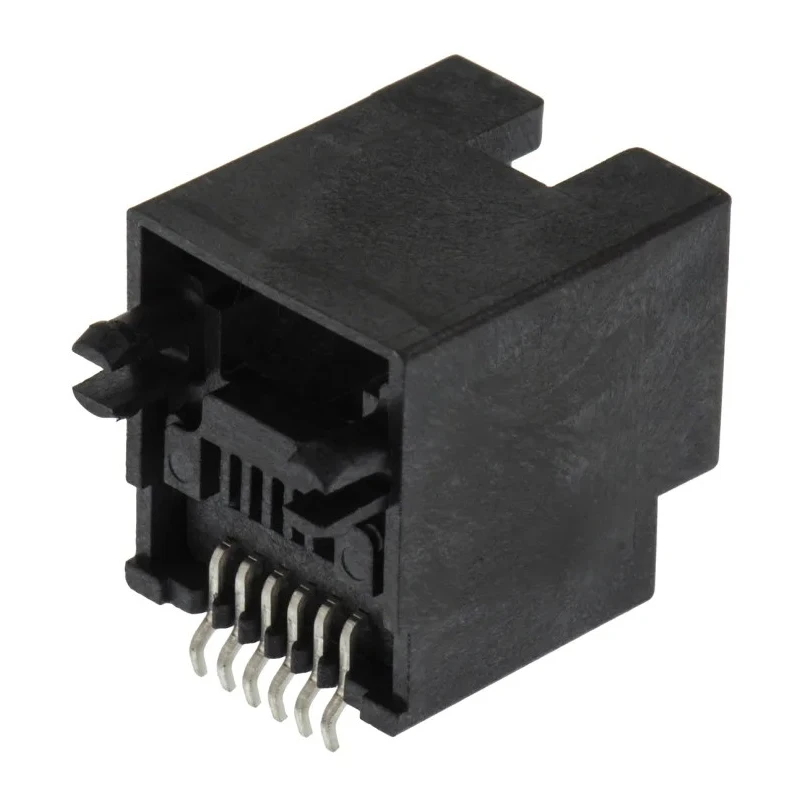

Molex RJ11 Connector Female Surface Mount Cat3 Unshielded Vertical 1 Port 6 Way

Name: Molex RJ11 Connector Female Surface Mount Cat3 Unshielded Vertical 1 Port 6 Way
Brand: Molex
SKU: 182375
Price: 1.67 USD
Availability: InStock



Category Connector Brand Molex Condition New

Specifications

Country of Origin	India
Brand	Molex
Orientation	Vertical
Length	13.21mm
Model	RJ11
Depth	15.08mm
Connector Type	Modular Jack
Number Of Ways	6
Width	15.7mm
Mount Type	Surface
Contact Material	Brass
Series	95503
Number Of Ports	1
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Shield Type	Unshielded
Contact Plating	Gold over Nickel
Connector Gender	Female
LAN Category	Cat3
Ethernet Connector Type	RJ11

Key Features

Features a vertical mount design that optimises space utilisation.
Unshielded construction for simplified installation and reduced complexity.
Brass contacts provide durability and robust connectivity.
Gold plating over nickel resists oxidation to ensure long-lasting performance.
Compatible with 6P6C wiring configurations for versatile applications.
Meets a broad operating temperature range from -40°C to +85°C.
Designed for surface mounting in telecommunications, automation, and network interfaces.
Supports up to 750 mating cycles for reliable durability.

Product Description

Molex RJ11 Connector Female Surface Mount Cat3 Unshielded Vertical 1 Port 6 Way model RJ11 is engineered for reliable telecommunications and network connection applications. It offers a surface mounting design with dimensions of 13.21mm length, 15.08mm depth, and 15.7mm width, making it suitable for compact electronic devices and PCB installations.

This unshielded modular jack includes brass contacts with gold over nickel plating, ensuring excellent conductivity and resistance to oxidation. Its vertical orientation effectively utilises space and simplifies installation. Rated for a temperature range from -40°C to 85°C, it performs reliably in various environments.

Designed to support 6P6C wiring and compatible with Cat3 LAN signals, this connector can sustain up to 750 mating cycles and tolerates a maximum voltage of 125V DC. The connector terminates via solder and is intended for surface mounting, facilitating straightforward attachment on PCBs or surfaces.

Its applications include use in telecommunications equipment, network interfaces for automation systems, residential and commercial wiring projects, and other electronics needing dependable RJ11 connectivity.

Vertical mount design allows for efficient use of PCB space. Unshielded for ease of installation and reduced complexity. Durable brass contacts with gold plating to resist corrosion. Supports 6-way, 1-port Cat3 unshielded network connections.

Operating temperature range from -40°C to 85°C for versatile environmental use. Rated for up to 750 mating cycles, providing long-term reliability. Solder termination type ideal for surface mount assemblies. Voltage rating of 125V DC suitable for standard low-voltage applications.

This Molex connector is a dependable solution for industrial, telecommunications, and commercial electronic assembly needs. Explore more Connectors and modules in the Electronics & Electricals section on EnvMart for your technical requirements.
