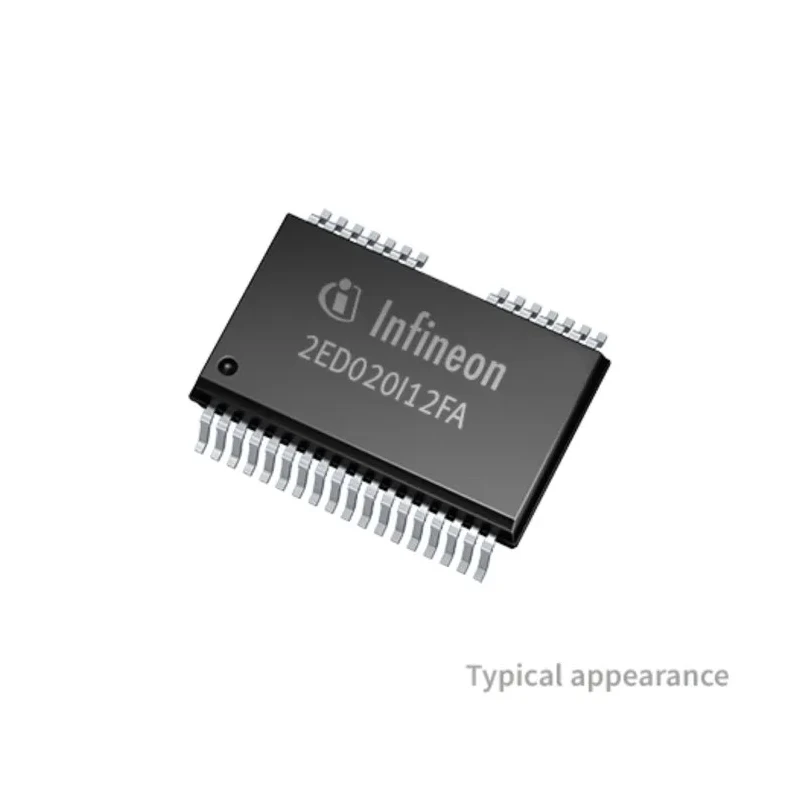

Infineon IGBT Module with 2A Output Current 36-Pin SOIC-36 Package 20V Supply Voltage 2ED020I12FAXUMA2

Infineon 2ED020I12FAXUMA2 is a high-performance IGBT Module featuring dual high-side gate driver IC technology with galvanic isolation in a PG-DSO-36-58 package. It delivers typical output currents of 2A for both source and sink, suitable for driving IGBTs and Silicon Carbide (SiC) MOSFETs efficiently. The module operates reliably within a temperature range from -40°C to 150°C, making it appropriate for demanding automotive and industrial environments.

This device integrates an active Miller clamp, improving switching speed and reducing switching losses, which enhances overall system efficiency. The 36-pin SOIC-36 package configuration supports compact PCB layouts, facilitating integration in power management and semiconductor applications.

Rated at a minimum and maximum supply voltage of 20V, this driver module supports a maximum power supply voltage output side of 28V, ensuring adaptability to various voltage conditions. The fall time of 350 ns enables rapid switching transitions, beneficial for high-frequency applications.

Manufactured in accordance with the DIN EN 60747-5-2 standard, the module meets stringent reliability and safety standards typically required in power management and industrial control systems. It is not intended for automotive-specific standards but excels in general industrial semiconductor use.

Key application areas include industrial motor drives, power inverters, and electronic power control systems where efficient IGBT or SiC MOSFET gate driving is critical. The device's galvanic isolation protects the control circuitry from high voltage and noise, enhancing system robustness and longevity.

Dual channel isolated IGBT driver. 2 A typical source and sink output currents. Active Miller Clamp for improved switching. Operating temperature range from -40°C to 150°C. 36-pin SOIC package for easy PCB integration. Compliance with DIN EN 60747-5-2 standard.

Galvanic isolation in PG-DSO-36-58 package. Fast fall time of 350 ns for high switching frequency. Versatile supply voltage operation at 20 V nominal. Explore extensive semiconductor solutions and compatible industrial components at EnvMart for your power management and electronic design needs.
