Nexperia Switching Diode Single 215 mA 2-Pin 100 V SOD-523 BAS516,135

Free Delivery in India | Lowest Global Shipping Charges

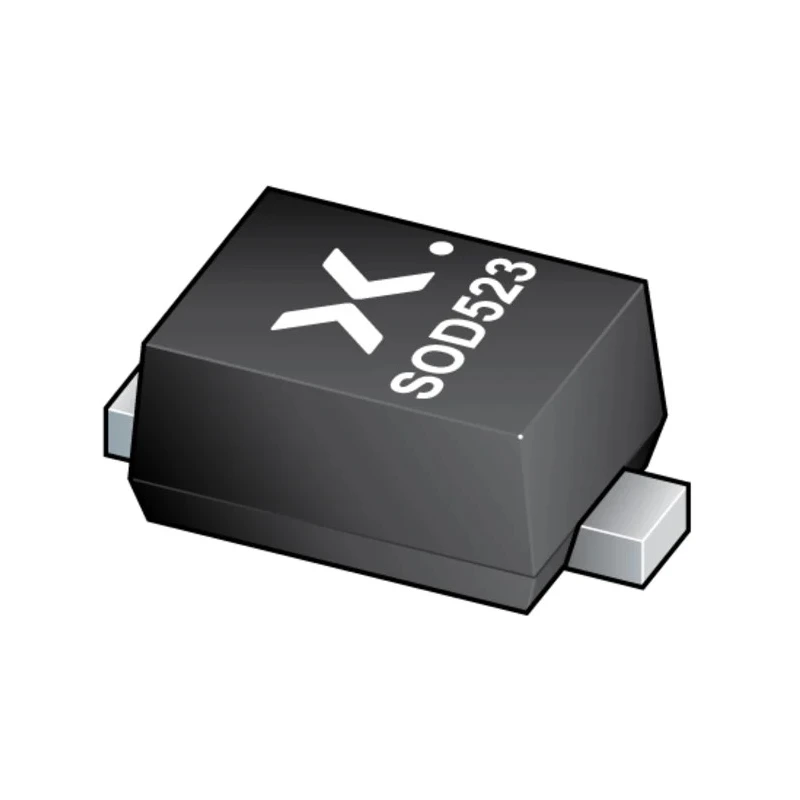

Nexperia Switching Diode Single 215 mA 2-Pin 100 V SOD-523 BAS516,135

Name: Nexperia Switching Diode Single 215 mA 2-Pin 100 V SOD-523 BAS516,135
Brand: Nexperia
SKU: 150465
Price: 0.04 USD
Availability: InStock



Category Switching Diode Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	0.65mm
Length	1.25mm
Model	BAS516,135
Width	0.85mm
Mount Type	Surface
Series	BAS516
Maximum Operating Temperature	150°C
Package Type	SOD-523
Sub Type	Switching Diode
Minimum Operating Temperature	-65°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Peak Non-Repetitive Forward Surge Current Ifsm	4A
Maximum Forward Voltage Vf	1.25V
Peak Reverse Recovery Time trr	4ns
Maximum Forward Current If	215mA
Maximum Peak Reverse Repetitive Voltage Vrrm	100V
Reverse voltage	VR ≤ 100 V
Repetitive peak reverse voltage	VRRM ≤ 100 V
onsemi Switching Diode, Single, 200 mA, 2-Pin 100 V SOD-523 BAS16XV2T1GBrand	onsemi

Key Features

This diode supports fast switching with a peak reverse recovery time of 4 nanoseconds.
Capable of handling a maximum forward current of 215 mA and peak surge current of 4 A.
Encapsulated in a compact SOD-523 surface mount package with 2 pins.
Maximum reverse voltage rating is 100 V with low forward voltage of 1.25 V.
Operates reliably from -65°C up to a maximum temperature of 150°C.
Designed with low leakage current and low capacitance characteristics.
Complies with the automotive standard AEC-Q101 for enhanced reliability.
Ideal for high density circuit designs requiring fast switching diodes.

Product Description

Nexperia BAS516,135 is a single configuration Switching Diode optimized for fast switching applications and surface mount technology.

This diode features a maximum peak reverse repetitive voltage of 100 V and a maximum forward current of 215 mA, supporting transient surge currents up to 4 A for robust operation in demanding circuits.

The device is packaged in a small 2-pin SOD-523 form factor measuring 1.25 mm in length, 0.85 mm in width, and 0.65 mm in height, making it suitable for compact and high-density PCB layouts.

Its fast switching speed, with a peak reverse recovery time as low as 4 nanoseconds, makes it ideal for applications requiring quick response times such as power switching and signal processing.

The diode operates over a wide temperature range from -65°C to 150°C, ensuring durability and performance in harsh industrial and automotive environments. Additionally, it is compliant with automotive standard AEC-Q101, indicating suitability for automotive electronics.

Typical applications include general-purpose switching and high-speed switching circuits in industrial, automotive, and electronic device manufacturing. This diode offers fast switching with a peak reverse recovery time of 4 ns.

Maximum forward current of 215 mA ensures reliable conduction. Low forward voltage drop of 1.25 V reduces power loss. 2-pin SOD-523 package enables surface mounting on compact PCB designs. Supports high peak non-repetitive surge current of 4 A.

Wide operating temperature range from -65°C to 150°C. Automotive grade qualification AEC-Q101 certifies robust use in automotive systems. Low capacitance and leakage current support efficient circuit performance.

Explore a range of high-performance semiconductor components including diodes and switching devices in the Electronics & Electricals category at EnvMart for your industrial and manufacturing needs.
