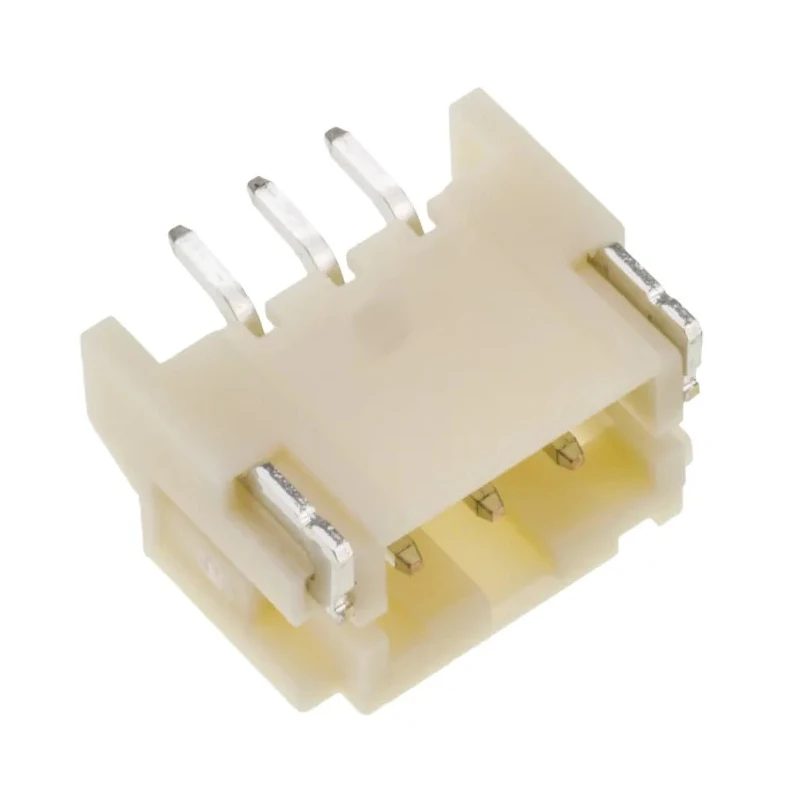

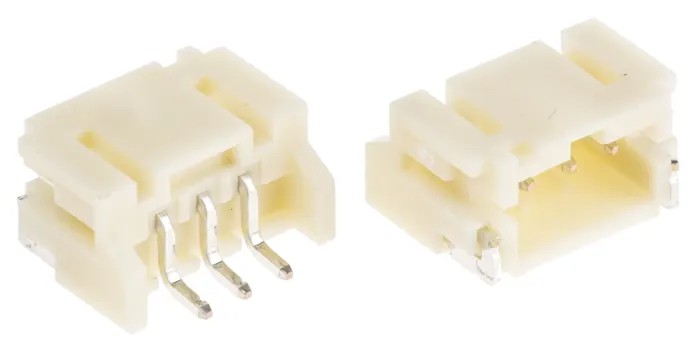

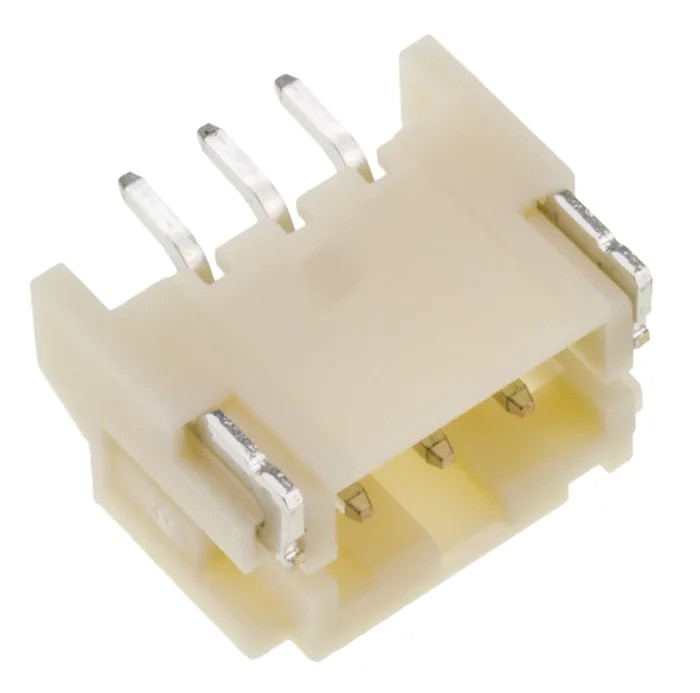

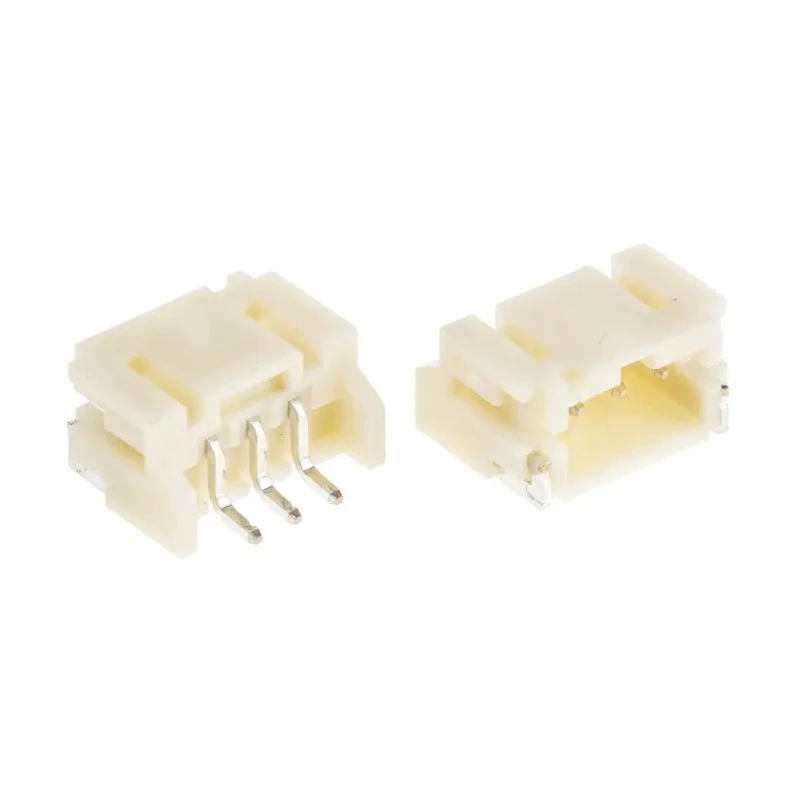

JST PH Series Right Angle Surface PCB Header, 3 Contact(s), 2 mm Pitch, 1 Row, Shrouded S3B-PH-SM4-TB(LF)(SN)

The JST S3B-PH-SM4-TB(LF)(SN) PH Series Right Angle Surface PCB Header is a precision-engineered connector component designed for efficient and reliable wire-to-board connections in electronic applications.

This PCB Header features a 2 mm pitch and three contacts arranged in a single row with a right-angle orientation, making it ideal for surface mounting on printed circuit boards. The header is fully shrouded, which enhances connection security and protects contacts from damage or accidental shorts.

Constructed with copper alloy contacts plated with tin, it ensures excellent electrical conductivity and resistance to corrosion. The connector system supports a current rating of 2 amperes and a voltage rating of 100 volts AC, suitable for a wide range of low power applications.

Designed to operate reliably across a temperature range from -25°C to 85°C, this JST PH Series header accommodates wire sizes ranging from 32 AWG to 24 AWG. The low insertion force side entry design facilitates ease of assembly and maintenance operations.

This component is commonly used in industrial electronics, power connectors, consumer electronics, and various commercial devices requiring dependable PCB wiring. Manufactured in Malaysia, it adheres to stringent quality standards ensuring durability and performance.

The header features a right-angle orientation ideal for PCB surface mounting. Contact material is copper alloy with tin plating for optimal conductivity and corrosion resistance. Supports a current rating of 2A with a voltage rating of up to 100 V ac.

Operates reliably within a temperature range of -25°C to 85°C. Fully shrouded design ensures secure and safe mating of connectors. Suitable for use with wire sizes from 32 AWG to 24 AWG. Low insertion force side entry simplifies assembly and maintenance.

Compact and cost-effective solution for high-density PCB internal wiring. Manufactured in Malaysia with quality standards compliance.

This product is part of the comprehensive JST PH Series lineup known for high density, low cost, and robust wire-to-board solutions. EnvMart offers this and other quality connectors for electronics manufacturing and maintenance needs.
