Nexperia Switching Diode Single 250 mA 100 V 2-Pin SOD-323 BAS316,115

Free Delivery in India | Lowest Global Shipping Charges

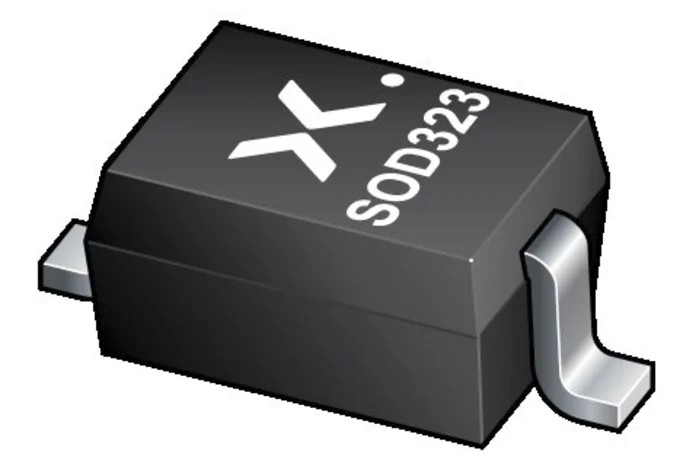

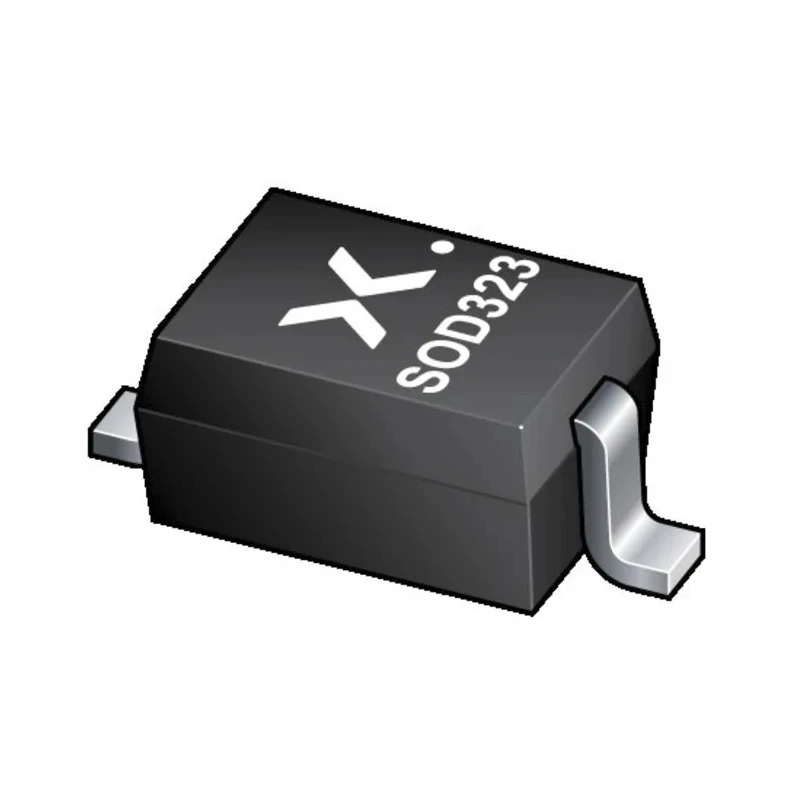

Nexperia Switching Diode Single 250 mA 100 V 2-Pin SOD-323 BAS316,115

Name: Nexperia Switching Diode Single 250 mA 100 V 2-Pin SOD-323 BAS316,115
Brand: Nexperia
SKU: 155577
Price: 0.02 USD
Availability: InStock



Category Switching Diode Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	1.1mm
Length	1.8mm
Model	BAS316,115
Width	1.35mm
Mount Type	Surface
Series	BAS316
Maximum Operating Temperature	150°C
Package Type	SOD-323
Sub Type	Switching Diode
Minimum Operating Temperature	-65°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	400mW
Diode Configuration	Single
Peak Non-Repetitive Forward Surge Current Ifsm	4A
Maximum Forward Voltage Vf	1.25V
Peak Reverse Recovery Time trr	4ns
Maximum Forward Current If	250mA
Maximum Peak Reverse Repetitive Voltage Vrrm	100V
Reverse voltage	VR ≤ 100 V
Repetitive peak reverse voltage	VRRM ≤ 100 V
onsemi Silicon Junction, Single, 200 mA, 2-Pin SOD-323 BAS16HT1GBrand	onsemi

Key Features

High-speed switching with peak reverse recovery time trr ≤ 4 ns.
Small SOD-323 plastic surface-mount package for space-constrained designs.
Maximum forward voltage of 1.25 volts to ensure efficient conduction.
Maximum power dissipation of 400 mW for reliable operation.
Certified to automotive standard AEC-Q101 for quality assurance.
Wide operating temperature range from -65°C to 150°C suits diverse environments.
Low leakage current and low capacitance for improved switching performance.
Peak non-repetitive forward surge current of 4 A for transient robustness.

Product Description

The Nexperia BAS316,115 switching diode is a single diode designed primarily for fast switching applications, housed in a small, space-saving SOD-323 surface-mount package. It supports a maximum forward current of 250 mA and a peak repetitive reverse voltage up to 100 volts, making it suitable for diverse electronic circuits requiring efficient switching performance.

With a peak reverse recovery time of only 4 nanoseconds, this diode minimizes switching losses and electromagnetic interference, valuable in high-speed switching and power management.

The device features a maximum forward voltage of 1.25 volts and can dissipate up to 400 mW power, ensuring stable operation within specified limits. Its extended operating temperature range from -65°C to 150°C allows use in both industrial and automotive environments. It is certified to the automotive standard AEC-Q101, attesting to its quality and reliability for automotive subsystem applications.

This diode offers low capacitance and leakage current, reducing distortion and increasing efficiency in sensitive switching applications. The SOD-323 package measures 1.8 mm length, 1.35 mm width, and 1.1 mm height, making it ideal for compact PCB layouts.

High-speed switching performance with trr ≤ 4 ns. Compact SMD SOD-323 package for space savings. Rated for 250 mA continuous forward current. Reverse voltage rating to 100 V with repetitive peak capability. Power dissipation rating of 400 mW ensures thermal stability.

Automotive quality AEC-Q101 certification. Wide temperature range -65°C to 150°C supports industrial use. Low leakage current and capacitance enhances circuit efficiency. 4 A peak non-repetitive surge current capability.

Manufactured in China for supply chain reliability.

This Nexperia switching diode is suitable for industrial, automotive, telecommunications, and consumer electronic applications where fast, efficient switching is required in limited PCB space.
