| Country of Origin | India |
|---|---|
| Diameter | 1.5mm |
| Brand | STMicroelectronics |
| Height | 1.62mm |
| Length | 3.4mm |
| Model | TMMBAT46FILM |
| Width | 1.62mm |
| Mount Type | Surface |
| Series | TMMBAT46 |
| Maximum Operating Temperature | 125°C |
| Package Type | MiniMELF |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 150mA |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 350A |
| Maximum Forward Voltage Vf | 1V |

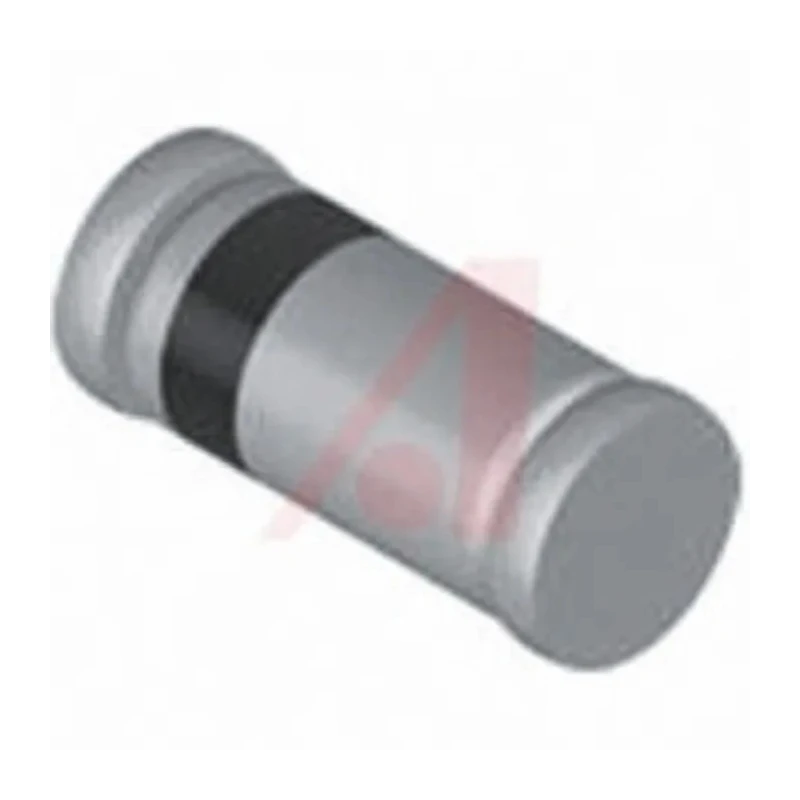

STMicroelectronics TMMBAT46FILM is a surface mount Schottky diode housed in a MiniMELF package, designed for applications requiring efficient diode performance with low forward voltage drop and high-speed switching. Rated for 100 V peak reverse voltage and capable of handling 150 mA continuous forward current, this diode supports robust electronic designs in semiconductor and power management circuits.
The diode features a peak non-repetitive forward surge current of 350 A, ensuring durable performance in transient conditions. Operating temperature range extends from -65°C to 125°C, suitable for diverse industrial and commercial environments. Its minimal peak reverse current of 5 μA contributes to reduced leakage and power loss, enhancing overall circuit efficiency.
With a compact 2-pin MiniMELF surface mount package, measuring 3.4 mm in length and 1.62 mm in width and height, this diode suits high-density PCB layouts. Its 1.5 mm diameter body allows ease of handling and mounting in automated manufacturing processes.
Supports a maximum continuous forward current of 150 mA. Peak reverse repetitive voltage of 100 V for high-voltage applications. Low maximum forward voltage of 1 V minimizes power dissipation. High surge current capacity of 350 A meets transient surge demands.
Wide operating temperature range from -65°C to 125°C supports diverse environments. Minimal peak reverse current of 5 μA reduces leakage currents. Compact MiniMELF package dimensions optimize PCB space. Surface mount type enhances assembly efficiency.
Designed without specific automotive certifications, ideal for consumer and industrial electronics.
This STMicroelectronics Schottky diode is best suited for power rectification, voltage clamping, polarity protection, and high-frequency switching in electronic designs across industrial, consumer electronics, telecommunications, and power supply applications.
