| Country of Origin | India |
|---|---|
| Diameter | 2mm |
| Brand | STMicroelectronics |
| Height | 2mm |
| Length | 4.5mm |
| Model | 1N5711 |
| Width | 2mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-35 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 15mA |
| Peak Reverse Repetitive Voltage Vrrm | 70V |
| Diode Configuration | Single |
| Rectifier Type | Small Signal |
| Peak Reverse Current Ir | 200nA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 15mA |
| Maximum Forward Voltage Vf | 410mV |

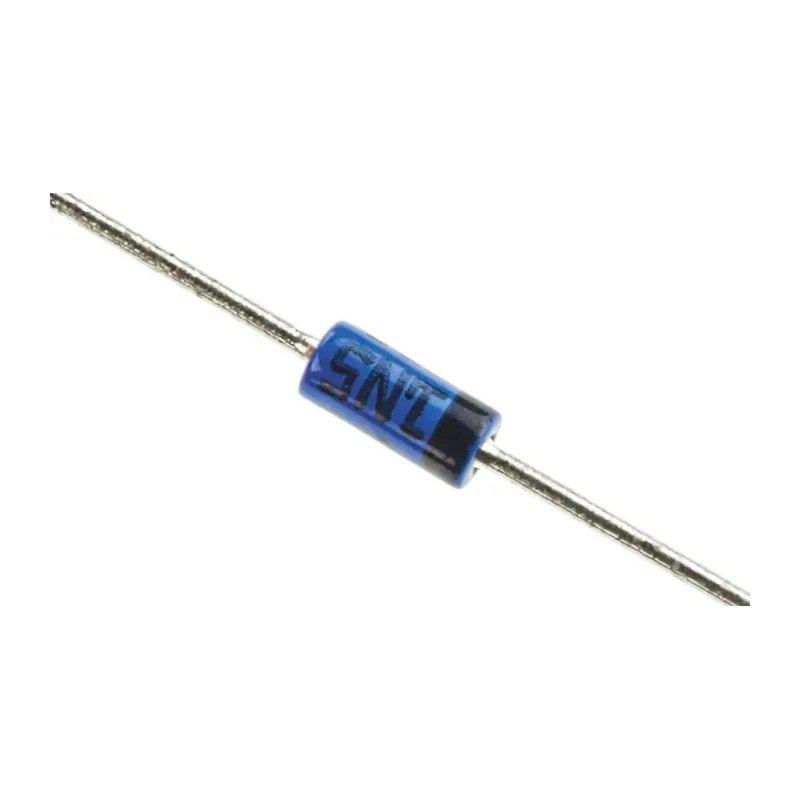

STMicroelectronics 1N5711 is a small signal Schottky diode designed for high power efficiency and density in electronic circuits. It supports a maximum continuous forward current of 15 mA and peak reverse voltage of 70 V, featuring a low forward voltage drop of 410 mV that minimizes power dissipation during conduction. Housed in a DO-35 through-hole package, this diode is compact with 4.5 mm length and 2 mm diameter, allowing easy integration on printed circuit boards.
The diode boasts operational temperature range from -65°C up to 200°C, making it suitable for a variety of industrial, commercial, and laboratory semiconductor applications. Its 2-pin single-diode configuration and low peak reverse current of 200 nA ensure high reliability and low leakage in sensitive circuits.
STMicroelectronics 1N5711 diodes are commonly used in power management, signal rectification, and circuit protection systems found in electronics manufacturing, automation systems, and other precision applications. The Schottky barrier design improves switching speeds and efficiency compared to standard silicon diodes.
Small signal rectifier ideal for high-efficiency switching applications. Compact through-hole DO-35 packaging supports easy PCB mounting. Peak reverse repetitive voltage of 70 volts for robust operation. Maximum continuous forward current rating of 15 milliamps.
Low forward voltage of 410 millivolts reduces power loss. Operates within temperature range from -65°C to 200°C. Single diode configuration with 2 pins and 2 mm diameter. Peak reverse current as low as 200 nanoamperes ensuring minimal leakage.
Length of 4.5 mm and 2 mm width and height dimensions. Designed for discrete semiconductor use in electronics and power applications.
This diode is an essential component for semiconductor assemblies in industrial electronics, power rectifiers, circuit design, and repair operations. It meets standard requirements for reliability but carries no formal certifications.
