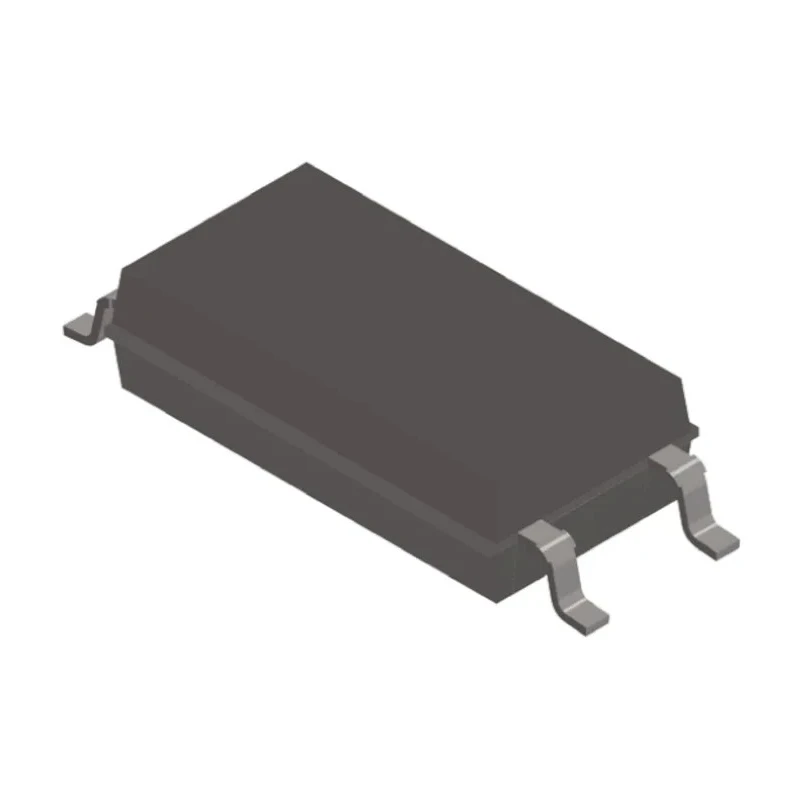

Vishay DC Input Optocoupler Surface Mount 4-Pin LSOP VOL617A-2X001T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VOL617A-2X001T |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | VOL |
| Maximum Operating Temperature | 110°C |
| Package Type | LSOP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Maximum Forward Voltage | 1.5V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 3.5μs |
| Maximum Current Transfer Ratio | 125% |
| Typical Fall Time | 5μs |
| Minimum Current Transfer Ratio | 40% |
Key Features
- Features a 4-pin LSOP surface mount package for compact PCB integration.
- Supports a maximum forward voltage of 1.5 volts for efficient operation.
- Offers up to 5000Vrms isolation voltage for enhanced safety.
- Operates reliably from -55°C to 110°C ambient temperature range.
- Typical rise and fall times of 3.5µs and 5µs respectively for fast switching.
- Maximum input current of 60mA with DC input current type.
- Ensures logic output with a current transfer ratio ranging between 40% and 125%.
- Complies with multiple international safety standards including UL1577 and EN 60950-1.
Product Description
Vishay VOL617A-2X001T DC Input Optocoupler is a high-performance device designed for electrical isolation and signal transmission in sensitive electronics. This optocoupler features a 4-pin LSOP surface mount package, making it suitable for compact PCB layouts in industrial and electronic assemblies.
It provides an isolation voltage up to 5000Vrms, protecting equipment from voltage spikes and ensuring user safety in applications such as switch mode power supplies, industrial controls, programmable logic controllers, and telecommunication systems.
The device operates over a wide ambient temperature range from -55°C to 110°C, maintaining stability and accuracy in harsh environments.
With a maximum forward voltage of 1.5V and a maximum input current of 60mA (DC input), it supports reliable signal transmission with typical rise and fall times of 3.5μs and 5μs respectively.
The optocoupler’s current transfer ratio ranges between 40% and 125%, ensuring compatibility with various logic output requirements. Features a 4-pin LSOP package for surface mounting. Maximum forward voltage of 1.5V for efficient input operation.
High isolation voltage rating of 5kVrms. Wide operating temperature range from -55°C to 110°C. Fast switching with rise time of 3.5μs and fall time of 5μs. Maximum input current rating of 60mA DC. Current transfer ratio from 40% to 125%.
Compliant with UL1577, EN 60950-1, and other international standards. Packaged in tape and reel, ideal for automated manufacturing.
This Vishay optocoupler series is widely used in industrial automation, telecommunications, smart meters, office equipment, and power supply isolation for enhanced safety and reliability.
Explore our Electronics Components category at EnvMart for a broad range of Optocouplers and related devices from trusted brands like Vishay.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay VOL617A-2X001T optocoupler provides an isolation voltage of up to 5000Vrms, ensuring enhanced safety in applications.
This model operates reliably within a temperature range of -55°C to 110°C, making it suitable for harsh environments.
The maximum forward voltage for the VOL617A-2X001T is 1.5 volts, allowing for efficient operation.
The typical rise time is 3.5µs and the fall time is 5µs, enabling fast switching capabilities.
The maximum input current for the VOL617A-2X001T is 60mA, supporting DC input current type.
The current transfer ratio for this optocoupler ranges between 40% and 125%, ensuring compatibility with various logic output requirements.
The Vishay VOL617A-2X001T is packaged in tape and reel, making it suitable for automated manufacturing processes.
This optocoupler features a 4-pin configuration, designed for surface mounting.
The VOL617A-2X001T is a surface mount device, suitable for compact PCB integration.
This optocoupler complies with multiple international safety standards, including UL1577 and EN 60950-1.
The Vishay VOL617A-2X001T belongs to the VOL series, which is designed for electrical isolation and signal transmission.
This model is suitable for applications such as switch mode power supplies, industrial controls, programmable logic controllers, and telecommunication systems.
