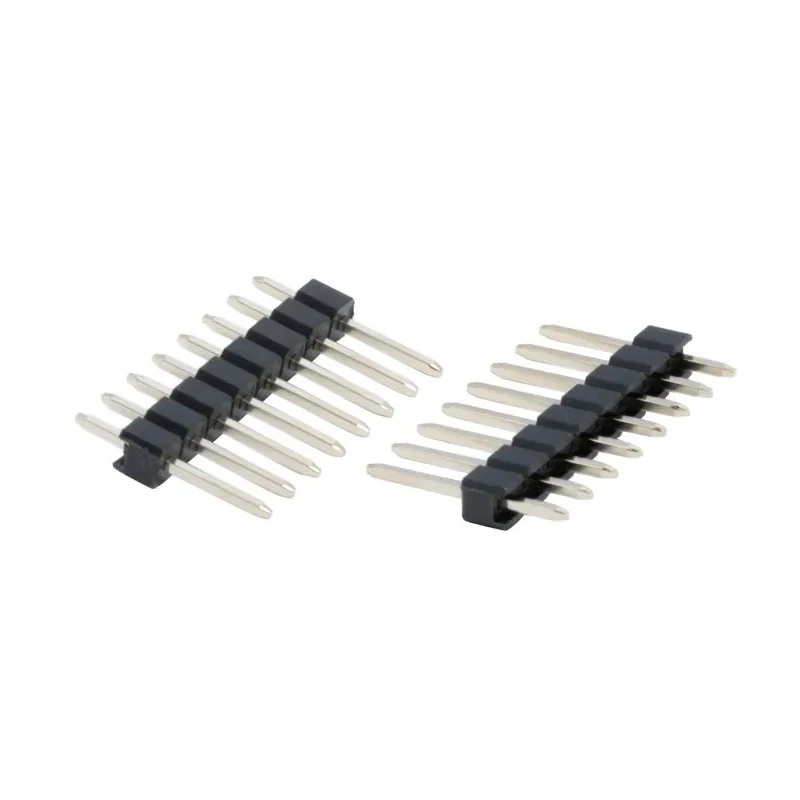

HARWIN M20 Series Straight Through Hole Pin Header 8 Contacts 2.54 mm Pitch 1 Row Unshrouded M20-9990845

Free Delivery in India | Lowest Global Shipping Charges

HARWIN M20 Series Straight Through Hole Pin Header 8 Contacts 2.54 mm Pitch 1 Row Unshrouded M20-9990845

Name: HARWIN M20 Series Straight Through Hole Pin Header 8 Contacts 2.54 mm Pitch 1 Row Unshrouded M20-9990845
Brand: HARWIN
SKU: 210627
Price: 0.35 USD
Availability: InStock



Category PCB Pin Header Brand HARWIN Condition New

Specifications

Country of Origin	India
Brand	HARWIN
Orientation	Straight
Current	3A
Model	M20-9990845
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	M20
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	8
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board, Wire-to-Board
Tail Pin Length	3mm
Mating Pin Length	6.1mm

Key Features

The connector offers a current rating of 3A for reliable electrical performance.
Constructed with a nylon housing material for high temperature resistance and durability.
Gold-plated brass contacts ensure corrosion resistance and optimal conductivity.
Designed for through hole mounting with a straight orientation for easy PCB integration.
Operating temperature range spans from -40°C to 105°C for versatile environmental conditions.
Termination is by solder, with a tail pin length of 3 mm and mating pin length of 6.1 mm.
Unshrouded design facilitates ease of mating with compatible sockets and jumpers.
Compatible with a wide range of embedded PCs, motherboards, and electronic systems.

Product Description

HARWIN M20-9990845 is a high-quality straight through hole pin header connector designed for precise and reliable PCB connections. It features 8 male contacts arranged in a single row with 2.54 mm pitch, making it ideal for electronic assemblies requiring board-to-board or wire-to-board connections.

The connector housing is molded from durable nylon, capable of withstanding reflow soldering processes and operating temperatures ranging from -40°C to 105°C. The brass contacts are gold-plated for enhanced conductivity and corrosion protection, ensuring long-term performance.

This unshrouded pin header supports a current rating of 3 amperes and is designed for through hole mounting with a solder termination style. The tail pins extend 3 mm from the housing, while the mating pins measure 6.1 mm, providing secure and stable connections with compatible M20 series sockets and jumpers.

The M20 series pin headers include versatile configurations for embedded PCs, industrial monitoring, consumer electronics, communication devices, and more. Their castellated housings allow size customization to fit specific design needs while maintaining reliable electrical performance.

The connector offers a current rating of 3A for reliable electrical performance. Constructed with a nylon housing material for high temperature resistance and durability. Gold-plated brass contacts ensure corrosion resistance and optimal conductivity.

Designed for through hole mounting with a straight orientation for easy PCB integration. Operating temperature range spans from -40°C to 105°C for versatile environmental conditions. Termination is by solder, with a tail pin length of 3 mm and mating pin length of 6.1 mm.

Unshrouded design facilitates ease of mating with compatible sockets and jumpers. Compatible with a wide range of embedded PCs, motherboards, and electronic systems.

This pin header is an essential component for electronic manufacturing, industrial automation, and commercial electronics, providing dependable connectivity and robust mechanical stability. Explore more HARWIN connectors and pin headers from EnvMart for your design and production needs.

Explore more products in our PCB Pin Header category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The HARWIN M20-9990845 pin header has a current rating of 3A, ensuring reliable electrical performance.

This model features a pitch of 2.54 mm and includes 8 male contacts arranged in a single row.

The connector is constructed with a nylon housing for high temperature resistance, and the contacts are made of brass with gold plating for enhanced conductivity and corrosion resistance.

The operating temperature range for this pin header spans from -40°C to 105°C, making it suitable for various environmental conditions.

Termination for this model is by solder, which is typical for through hole mounting applications.

The tail pins of this connector extend 3 mm from the housing, while the mating pins measure 6.1 mm in length.

The HARWIN M20-9990845 is designed as an unshrouded pin header, facilitating ease of mating with compatible sockets and jumpers.

This connector is designed for through hole mounting, which allows for secure PCB integration.

This pin header is suitable for a variety of applications including embedded PCs, industrial monitoring, consumer electronics, and communication devices.

The HARWIN M20-9990845 supports both board-to-board and wire-to-board connector systems.

The connector is manufactured in India, as indicated by its country of origin.

This model features 1 row of contacts, making it a single-row pin header.
