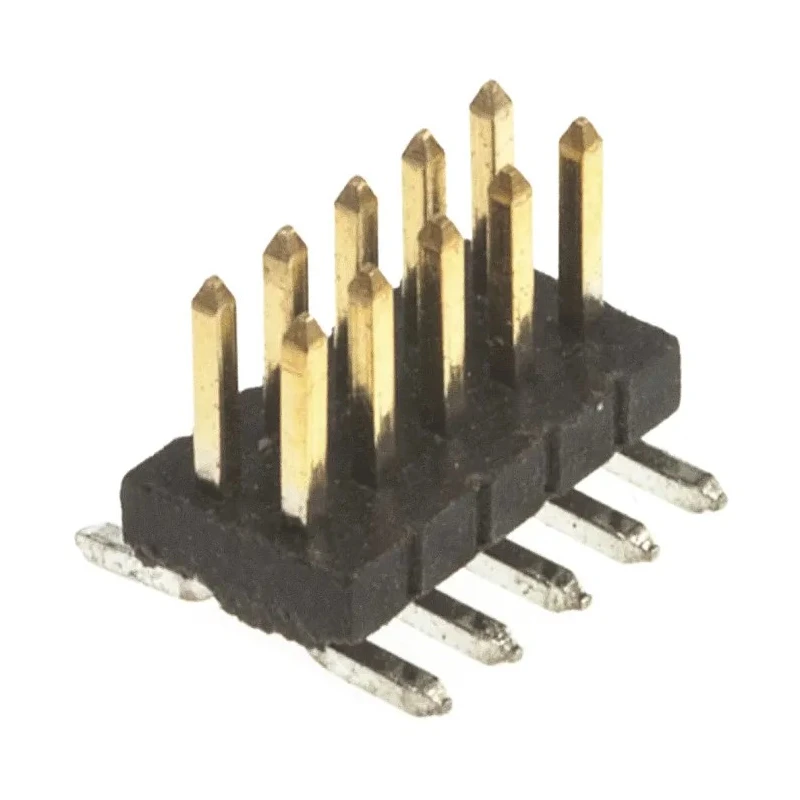

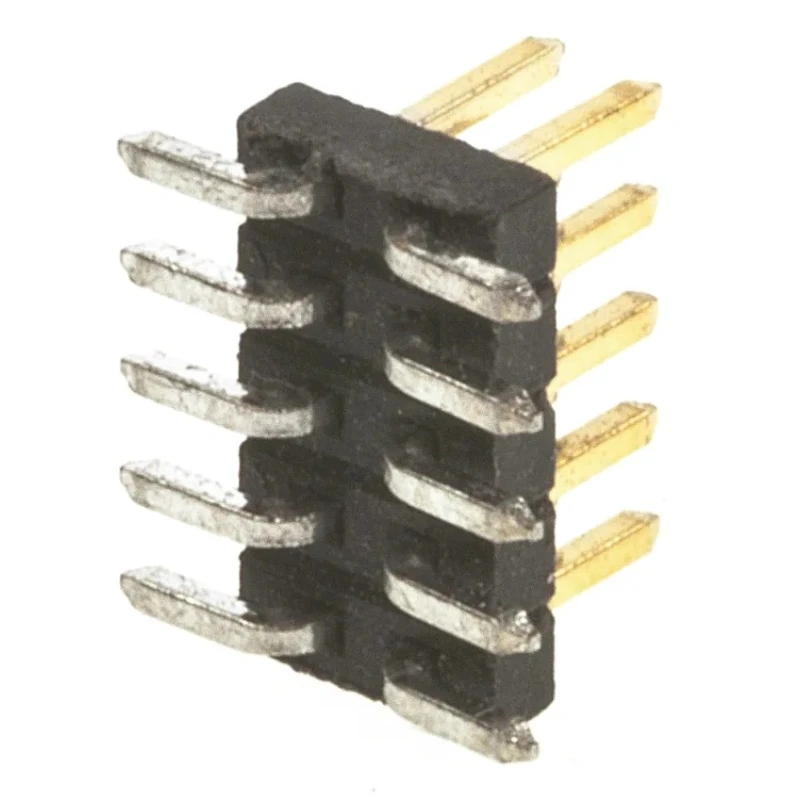

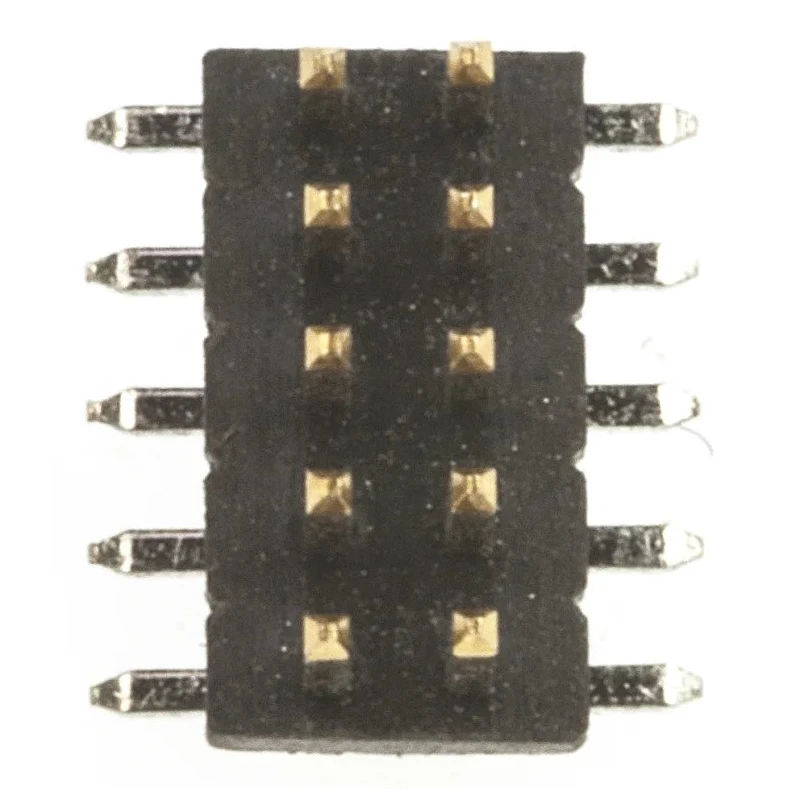

HARWIN Archer M50 Series Straight Surface Pin Header 10 Contacts 1.27 mm Pitch 2 Row Unshrouded M50-3600542

HARWIN M50-3600542 Archer M50 Series Straight Surface Pin Header is a high-quality PCB connector designed for reliable connections in electronic assemblies. It features 10 gold-plated copper alloy male contacts arranged in 2 rows with a 1.27 mm pitch, delivering a current rating of 1 ampere per contact.

The unshrouded, straight orientation housing is fabricated from durable nylon, supporting a wide operating temperature range from -40°C to 105°C, ensuring stable performance under varying environmental conditions. Its surface mount design facilitates straightforward integration on PCB assemblies and supports solder termination for firm mechanical and electrical connections.

Part of the Archer M50 series, this pin header offers design flexibility, including the ability to be cut to size, making it suitable for a variety of configurations including horizontal or vertical orientations. This compact connector is engineered for board-to-board and wire-to-board connection systems commonly required in industrial control systems, medical diagnostic devices, navigation and communication equipment, and automotive electronics.

Typical applications include use in sonar displays, telecom and datacom equipment, test and measurement instruments, and diagnostic machinery like X-Ray systems. The gold plating on contacts provides excellent conductivity and resistance to corrosion, enhancing reliability in critical applications.

Key features include a 2.3 mm tail pin length, ensuring secure solder joints, and a 3 mm mating pin length for strong connector engagement. The unshrouded design allows easy access and compatibility with compatible jumper and cable sockets.

The header uses gold-plated copper alloy contacts ensuring excellent conductivity and corrosion resistance. Housing is made of durable nylon material resistant to operating temperatures from -40°C to 105°C. Surface mount, unshrouded design allows flexibility in PCB integration with a straight orientation.

Termination type is solder, compatible with standard PCB assembly processes. The contact tail length is 2.3 mm and mating pin length is 3 mm for secure connections. Suitable for industrial, medical, communication, and automotive electronic applications.

Compact design supports space-saving on PCBs and can be cut to size. Explore EnvMart's range of high-quality PCB connectors and related electronics components for your industrial and commercial needs.

Explore more products in our PCB Pin Header category.
