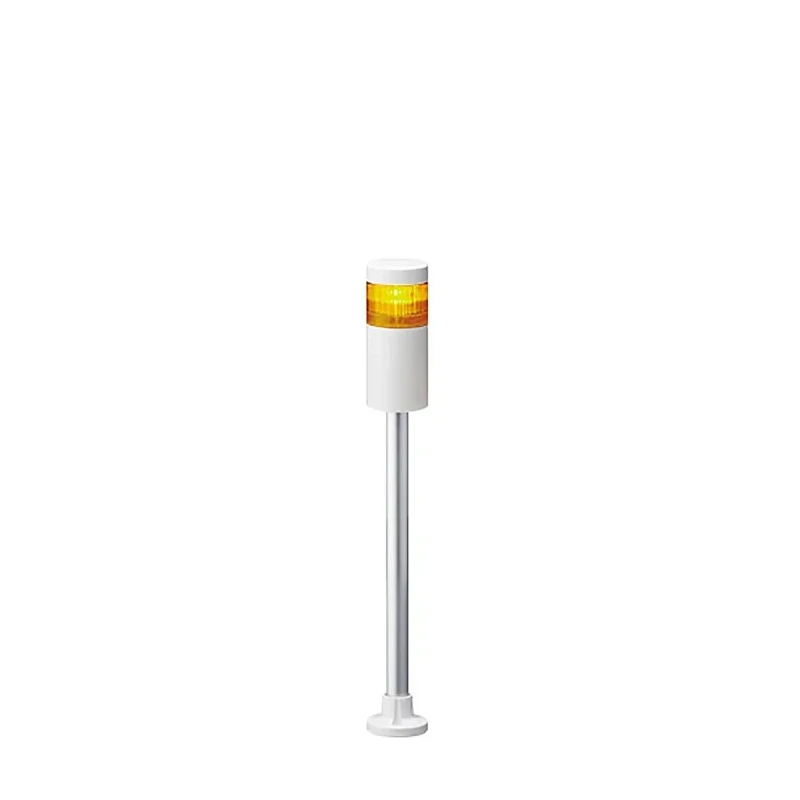

Patlite LR6 Series Signal Tower Buzzer Unit 1 Light 24V DC, LED Bulb, Pole Mount LR6-102PJNW-Y

Free Delivery in India | Lowest Global Shipping Charges

Patlite LR6 Series Signal Tower Buzzer Unit 1 Light 24V DC, LED Bulb, Pole Mount LR6-102PJNW-Y

Name: Patlite LR6 Series Signal Tower Buzzer Unit 1 Light 24V DC, LED Bulb, Pole Mount LR6-102PJNW-Y
Brand: PATLITE
SKU: 150311
Price: 178.79 USD
Availability: InStock



Category Signal Tower Brand PATLITE Condition New

Specifications

Country of Origin	Japan
Brand	Patlite
Height	429mm
Model	LR6-102PJNW-Y
IP Rating	IP65
Mount Type	Pole
Bulb Type	LED
Series	LR6
Maximum Operating Temperature	50°C
Current Type	DC
Current consumption	250mA
Minimum Operating Temperature	-20°C
Base Diameter	60mm
Terminal type	Terminal Block
Standards/Approvals	UL 508, KC (KN 61000-6-4,KN 61000-6-2), EMC Directive (EN 61000-6-4,EN 61000-6-2), RoHS Directive (EN 50581), FCC Part 15 Subpart B Class A, CSA-C22.2 No. 14
Maximum Supply Voltage	24V
Housing Colour	Off-White
Light Effect	Steady
Minimum Sound Level	85dB
Sounder Type	Buzzer Unit
Maximum Sound Level	90dB
Number of Light Elements	1
Connection Cable Length	1m
Multifunction	Yes, Yes

Key Features

Features a steady LED light bulb providing bright, even illumination.
Operates at 24V DC with low current consumption of 250mA.
Compact pole mount design with an off-white housing for robust performance.
Built to withstand temperatures from -20°C to 50°C for versatile use.
Rated IP65 for water and dust resistance in harsh environments.
Includes a 1 meter connection cable with terminal block type connection.
Sounder type is buzzer unit emitting 85-90 dB omni-directional sound.
Complies with UL 508, KC, EMC Directive, RoHS, FCC, and CSA standards.

Product Description

Patlite LR6-102PJNW-Y Signal Tower Buzzer Unit is a compact, next-generation visual and audible signaling device designed for industrial and automation applications. It features one LED light element housing within an off-white pole mount enclosure with a height of 429mm and a 60mm base diameter.

This buzzer unit operates on 24V DC power, consuming 250mA current, and emits a minimum sound level of 85dB with a maximum up to 90dB. The steady light effect and loud buzzer provide effective signaling for machine status or hazard alerts.

The device is rated IP65, ensuring protection against water and dust ingress, and is suitable for use in harsh environmental conditions with an operating temperature range of -20°C to 50°C. It includes a 1-meter cable terminated with a terminal block for secure electrical connection.

The modular design utilizes the "Twist and Lock" system, enabling easy configuration and replacement of LED/sound modules. Its robust build meets various standards including UL 508, KC (KN 61000-6-4, KN 61000-6-2), EMC Directive (EN 61000-6-4, EN 61000-6-2), RoHS Directive (EN 50581), FCC Part 15 Subpart B Class A, and CSA-C22.2 No. 14.

Manufactured in Japan, this signal tower buzzer unit is ideal for industrial automation, manufacturing plants, water treatment facilities, HVAC systems, and commercial equipment requiring reliable status indication and audible alerts.

Features a steady LED light bulb providing bright, even illumination. Operates at 24V DC with low current consumption of 250mA. Compact pole mount design with an off-white housing for robust performance. Built to withstand temperatures from -20°C to 50°C for versatile use.

Rated IP65 for water and dust resistance in harsh environments. Includes a 1 meter connection cable with terminal block type connection. Sounder type is buzzer unit emitting 85-90 dB omni-directional sound. Complies with UL 508, KC, EMC Directive, RoHS, FCC, and CSA standards.
