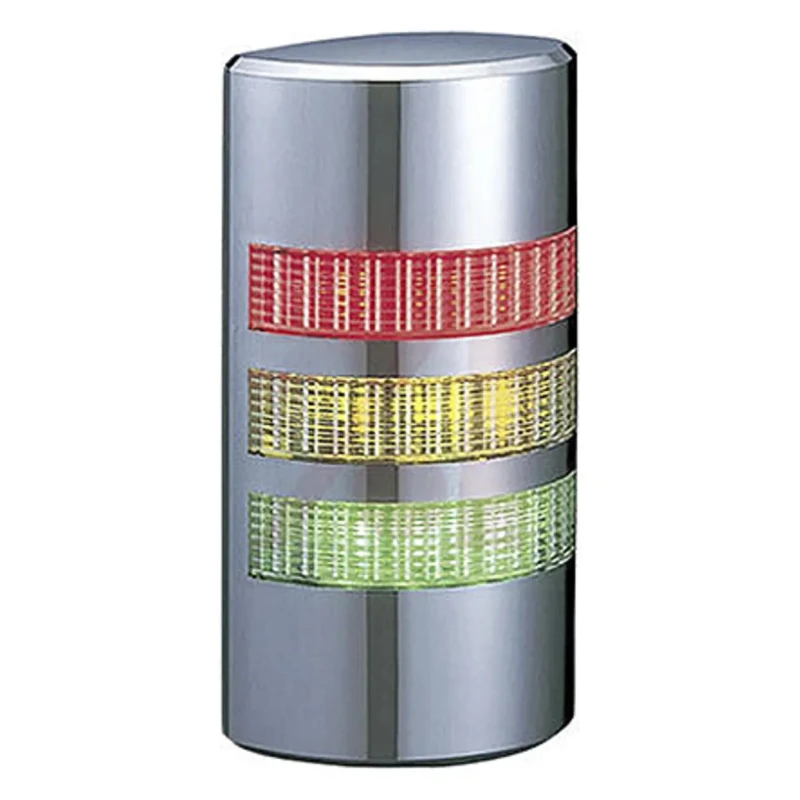

Patlite WE Series 3-Light Clear Signal Tower, LED, 24V AC/DC, Wall Mount, No Sounder, WE-302-RYG
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Patlite |
| Height | 176mm |
| Model | WE-302-RYG |
| IP Rating | IP65 |
| Mount Type | Wall |
| Bulb Type | LED |
| Series | WE |
| Maximum Operating Temperature | 60°C |
| Current Type | AC/DC |
| Current consumption | 35mA |
| Minimum Operating Temperature | -30°C |
| Base Diameter | 90mm |
| Terminal type | Cable |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | RoHS, CE |
| Maximum Supply Voltage | 24V ac/dc |
| Housing Colour | Silver |
| Light Effect | Steady |
| Sounder Type | No Sounder Component |
| Maximum Sound Level | 90dB |
| Number of Light Elements | 3 |
| Connection Cable Length | 1m |
| Dust and water resistance rating of IP65 (except for FB type | IP54) |
Key Features
- Equipped with three-light elements for clear multi-status indication.
- Operates on 24V AC/DC, ideal for factory and automation control panels.
- Durable LED illumination for extended service life and energy efficiency.
- Wall mount design simplifies installation without mounting brackets or extension poles.
- No sounder component for silent operation in noise-sensitive environments.
- Vertical-cut clear lens maximizes light visibility from multiple angles.
- Ingress protection of IP65 for dust and water resistance.
- Multifunction capability supports steady or flashing operation.
Product Description
The Patlite WE-302-RYG is a high-visibility signal tower designed for clear multi-status indication in industrial automation environments. This 3-layer tower uses energy-efficient LEDs and operates on a versatile 24V AC/DC power supply, making it compatible with a wide range of control panels and PLCs.
This model features red, yellow, and green lenses in a vertically stacked configuration, all housed behind clear covers for enhanced light diffusion and visibility. The unit offers a wall-mounted design, allowing it to be directly installed to equipment or panels without additional mounting brackets or extension poles.
With no sounder component, the WE-302-RYG is suitable for environments where visual alerts are required without additional noise, such as office areas adjacent to production or noise-restricted industrial facilities. Its IP65 ingress protection rating ensures reliable performance even in dusty or wet conditions.
The tower’s durable polycarbonate housing resists impact and heat, extending longevity even in demanding factory conditions. Multifunction operation is supported, allowing users to select steady or flashing light modes per tier, and the unit is compatible with direct PLC connection (NPN/PNP, 24V DC).
Three-light signal tower with LED technology for long-lasting performance. Designed for wall mounting, eliminating the need for extra installation hardware. Silent operation - no integrated sounder - ideal for noise-conscious areas.
Vertically cut clear lens ensures illumination is vivid from all sides. Meets RoHS, CE, and ATEX standards for industrial safety and conformity. Operating temperature from -30°C to 60°C to suit most factory and automation environments.
Silver polycarbonate body for corrosion and heat resistance.
Commonly used in electronics assembly lines, machine shops, packaging plants, and process industries, the WE-302-RYG offers robust, maintenance-free status indication. Industrial users benefit from its straightforward wiring (cable terminal) and design built for 24x7 use.
Discover more Patlite Signal Towers and components in EnvMart’s Automation Signalling category for a complete range of industrial signaling solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The height of this model is 176mm.
It has an ingress protection rating of IP65, ensuring dust and water resistance.
This signal tower operates on a 24V AC/DC power supply.
It features three light elements: red, yellow, and green.
The maximum operating temperature is 60°C.
The minimum operating temperature is -30°C.
This model is designed for wall mounting, eliminating the need for additional mounting hardware.
It meets RoHS, CE, and ATEX standards for industrial safety and conformity.
It uses a cable terminal for connection.
No, this model does not include a sounder component, making it suitable for noise-sensitive environments.
The current consumption is 35mA.
The base diameter of this signal tower is 90mm.
