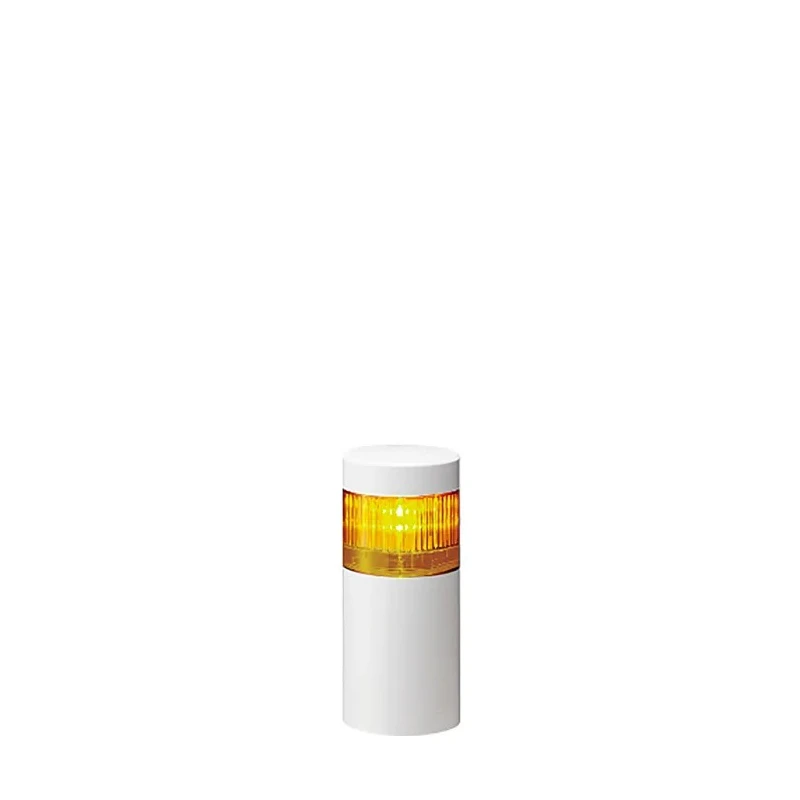

Patlite Amber Signal Tower Buzzer, 1 Light, LED, 24V DC, Direct Mount, IP65 LR6-102WJNW-Y

Patlite LR6-102WJNW-Y is an amber signal tower buzzer designed for industrial, manufacturing, and automation control environments. This 24V DC direct mount unit features a single amber LED light that emits a steady illumination, coupled with an integrated buzzer capable of producing sound levels between 85dB minimum and 90dB maximum. The robust housing rated at IP65 ensures protection against dust and water ingress, making it ideal for harsh environmental conditions.

The signal tower equipped with a buzzer employs Patlite's modular "Twist and Lock" system, allowing easy installation and reconfiguration of LED and sound modules as per application needs. Measuring 139mm in height with a 60mm base diameter, it is compact for space-efficient mounting.

Designed with a terminal block for secure and reliable electrical connections, it includes a 1.3 meter long connection cable to facilitate installation. It operates within a temperature range of -20°C to 50°C, supporting stable performance across varied industrial settings.

Patlite LR6 Series signal towers conform to industry standards including CSA-C22.2 No. 14, KC certifications, RoHS directive for environmental compliance, UL 508 recognition, FCC Class A, and EMC Directive adherence, ensuring dependable and certified operation.

This product is manufactured in Japan, reflecting stringent quality manufacturing processes. It is used widely in automation signaling, safety warning, and process control in factory automation, water treatment plants, manufacturing lines, and other commercial and industrial applications requiring reliable visual and audible alerts.

Operates at 24V DC for industrial signaling applications. Includes one amber LED light element with steady light effect. Integrated buzzer provides audible alarm with maximum 90dB sound level. Robust IP65-rated housing for dust and water resistance.

Modular "Twist and Lock" mounting system for easy customization. Suitable for harsh environments with operating temperature range -20°C to 50°C. Compact design with 139mm height and 60mm base diameter for streamlined installation.

Complies with multiple certifications including CSA, KC, RoHS, UL, FCC, and EMC directives. Connection via terminal block with a 1.3m cable length included. Designed and manufactured in Japan ensuring quality and reliability.

Explore the Patlite Signal Tower range for more automation signaling solutions and enhance industrial safety and communication with EnvMart.
