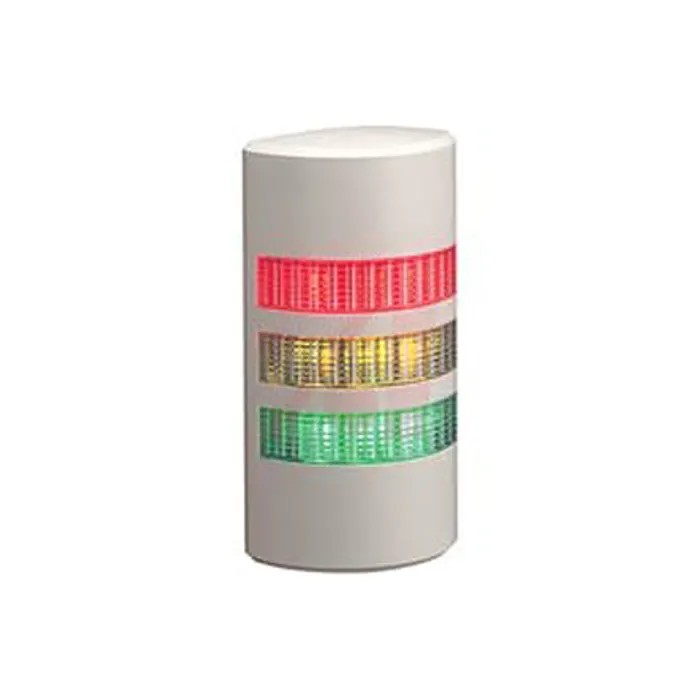

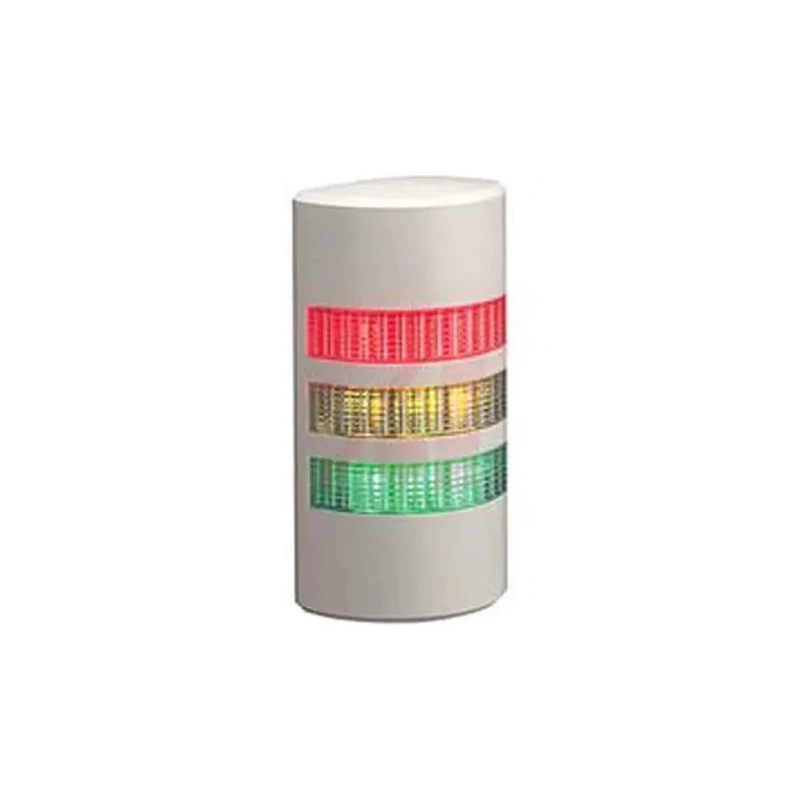

Patlite WEP Series Clear Signal Tower Buzzer 3 Lights 24V ac/dc Wall Mount WEP-302FB-RYG

Patlite WEP-302FB-RYG signal tower belongs to the WEP series and is engineered as a clear lens 3-light industrial signal tower with an integrated FB-type buzzer. Operating on 24V AC/DC power, this wall mount model provides reliable visual and audible signaling in industrial automation environments.

The ultra-slim half-moon enclosure design allows direct mounting onto walls or equipment without additional brackets and supports both vertical and horizontal installation configurations. Its clear vertical-cut lenses offer wide perspective illumination for maximum visibility, utilizing multiple LEDs in each tier to ensure uniform light distribution.

The built-in buzzer delivers a maximum sound level of 90dB at a 1 meter distance, making it well suited for alert and alarm signaling in manufacturing, water treatment, HVAC, laboratory, and commercial sectors. The unit’s robust white housing and polycarbonate lenses resist impact and heat, while the IP54 ingress protection rating ensures durability against dust and moisture.

The WEP-302FB-RYG accepts both NPN and PNP open collector inputs, facilitating direct PLC connection on 24 V DC systems. It supports multifunction lighting patterns including flashing and steady light to suit various signaling requirements. Certified for hazardous area use with ATEX and complying with UL component file and CE standards provides assurance for safety-critical industrial installations.

Environmental operation ranges from -30°C to 60°C, ensuring function in challenging conditions. The product includes a 1-meter connection cable for ease of installation. Set contains one Patlite WEP Series Clear Signal Tower Buzzer with 3 LED light elements and FB-type buzzer, ready for industrial signaling applications.

The signal tower features three light elements with clear lenses for enhanced visibility. Equipped with a buzzer type FB providing a 90dB sound alert at 1 meter distance. Supports AC/DC current type with a maximum supply voltage of 24V for versatile installation.

Designed for wall mounting with an IP54 rating ensuring protection against dust and water ingress. Operates in temperature range from -30°C to +60°C for reliable performance in harsh environments. Housing is white-colored with a base diameter of 90mm and height of 176mm for compact installation.

Compatible with both NPN and PNP open collector terminal types for direct PLC integration. Offers steady and flashing light effects with multifunction operation modes. Conforms to ATEX hazardous area certification and meets UL and CE approvals for industrial compliance.

Supplied with a 1 meter connection cable for convenient wiring setup. Explore the extensive Patlite range of Signal Towers and industrial automation signaling solutions at EnvMart for enhanced safety and operational efficiency.
