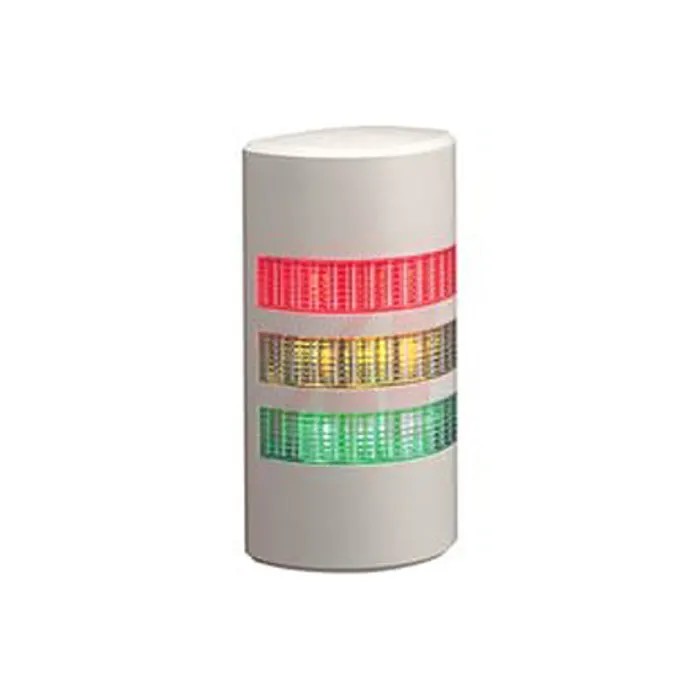

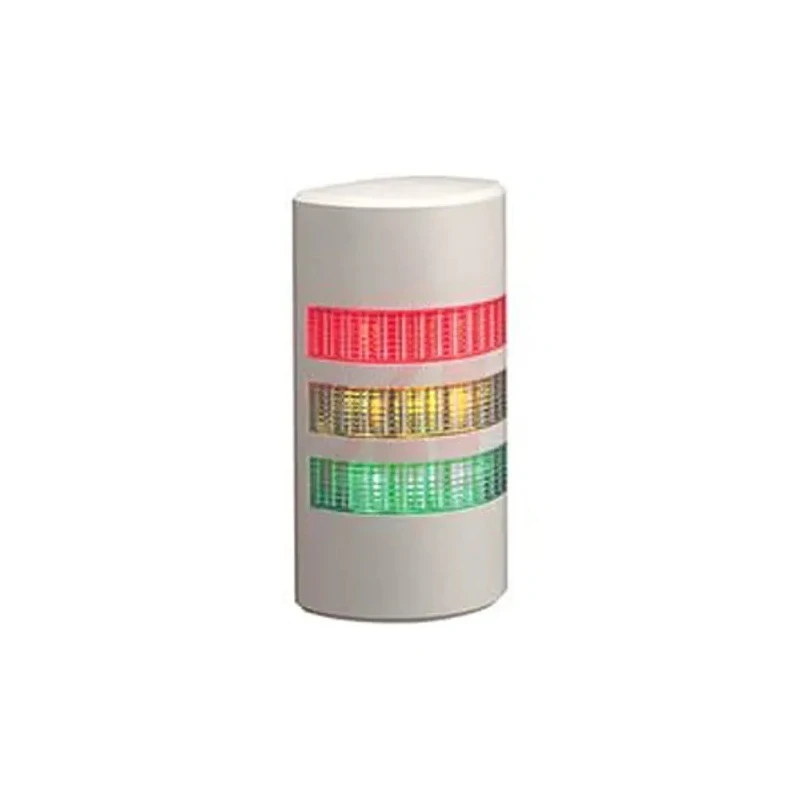

Patlite WEP Series Clear Signal Tower 3 Lights 2 Alarm Tone Sounder 24V AC/DC Wall Mount WEP-302-RYG

Patlite WEP Series Signal Tower model WEP-302-RYG is a clear lens industrial signal tower designed for versatile use in automation and control environments. It is equipped with 3 LED light elements and a 2 alarm tone sounder, suitable for 24V AC/DC electrical supply, mounted on a wall bracket.

The compact and ultra slim half-moon shaped enclosure allows for direct wall/equipment mounting without additional brackets and supports both vertical and horizontal installations. Its IP65 dust and water resistance rating ensures robust operation in harsh industrial conditions.

The signal tower features a clear vertical-cut polycarbonate lens for optimal illumination across a wide peripheral area. Each tier includes multiple LEDs positioned to provide an even intensity of light for improved visibility.

It incorporates an optional built-in audible alarm with an output sound level of 90dB at 1 meter, delivering reliable alarms in noisy industrial environments. The unit supports both NPN and PNP connections for direct integration with PLC systems operating at 24 V DC.

Additional features include two dynamic lighting patterns (flashing and continuous lighting), housing color in white, and a 1 meter connection cable designed for straightforward installation and maintenance.

Certified for hazardous area use compliant with ATEX standards, and recognized by UL (File No. E215660), EC, and CE, this signal tower is ideal for applications including manufacturing plants, industrial automation, water treatment facilities, and commercial buildings.

The signal tower uses LED bulbs for superior brightness and energy efficiency. It supports both AC and DC current types with a maximum supply voltage of 24V ac/dc. The sounder provides a 2 alarm tone output at 90dB measured at 1 meter.

Mounting is designed for wall installation with an IP65 rating for dust and water resistance. The tower has a compact height of 176mm and a base diameter of 90mm for streamlined installation. It operates reliably in minimum temperatures of -30°C and maximum temperatures up to 60°C.

The product is multifunctional with steady lighting effect and the option to mount vertically or horizontally. Includes a 1 meter connection cable for ease of wiring. This signal tower is certified for hazardous areas with ATEX certification and meets UL, EC, and CE standards.
