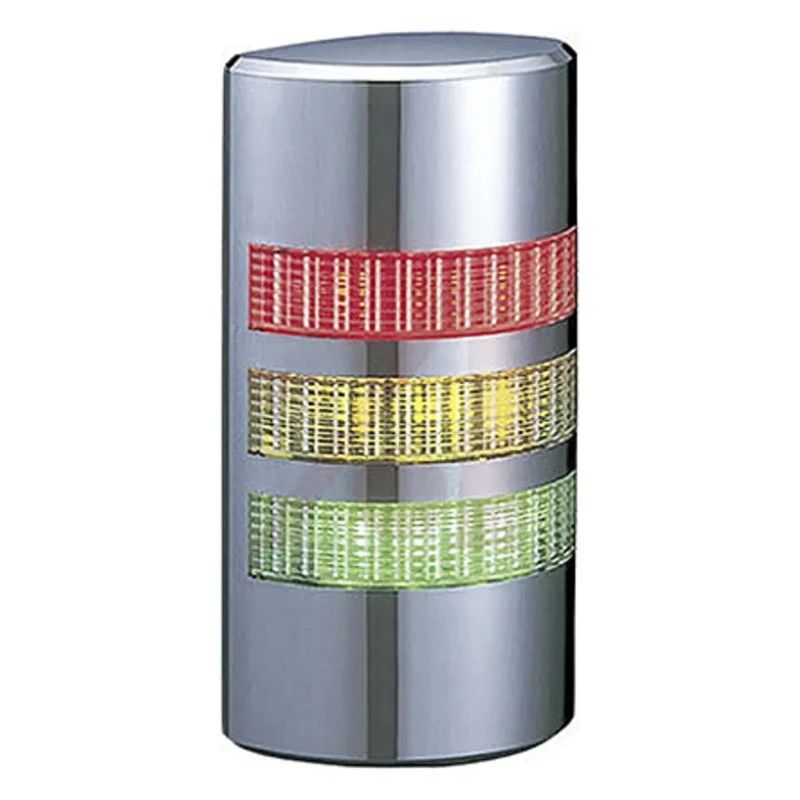

Patlite WE Series Clear Signal Tower Built In Audible Alarm 3 Lights 24V ac/dc Wall Mount WE-302FB-RYG
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Patlite |
| Height | 176mm |
| Model | WE-302FB-RYG |
| IP Rating | IP54 |
| Mount Type | Wall Mount |
| Bulb Type | LED |
| Series | WE |
| Maximum Operating Temperature | 60°C |
| Current Type | AC/DC |
| Minimum Operating Temperature | -30°C |
| Base Diameter | 90mm |
| Terminal type | Open Collector |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | UL Recognised Component, EC, CE |
| Maximum Supply Voltage | 24V ac/dc |
| Housing Colour | Chrome |
| Light Effect | Steady, Flashing |
| Sounder Type | Built In Audible Alarm |
| Sound Level at 1m | 90dB |
| Maximum Sound Level | 90dB |
| Number of Light Elements | 3 |
| Connection Cable Length | 1m |
| Dust and water resistance rating of IP65 (except for FB type | IP54) |
Key Features
- The signal tower features a clear vertical-cut lens that provides enhanced illumination.
- It includes a built-in audible alarm with an output of 90 dB at 1 meter.
- The unit supports both steady and flashing light effects for versatile signaling.
- The mount type is wall mount, suitable for vertical or horizontal installation.
- The housing is chrome-colored with an IP54 rating for protection against dust and water.
- The tower is ATEX certified for hazardous area use and complies with CE and UL standards.
- The LED bulbs provide high visibility, and the terminal type supports open collector connections.
Product Description
Patlite WE-302FB-RYG is an advanced clear signal tower from the WE Series designed for reliable industrial automation signaling. With three LED light elements housed in a chrome-plated body, this unit includes a built-in audible alarm delivering a sound level of 90 dB at 1 meter, suitable for alerting operators in noisy environments.
Operating at 24V ac/dc, the signal tower supports both steady and flashing light effects, enhancing visibility and communication on industrial equipment or control panels. The wall mount design enables flexible installation either vertically or horizontally to fit various space constraints.
Constructed with a clear vertical-cut polycarbonate lens, the tower ensures broad peripheral illumination for better visibility. It is engineered to operate reliably within a temperature range of -30°C to 60°C and features IP54 ingress protection, making it suitable for demanding industrial and manufacturing settings.
The signal tower complies with stringent safety and quality standards including CE, UL Recognised Component, and EC approvals. Its ATEX certification allows safe use in hazardous environments, expanding application possibilities across chemical, pharmaceutical, and other industrial sectors.
This model accommodates both NPN and PNP PLC connections with an open collector terminal, providing multifunction flexibility for integration with various control systems. The 1-meter cable length offers convenient connectivity without excessive wiring.
The signal tower has three clear LED light elements for visual signaling. Includes a built-in audible alarm with 90 dB output at 1 meter. Supports steady and flashing light modes for versatile indication. Wall mount configuration with chrome housing and IP54 rating.
Certified with CE, UL, and ATEX for safety compliance. Designed to operate within -30°C to 60°C temperature range. Compatible with open collector terminal and PLC integration.
This product is ideal for electrical, automation, manufacturing, and process control applications requiring clear visual and audible signaling for operational safety and efficiency. Explore more models and variants in the Patlite Signal Tower collection on EnvMart for tailored industrial signaling solutions.
