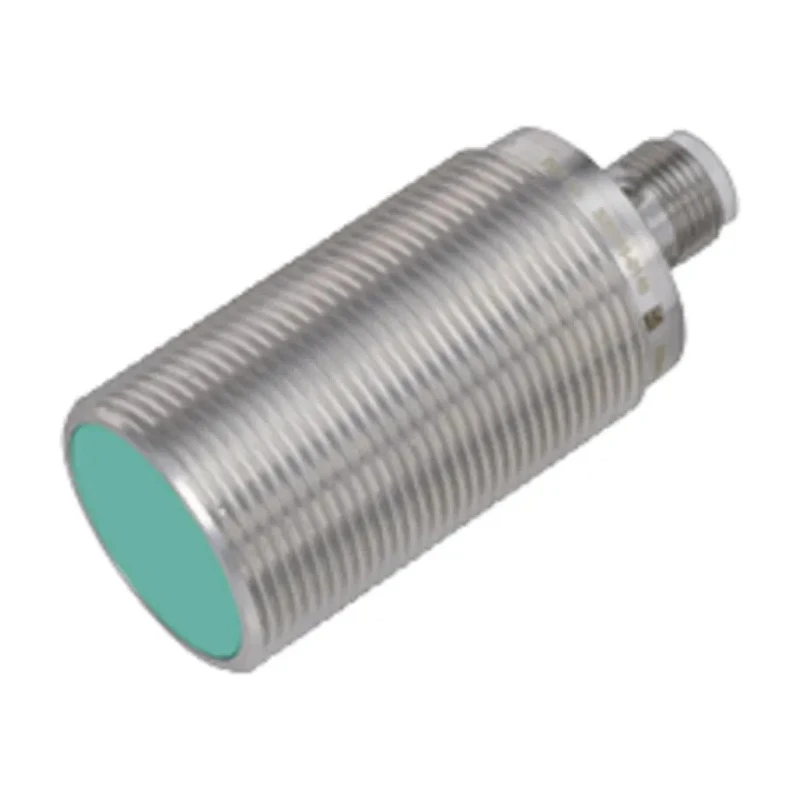

Pepperl + Fuchs Threaded Barrel Inductive Proximity Sensor M18 PNP 36V 5 mm Detection NBB5-18GM50-A2-V1
Specifications
| Country of Origin | Vietnam |
|---|---|
| Brand | Pepperl + Fuchs |
| Length | 66mm |
| Model | NBB5-18GM50-A2-V1 |
| Depth | 18mm |
| IP Rating | IP68 |
| Width | 66mm |
| Mount Type | Flush |
| Housing Material | Brass White Bronze Coated |
| Output type | PNP |
| Series | NBB |
| Maximum Operating Temperature | 85°C |
| Thread Size | M18 |
| Minimum Operating Temperature | -40°C |
| Switching Current | 200mA |
| Terminal type | M12 |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 36V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 1.95kHz |
| Standards/Approvals | UL 94 V-2, ANSI/ESD, CE, CSA, DIN, EN, REACH, RoHS, UL 508 12, UL 508 4, UL 94 HB, UL 94 V-0 |
| Maximum AC Voltage | 240V ac |
| Maximum Supply Voltage | 36V |
| Materials Detected | Polybutylene Terephthalate |
| Maximum Detection | 5mm |
Key Features
- This sensor features a threaded barrel design with M18 thread size for easy mounting.
- It operates with a PNP output type at a maximum supply voltage of 36V.
- The device supports a maximum switching frequency of 1.95 kHz for responsive sensing.
- Its housing is brass with a white bronze coating for enhanced corrosion resistance.
- The sensor is rated IP68, suitable for harsh industrial environments.
- It includes an M12 terminal type and supports flush mounting.
- Operating temperature range is from -40°C up to 85°C, ensuring reliability in varied conditions.
- Maximum AC voltage withstand is 240V, and DC voltage withstand is 36V.
Product Description
Pepperl + Fuchs NBB5-18GM50-A2-V1 Threaded Barrel Inductive Proximity Sensor is designed for precise detection of metallic targets in automation and control applications. With a 5 mm detection range and PNP output, it is ideal for use in industrial sensor applications requiring reliable and repeatable sensing.
The sensor features a robust brass housing with a white bronze coating that offers superior corrosion protection and durability in demanding environments. Its threaded barrel (M18) design, along with an M12 terminal, supports straightforward installation and integration into existing sensor setups.
Rated IP68, this sensor is dust-tight and protected against prolonged immersion in water, making it suitable for a wide range of industrial, manufacturing, and automation environments. The operating temperature range of -40°C to 85°C further ensures operation in extreme temperature conditions.
The device supports a maximum supply voltage of 36V DC and 240V AC, with a switching current of up to 200 mA and a switching frequency of 1.95 kHz, allowing fast and reliable switching for industrial automation tasks. Shielding technology minimizes electromagnetic interference, enhancing signal integrity.
Compliant with various international safety and environmental standards such as UL 94 V-2, CE, REACH, and RoHS, this sensor guarantees a quality and environmentally responsible product. It is well suited for automation controls, factory machinery, process control systems, and other industrial sensor applications.
Thread size M18 with threaded barrel body style. Flush mount capable with M12 terminal connection. Maximum detection distance 5 mm with PNP output type. Robust brass housing with white bronze coating. High IP68 rating for dust and water protection.
Wide operating temperature range from -40°C to 85°C. Maximum DC voltage 36V, maximum AC voltage 240V. Maximum switching frequency of 1.95 kHz for fast response. Shielded sensor design for interference protection. Manufactured in Vietnam and certified for multiple safety standards.
Explore more industrial sensors and automation products in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this sensor is 5 mm.
This model features a PNP output type.
The maximum supply voltage for this sensor is 36V DC.
It supports a maximum switching frequency of 1.95 kHz.
This sensor is equipped with an M12 terminal type.
The sensor is rated IP68, making it dust-tight and protected against prolonged immersion in water.
The sensor has a length and width of 66 mm and a depth of 18 mm.
The operating temperature range is from -40°C to 85°C.
This sensor is designed to detect materials such as Polybutylene Terephthalate.
The housing is made of brass with a white bronze coating for enhanced corrosion resistance.
It complies with various standards including UL 94 V-2, CE, REACH, and RoHS.
Yes, this sensor supports flush mounting.
