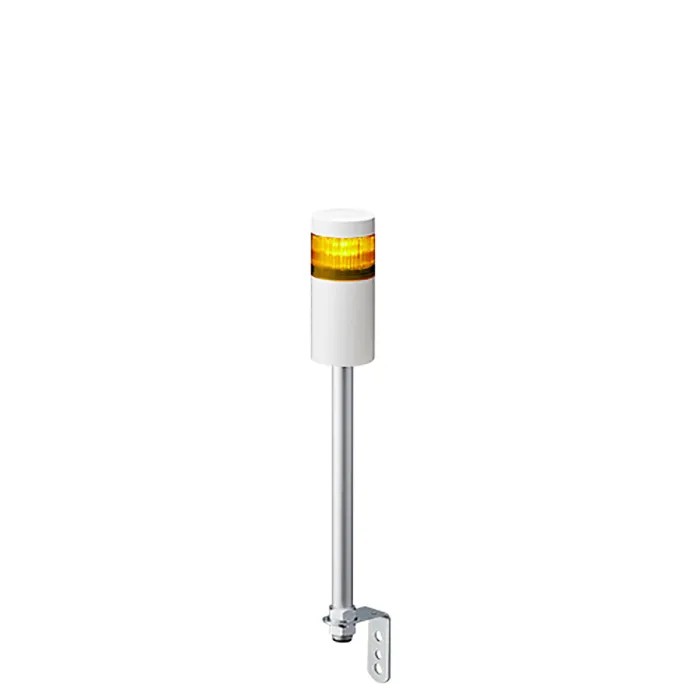

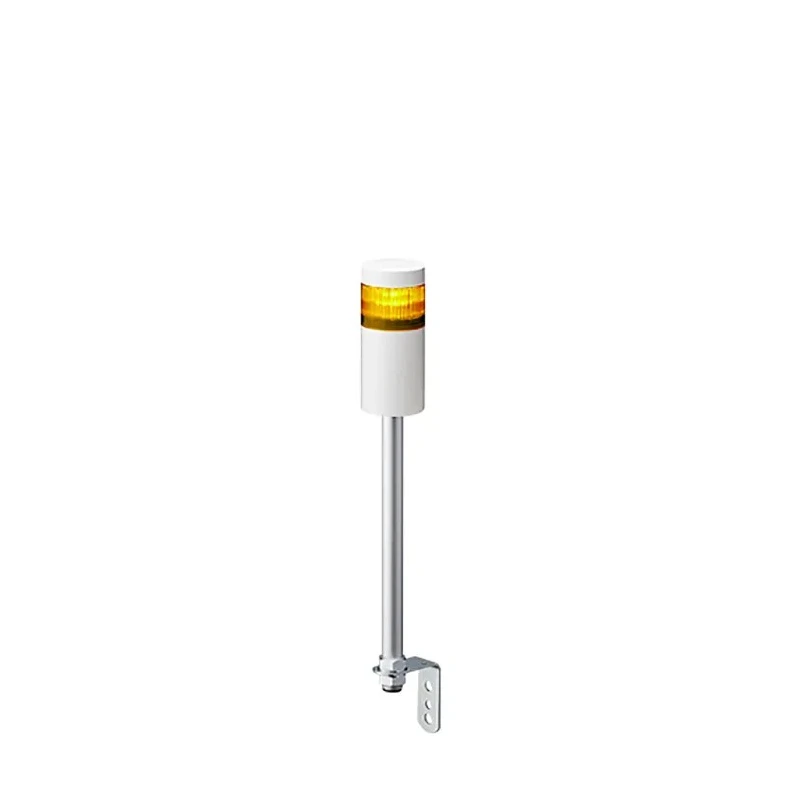

Patlite LR6 Series Signal Tower Buzzer, Red/Green/Clear/Blue/Amber/White, LED, 24V DC, 1 Light, Pole Mount LR6-102LJNW-Y
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Patlite |
| Height | 424mm |
| Model | LR6-102LJNW-Y |
| IP Rating | IP54 |
| Mount Type | Pole Mount |
| Bulb Type | LED |
| Series | LR6 |
| Maximum Operating Temperature | 50°C |
| Current Type | DC |
| Current consumption | 250mA |
| Minimum Operating Temperature | -20°C |
| Base Diameter | 60mm |
| Terminal type | Terminal Block |
| Lens Colour | Red, Green, Clear, Blue, Amber, White |
| Standards/Approvals | RoHS Directive (EN 50581), EMC Directive (EN 61000-6-4,EN 61000-6-2), CSA-C22.2 No. 14, FCC Part 15 Subpart B Class A, KC (KN 61000-6-4,KN 61000-6-2), UL 508, UL Recognised Component (File No.E215660) |
| Maximum Supply Voltage | 24V |
| Housing Colour | Off-White |
| Light Effect | Steady |
| Minimum Sound Level | 85dB |
| Sounder Type | Buzzer |
| Maximum Sound Level | 90dB |
| Number of Light Elements | 1 |
| Connection Cable Length | 1m |
Key Features
- High-visibility signal tower with six lens colour options for flexible indication needs.
- Operates on 24V DC and features a modular "Twist and Lock" design for easy reconfiguration.
- Equipped with LED illumination and a loud buzzer for dual visual and audible signalling.
- Water and dust resistant with IP54 rating and robust off-white housing for harsh industrial environments.
- Suitable for pole mounting with a terminal block connection and one light element.
- Wide operating temperature range from -20°C to 50°C, making it ideal for varied working conditions.
- Steady light effect supports multifunctional signalling in manufacturing and automation setups.
- Certified to RoHS, EMC, UL, CSA, FCC, and KC standards for global industrial compliance.
Product Description
Patlite LR6-102LJNW-Y Signal Tower Buzzer combines advanced modular design, robust construction, and versatility for industrial automation and visual/audible signalling. Featuring six lens colour options - red, green, clear, blue, amber, and white - the unit offers flexible indication solutions tailored to a range of manufacturing and process environments. Its LED illumination and high-volume buzzer ensure both clear visual alerts and audible status notifications, enhancing operational awareness and safety on the shop floor.
Operating on a reliable 24V DC supply, the LR6-102LJNW-Y is engineered with a pole mount for practical installation and a reconfigured modular "Twist and Lock" mechanism that allows rapid customisation and maintenance. It incorporates a single light element and an efficient terminal block for robust electrical connection. The redesigned lens and module construction deliver bright, even light output (2000mcd), visible at greater distances, supporting critical status indication in large-area facilities.
Features steady light output and multifunctional signalling capability for complex process requirements. Water and dust resistance with an IP54 rating, plus an enclosed sound module, provide enhanced durability and protection in demanding industrial settings.
The off-white housing is designed for strength and longevity, with an operating temperature span of -20°C to 50°C. Buzzer sound output ranges from a minimum of 85dB up to a maximum of 90dB, suitable for environments with high ambient noise.
Certified under RoHS Directive, EMC, UL, CSA, FCC, and KC, providing compliance assurance for international industrial deployments. The device consumes 250mA current and is equipped for steady operation with DC systems. Modular system, pole mount compatibility, terminal block connectivity, and 60mm base diameter ensure easy installation and integration into signalling systems.
The Patlite LR6-102LJNW-Y Signal Tower Buzzer is ideal for use in manufacturing automation, safety indication, process control, machinery status monitoring, warehouse dispatch, and commercial building alert systems. Its construction and certifications make it suitable for global industrial, commercial, and automation applications requiring reliable visible and audible indicators.
Discover more Patlite signalling solutions and browse the full Automation Signalling range on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates on a supply voltage of 24V DC.
The buzzer sound output ranges from a minimum of 85dB to a maximum of 90dB.
The height of this unit is 424mm.
It has an IP54 rating, making it water and dust resistant.
This model features six lens color options: red, green, clear, blue, amber, and white.
It is designed for pole mounting.
The current consumption of this unit is 250mA.
The operating temperature range is from -20°C to 50°C.
It uses a terminal block for electrical connection.
It is certified under RoHS, EMC, UL, CSA, FCC, and KC standards for global compliance.
The light effect is steady, providing consistent illumination.
The base diameter of this signal tower is 60mm.
