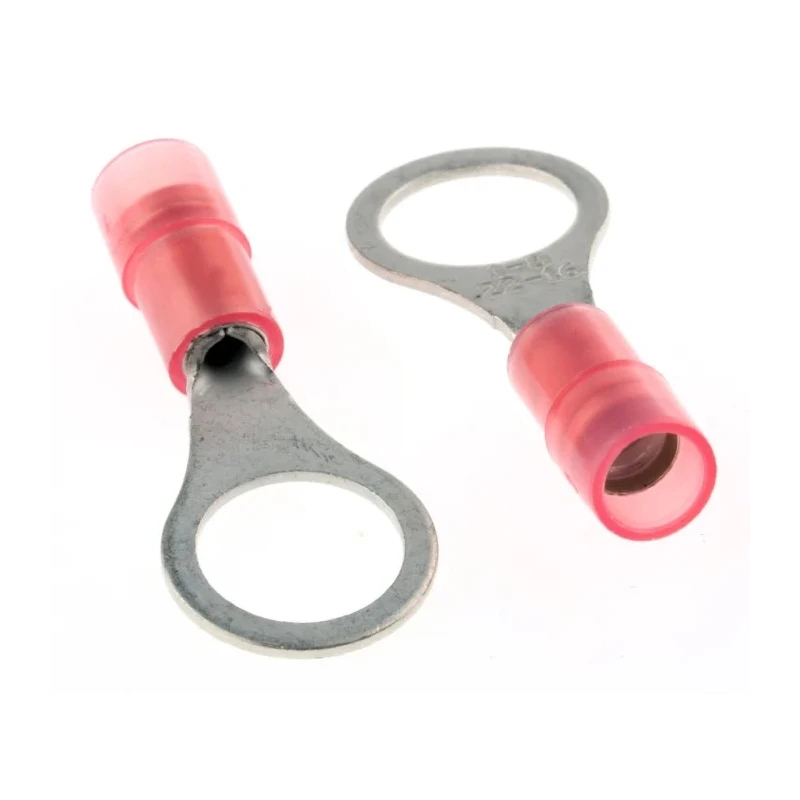

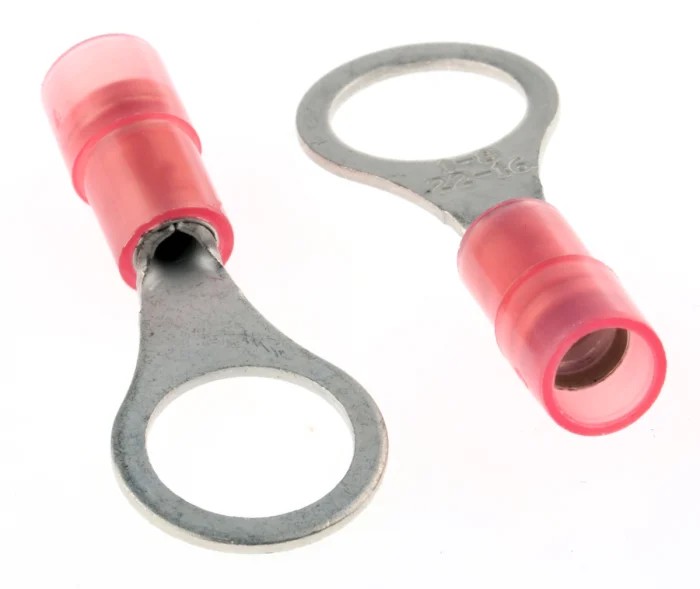

RS PRO Insulated Ring Terminal Nylon M8 Stud Size 22 AWG to 16 AWG Wire Red 267-3587

RS PRO 267-3587 insulated ring terminal is designed for secure electrical connections in industrial, automotive, and electronic applications. It features an M8 stud size and supports wire sizes between 22 AWG and 16 AWG, providing versatility for various wire gauges.

The terminal body is constructed from high conductivity copper, ensuring efficient current flow and easy crimping. Contacts are tin plated to prevent corrosion and maintain excellent electrical conductivity over time.

This ring terminal uses a double crimp design with an internal copper sleeve which strengthens the barrel and guarantees a robust crimp joint that withstands vibration and mechanical stress. The red nylon insulation is durable and provides protection against electrical shock, abrasion, impact, and fatigue, while also enabling quick size identification.

The insulated ring terminal has an overall length of 27.8 mm, an outer ring diameter of 11.6 mm, and an inner ring diameter of 8.4 mm. Its compact size makes it ideal for use in tight spaces. The maximum operating temperature rating of 105°C allows it to be used in demanding environments.

This product is well suited for applications in industrial machines, control panel wiring, automotive electrical systems, communication devices, power supplies, and domestic appliances. The flared insulation design simplifies wire insertion, making installation faster and more reliable.

Copper contact promotes high conductivity and easy crimping. Tin plating enhances corrosion resistance and conductivity. Double crimp with internal copper sleeve for strong, durable connection. Nylon insulation protects against abrasion and electrical hazards.

Colour coded for quick size verification. Flared insulation improves wire insertion. High temperature resistance up to 105°C ensures reliability. Compact size with outer ring diameter 11.6 mm and length 27.8 mm. Suitable for industrial, automotive, and electronic wiring applications.
