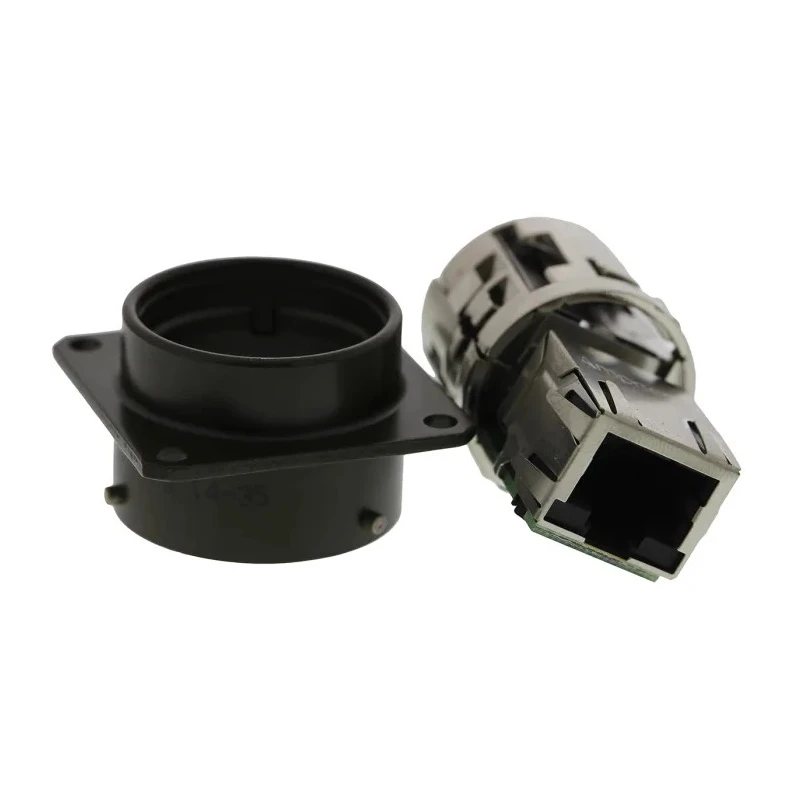

Amphenol Socapex RJF Series RJ45 Shielded Female Panel Mount Connector Cat5e 1 Port 8 Way

Amphenol Socapex RJF21G RJ45 Connector is a high-quality, shielded female receptacle designed for panel mounting in network and telecommunications equipment. This Cat5e rated connector features an 8-way, 1 port configuration with a straight orientation, ensuring reliable Ethernet connectivity with superior signal integrity.

The connector employs a robust quarter-turn bayonet coupling mechanism (MIL-C26482 type) for secure and quick mating to compatible plugs. Its copper alloy contacts are gold plated to provide excellent conductivity and durability, while the entire assembly is designed to withstand harsh environmental conditions, including an IP68 rating for protection against dust and water ingress.

Designed to perform reliably across a wide temperature range of -40°C to 85°C, this RJ45 connector is terminated by solder, providing stable electrical connections in demanding applications. It exhibits strong resistance to salt spray corrosion with nickel plating enduring 48 hours, black coating greater than 96 hours, and olive drab cadmium coating for over 500 hours.

With compact dimensions of 39.1 mm in length, 33.3 mm in width, and 33.3 mm in depth, the RJF21G is well-suited for tight spaces while maintaining rugged durability. It is suitable for industrial, laboratory, electronic, and telecommunications applications requiring secure, high-performance network connectors.

Fits panel mount applications with a robust bayonet coupling mechanism. Supports Cat5e LAN category for high-speed Ethernet connectivity. Features 8-way, 1 port, straight orientation for versatile installation. Constructed with copper alloy contacts plated with gold for durability.

Rated IP68 for excellent protection against dust and water ingress. Operates efficiently between -40°C and 85°C temperature range. Termination by solder ensures secure and stable connections. Resistance to salt spray with nickel plating for 48 hours and olive drab cadmium coating for over 500 hours.

Compact size with dimensions length 39.1mm, width 33.3mm, and depth 33.3mm. Ideal for electronics, industrial, and telecommunications equipment.

Choose Amphenol Socapex RJF21G for a reliable, durable RJ45 Ethernet connector delivering excellent performance in demanding environments. Explore more precision Connectors from Amphenol Socapex and enhance your connectivity solutions at EnvMart.
