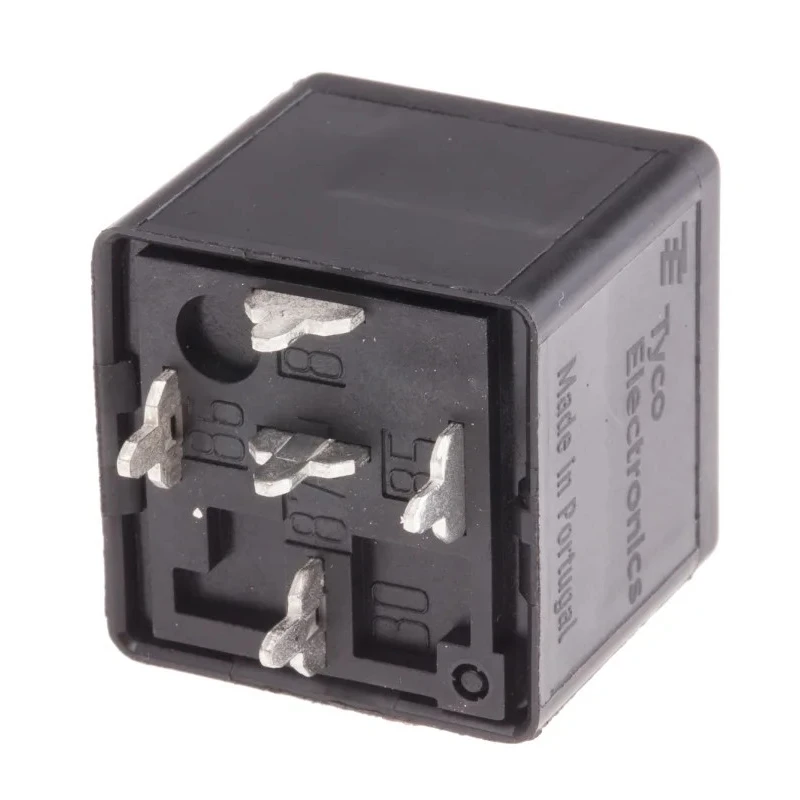

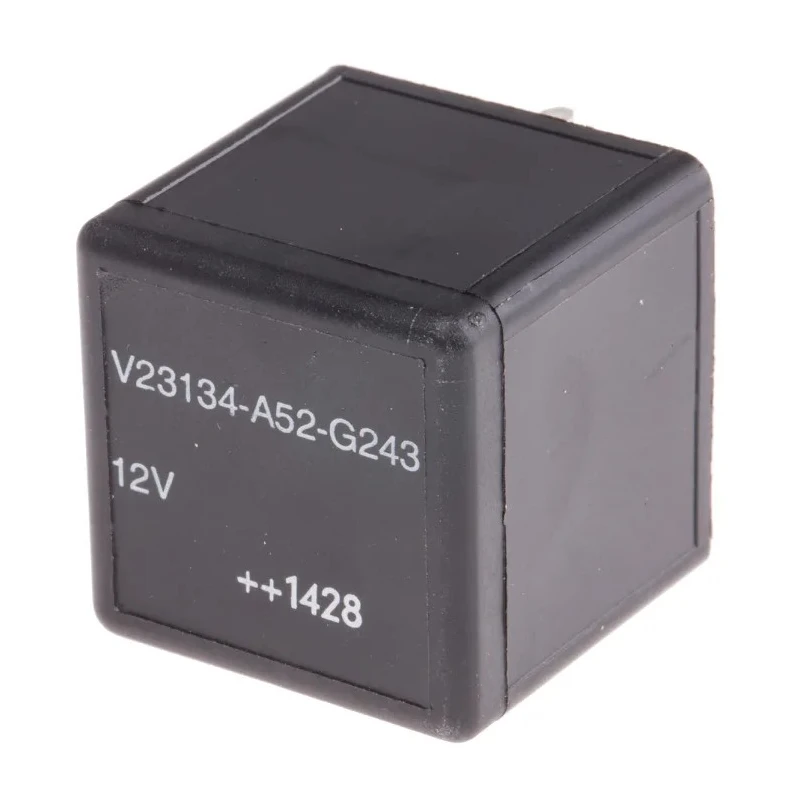

TE Connectivity PCB Automotive Relay, 12V DC Coil, 1.6W Power, 40A Switching Current, SPDT, Silver Contacts V23134A0052G243
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Height | 27.4mm |
| Length | 25.9mm |
| Model | V23134A0052G243 |
| Depth | 25.9mm |
| Mount Type | PCB |
| Contact Material | Silver |
| Series | F4 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Number of Poles | 1 |
| Coil Resistance | 90Ω |
| Coil Power | 1.6W |
| Isolation Coil To Contact | 500V |
Key Features
- Compact Mini ISO F4 series designed for PCB mounting applications.
- Silver contact material offering efficient and durable switching.
- SPDT contact configuration with one pole ensures versatile switching capabilities.
- Operating temperature range from -40°C to 125°C suitable for harsh automotive environments.
- High isolation coil to contact voltage of 500V ensures operational safety.
- Solder terminal type for secure and reliable PCB connections.
- Application areas include ignition lock systems, fuel pumps, ABS, wiper controls, electric power steering, and car alarms.
- Protected against dust with IP54 rating for robust automotive performance.
Product Description
TE Connectivity V23134A0052G243 PCB Automotive Relay belongs to the F4 Mini ISO series and features a 12V DC coil voltage with a coil power of 1.6W. This relay offers a 40A switching current with a single-pole double-throw (SPDT) contact configuration and silver contact material, designed specifically for automotive electronic applications.
Designed to mount directly on PCBs using solder terminals, this relay is compact with dimensions approximately 25.9mm in length and depth, and 27.4mm in height, providing efficient space utilization in automotive electronic circuits. The relay operates reliably within a wide temperature range of -40°C to 125°C, ensuring durability in diverse environmental conditions.
The relay features a high isolation voltage of 500V between coil and contacts, supporting safety and signal integrity in automotive electrical systems. The F4 series offers dust protection with an IP54 rating, enhancing longevity and performance in harsh automotive environments.
Typical applications include controlling ignition locks, headlamps, exhaust emission control systems, ABS, fuel pumps, electric power steering, wiper controls, car alarms, and blower fans. It integrates various contact arrangements and materials suitable for sophisticated automotive control tasks.
Compact Mini ISO form factor suited for PCB mounting. Silver contact material ensures low contact resistance and durability. SPDT contact configuration with one pole for flexible switching solutions. Operating temperature from -40°C up to 125°C.
500V isolation voltage coil to contact for enhanced safety. Coil power rating of 1.6W with 90Ω coil resistance. Solder terminals ensure secure mounting on PCB assemblies. Dust protected to IP54 standard. Manufactured in Portugal adhering to high quality standards.
Widely used in various automotive electrical functions.
This TE Connectivity automotive relay is a reliable component for automotive electronics manufacturing and repair industries. Its robust design and diverse application capabilities make it a valuable addition to automotive relay inventories.
Explore more Automotive Relay solutions and related TE Connectivity products at EnvMart to optimize your automotive electronics projects effectively.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This automotive relay can handle a switching current of 40A, making it suitable for various automotive applications.
The relay operates at a coil voltage of 12V DC with a power rating of 1.6W.
It can operate reliably within a temperature range of -40°C to 125°C, suitable for harsh automotive environments.
This model features a single-pole double-throw (SPDT) contact configuration, allowing versatile switching capabilities.
The relay has a high isolation voltage of 500V between the coil and the contacts, ensuring operational safety.
It is designed for PCB mounting and uses solder terminals for secure and reliable connections.
The relay has dimensions of approximately 25.9mm in length and depth, and 27.4mm in height.
The contacts are made of silver, which offers low contact resistance and durability.
Typical applications include ignition lock systems, fuel pumps, ABS, wiper controls, and car alarms.
It is protected against dust with an IP54 rating, enhancing its performance in automotive environments.
This automotive relay is manufactured in Portugal, adhering to high quality standards.
The coil resistance for this model is 90Ω, which is essential for its operation.
