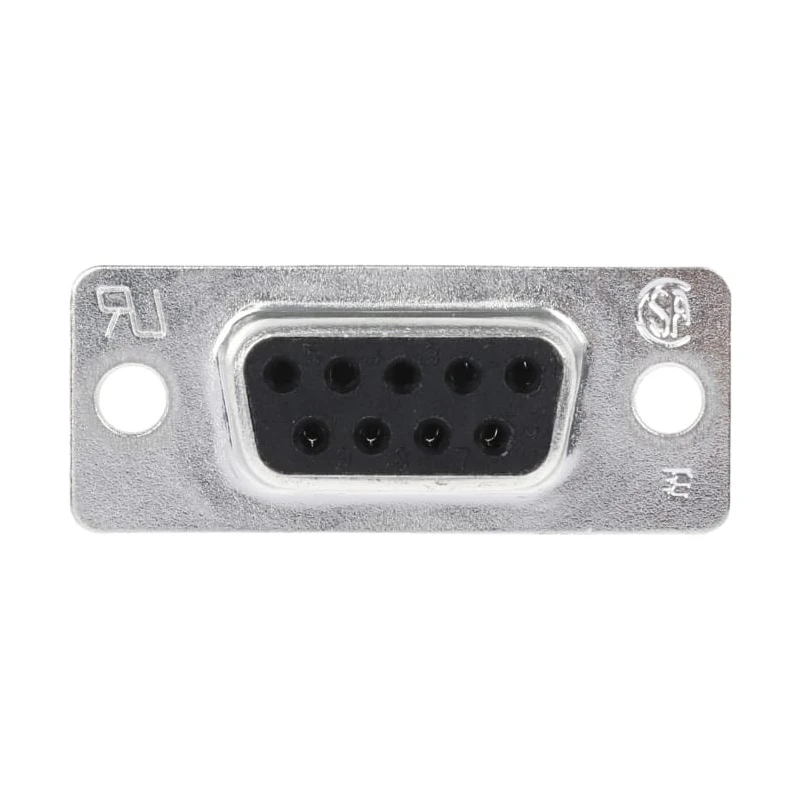

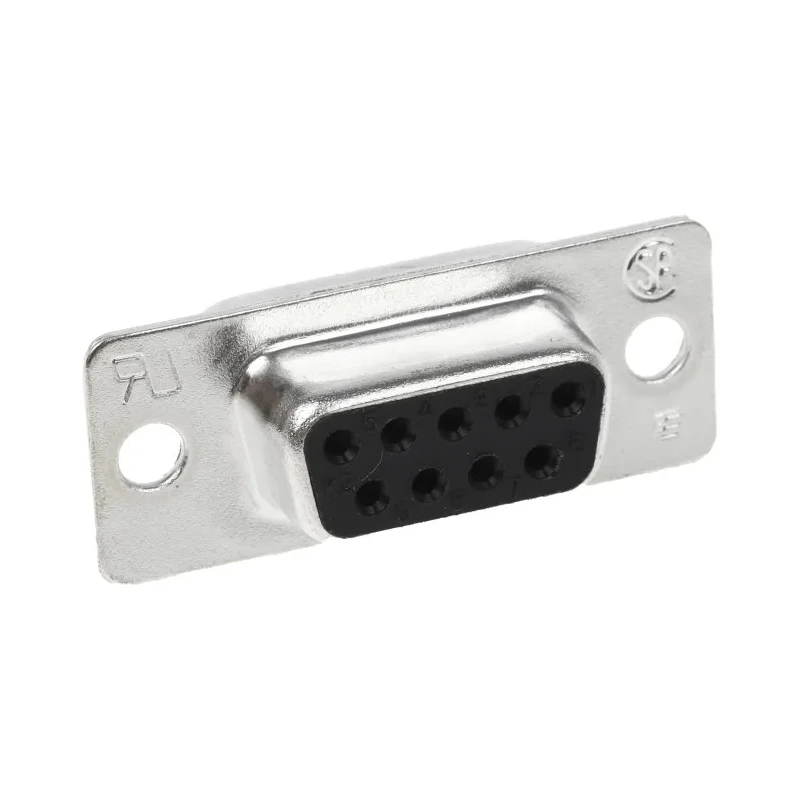

TE Connectivity AMPLIMITE HD-20 9 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector Female 5-747905-2

TE Connectivity 5-747905-2 AMPLIMITE HD-20 9 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector Female is engineered for precision and durability in demanding electronic component applications. Rated for 250 V and 3A current, this connector features a steel shell that offers extensive EMI shielding and ESD insulation, essential for stable signal transmission in industrial and communication interfaces.

The HD-20 series connector uses a 94V-0 rated black thermoplastic insert with an increased contact density that enables space-saving designs. The connector’s gold-plated phosphor bronze contacts provide excellent corrosion resistance and conductivity, vital for long-term reliability in electronics.

This panel mount female connector with solder termination allows for secure installation on panels maintaining mechanical robustness. It operates over a wide temperature range from -55°C to 105°C, suitable for harsh environments in manufacturing, automation, and instrumentation sectors.

The AMPLIMITE series supports various accessories such as cable clamps, backshells, and locking mechanisms for enhanced assembly flexibility. Its construction minimizes impedance and includes strain relief features for optimal performance under physical stress.

Key technical aspects include an E size D-sub shell, 2.77 mm pitch, and straight orientation ensuring compatibility with HDE, HDF, HDP, and other HD-20 series connectors. This component aligns with industrial and laboratory requirements for compact and reliable connector solutions.

Supports a current rating of 3A for reliable electrical performance. Features a steel housing material for mechanical durability and EMI shielding. Operating temperature range from -55°C to 105°C to handle harsh environments.

Gold over nickel plated phosphor bronze contacts for corrosion resistance and improved conductivity. Solder termination type enables secure and dependable connections. High density 9 way contact configuration with 2.77 mm pitch for space efficiency.

Panel mount design facilitates secure installation and maintenance. Compatible with HD-20 series connectors and accessories for flexible system integration. Constructed for industrial, automation, and communication device applications.

Explore the TE Connectivity range on EnvMart for high-quality connectors designed to meet stringent industrial standards and diverse application needs.
