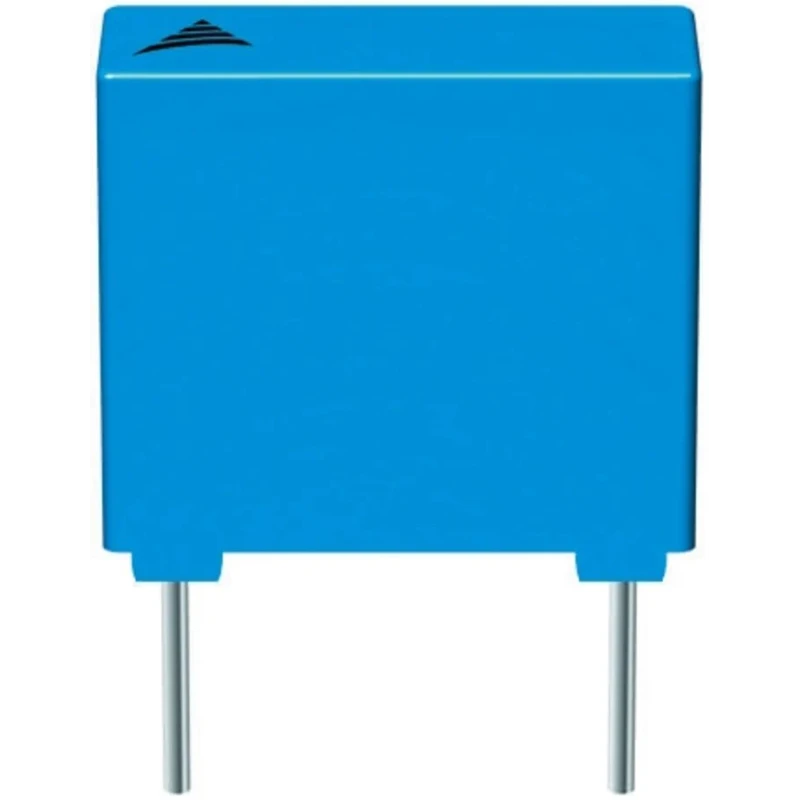

TDK Film Capacitor Through Hole 1 nF Capacitance 300V AC 300V DC Rated Voltage B32021A3102M000

Free Delivery in India | Lowest Global Shipping Charges

TDK Film Capacitor Through Hole 1 nF Capacitance 300V AC 300V DC Rated Voltage B32021A3102M000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Operating Temperature	-40 → 110 °C
Height	9mm
Length	13mm
Model	B32021A3102M000
Width	4mm
Mount Type	Through Hole
Series	B32021
Maximum Operating Temperature	110°C
Capacitance	1nF
Standards/Approvals	UL, CSA
Pin Count	2
Rated AC Voltage	300V ac
Rated DC Voltage	300V dc
Lead Pitch	10mm
Lead Diameter	0.6mm
Suppression Class	Y2

Key Features

Capacitance rated at 1 nanofarad with Y2 suppression class.
Rated AC voltage of 300 volts and DC voltage of 300 volts.
Constructed with polypropylene film and plastic case ensuring UL 94 V-0 fire resistance.
Compact through-hole mount design with 10 mm lead pitch and 2-pin configuration.
Operating temperature range from -40 to 110 degrees Celsius.
Designed to UL and CSA standards for safety and reliability.
Good self-healing properties for high voltage capability and durability.
Typical applications include interference suppression in power electronics.

Product Description

TDK B32021A3102M000 Film Capacitor Through Hole mount type features a capacitance of 1 nF, rated for 300V AC and 300 V DC, suitable for a wide range of electronic equipment requiring interference suppression and line-to-ground safety measures.

Constructed from polypropylene film encased in a plastic case with UL 94 V-0 fire retardant rating, it provides excellent electrical insulation and durability. The epoxy resin sealing further protects the capacitor from environmental influences.

This capacitor has very small dimensions - 13 mm length, 9 mm height, and 4 mm width - making it suitable for compact PCB designs. It operates reliably within a temperature range from -40°C to 110°C, meeting the demanding conditions in industrial and commercial electronics.

Compliant with UL and CSA safety standards, this component is ideal for use in power electronics assemblies requiring interference suppression compliant with EN 132400 and IEC 60384-14 standards for 300 V AC operation.

Capacitance: 1nF with Y2 suppression class for optimal filtering. Rated voltage: 300V AC and 300V DC suitable for common power applications. Mount type: Through Hole with 2-pin, 10 mm lead pitch. Compact size suitable for high density PCB layouts.

Wide operating temperature range of -40 to 110 °C for versatility. Polypropylene construction with plastic case and epoxy resin sealing. Meets UL and CSA standards, ensuring safety and compliance. Designed for interference suppression and line-to-ground applications.

This film capacitor is widely applicable in industrial electronics, power supplies, HVAC controls, and other electrical devices where high reliability and safety standards are required.
