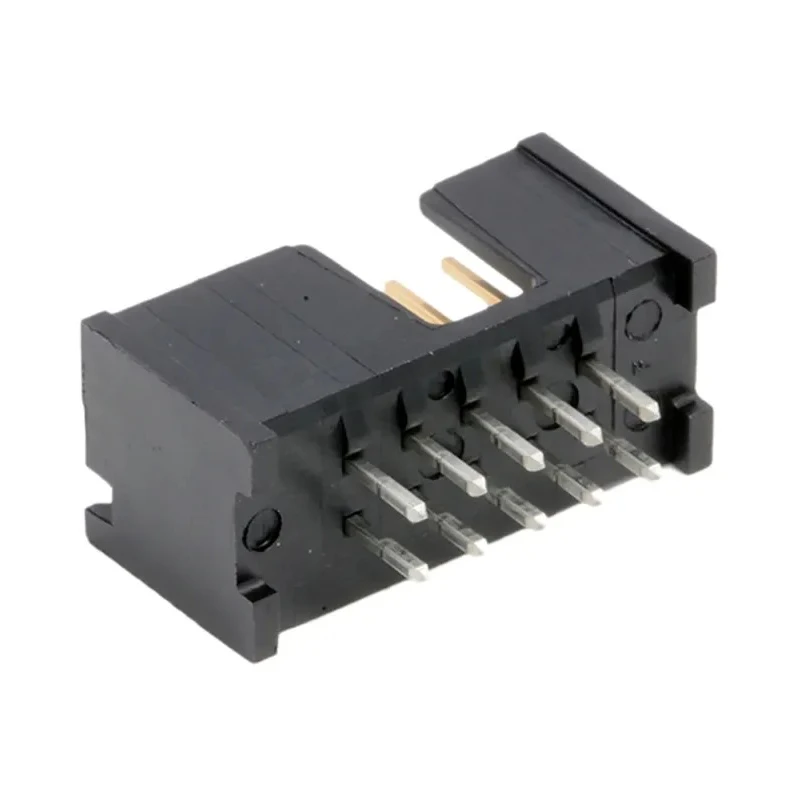

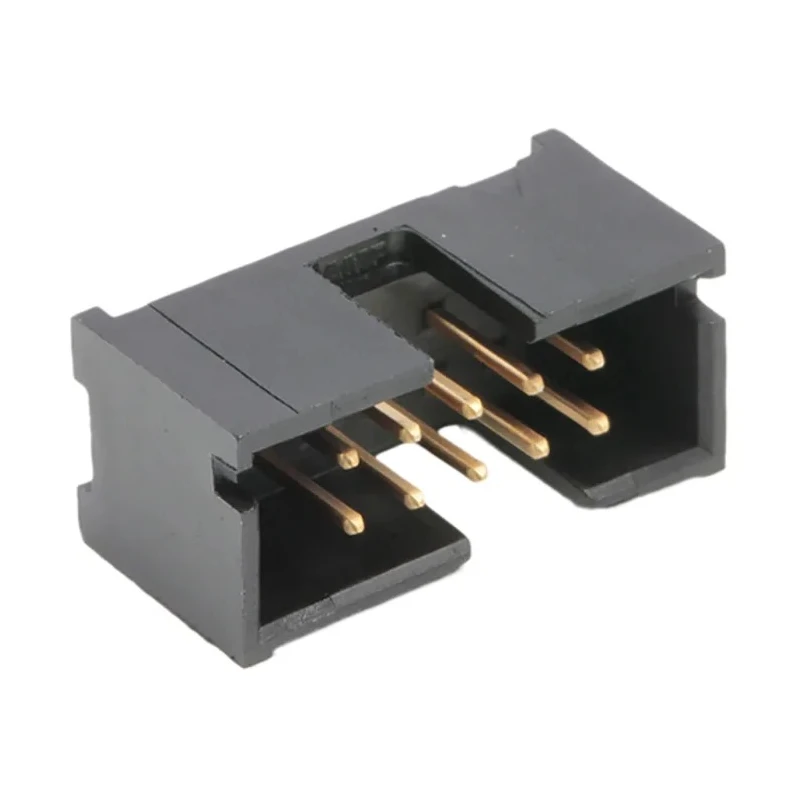

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header 10 Contacts 2.54 mm Pitch 2 Row Shrouded 5103309-1

TE Connectivity 5103309-1 AMP-LATCH Series Straight Through Hole PCB Header features 10 male contacts arranged in 2 rows with a 2.54 mm pitch, ensuring precise and reliable electrical connections for a wide range of electronic applications. This connector type is designed with a shrouded construction and a low profile to provide secure mating and protection against misalignment.

The housing is made from flame retardant 94V-0 thermoplastic, rated for industrial and commercial electronic environments. The contacts are constructed from copper alloy with gold plating, enhancing corrosion resistance and conductivity, suitable for up to 1 amp current. This PCB header utilizes through hole mounting with kinked solder tails to ensure robust mechanical and electrical attachment to printed circuit boards.

Operating temperature ranges from -55°C to 105°C, making it suitable for harsh environments found in industrial controls, medical devices, business equipment, networking hardware, and electrical testing equipment.

The AMP-LATCH design incorporates centre and dual polarization slots allowing accurate and secure mating with IDC ribbon cable connectors, preventing misconnection and enhancing system reliability. Board standoffs assist in removing excess flux during soldering processes.

Applications for this PCB header include use in PCs, industrial controls, appliances, and storage devices, providing versatile and dependable wire-to-board connectivity in complex electronic assemblies.

Features AMP-LATCH series for secure, dual polarization. Thermoplastic housing rated 94V-0 for flame retardance. Gold plated copper alloy contacts ensure excellent conductivity. Designed for through hole mounting with kinked solder tails for secure PCB attachment.

Operates reliably from -55°C up to 105°C temperature range. Low profile design with center and dual polarization slots for precise mating. Suitable for applications including PCs, medical and business equipment, networking and industrial controls.

Provides board standoffs to assist flux removal from PCB during soldering. Male contact gender and straight orientation for versatile PCB integration. Supports current rating of 1A ensuring stable electrical performance.
